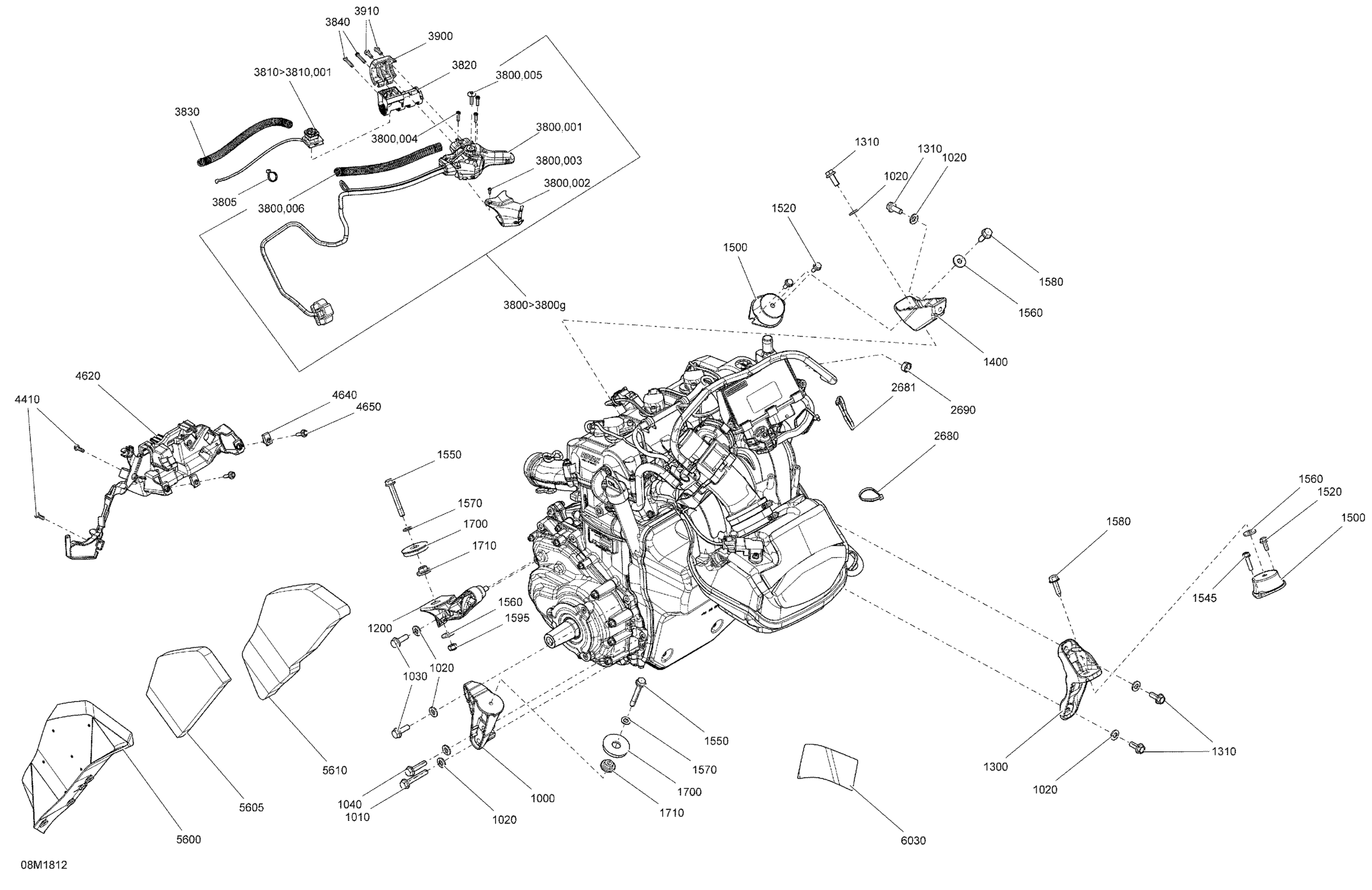

Ski-Doo GRAND TOURING 1200 4-TEC, 2018 Engine 1200 4-TEC Diagram

#

Description
Price

1000

Rear Support, PTO

512060591

$44.00

1010

Hex. Flange Screw M8 X 50, Scotch Grip

207585086

$4.15

1020

Conical Spring Washer M8

250200146

$0.83

1030

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

1040

Hex. Flange Screw M8 X 35

250000986

$1.74

1200

Front Support, PTO

512060593

$27.58

1210

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

1220

Conical Spring Washer M8

250200146

$0.83

1300

Rear Support, MAG

512060594

$29.07

1310

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

1320

Conical Spring Washer M8

250200146

$0.83

1400

Front Support, MAG

512060596

$29.07

1410

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

1420

Conical Spring Washer M8

250200146

$0.83

1500

Rubber Mount

512060729

$67.88

1520

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

1540

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

1545

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.00

1550

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$1.74

1560

Yellow, Washer

503183200

$2.91

1570

Flat Washer With Teflon 8 mm

250200008

$3.12

1580

Cone Screw, M8 X 30

250000257

$1.67

1595

Hex. Elastic Stop Nut M8

232581414

$0.47

1700

Stopper This part replaces 512060244.

512061202

$17.88

1710

Spacer

512060285

$17.13

2680

Tie-Rap 180 mm

414115200

$0.09

2681

Tie Wrap 368 mm

293750008

$0.85

2690

Crimp Clamp, 15.3-706R

293650047

$2.64

3800

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$270.12

3800.001

Cap

512060862

$11.22

3800.002

Handle Ass'y kit

415130047

$94.00

3800.003

Torx Screw M2.9 x 9.5

250000623

$3.01

3800.004

Torx Screw

250000671

$0.83

3800.005

Torx Screw M5 X 20

250000528

$1.74

3800.006

Protector Tube

515177716

$4.28

3805

Tie Wrap 142 mm

293750002

$0.88

3810

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

3810.001

Male Terminal

515175232

$1.45

3820

Switch Support

512061453

$8.13

3830

Protector Tube

515177716

$4.28

3840

Torx Screw #8-18

250000263

$0.99

3900

Front Housing

512060987

$8.09

3910

Torx Screw M5 X 14

250000632

$6.18

4410

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

4620

Module Support

512061012

$14.10

4640

Panel Nut M5 X 0.8

250000958

$3.48

4650

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.12

5600

Noise Shield

512060847

$14.10

5605

NOISE FOAM - Call your local BRP dealership

512061135

Unavailable

5610

Inner Acoustic Foam

512060958

$17.88

6030

Decal Checking Engine Oil

516007500

Unavailable

7000

Tie Wrap 368 mm

293750008

$0.85

7010

Tie-Rap 180 mm

414115200

$0.09
