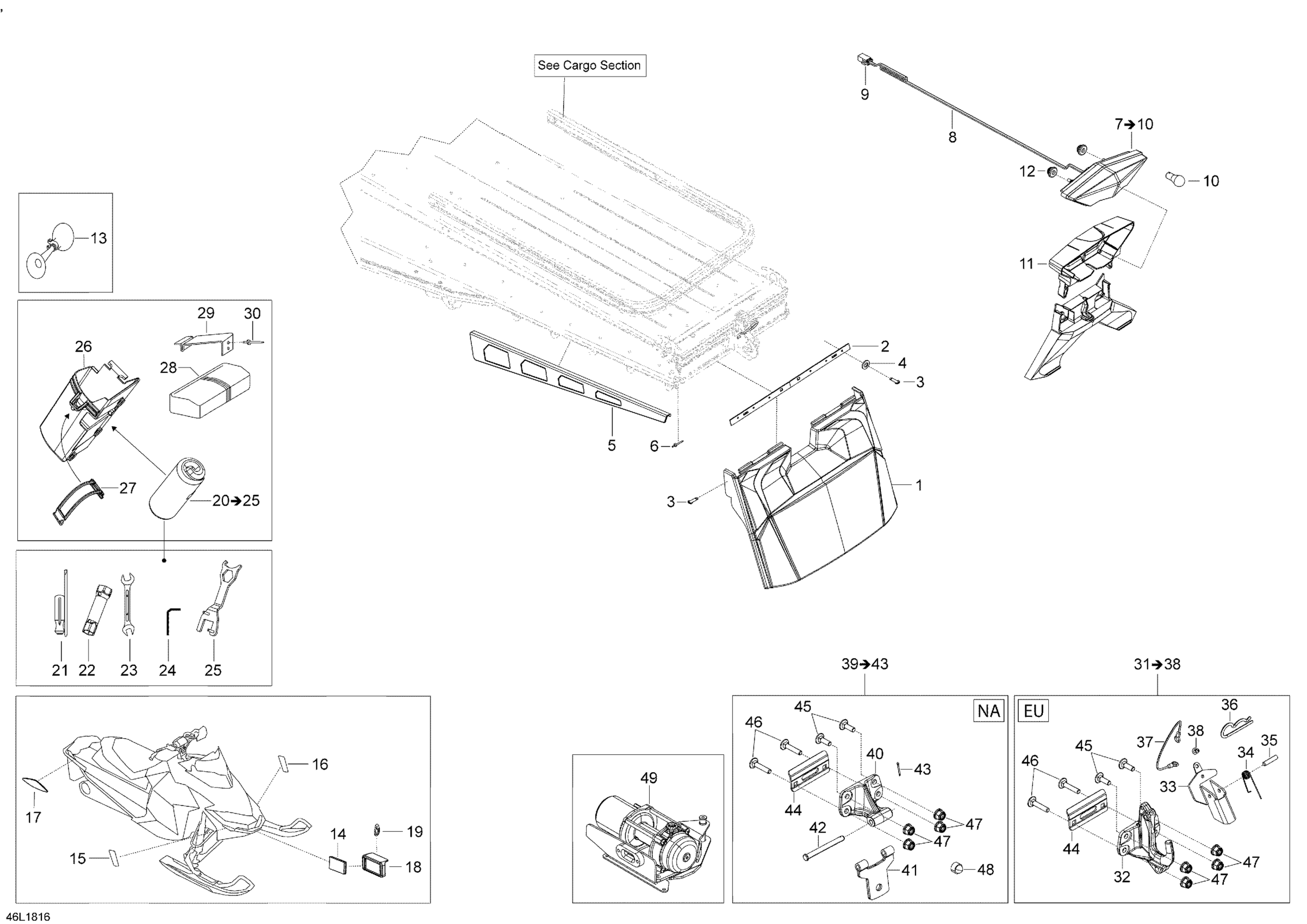

Ski-Doo EXPEDITION LE/SE 900 ACE, 2018 Utilities Expedition - 900 ACE Diagram

#

Description
Price

1

Snow Guard

520001406

$86.99

1

Black, Snow Guard Long

520001410

$109.99

2

Plate

520001021

$33.55

3

Forming Screw M5 x 16

250000676

$0.96

4

Washer M5

250200025

$0.70

5

RH Protector

520000693

$52.96

5

LH Protector

520000694

$52.96

6

Rivet Hucklok

293150163

$2.73

7

Rear Light | Includes 200 to 200a

520000848

$93.25

8

Rear Wiring Harness

520000849

$49.22

8.1

Wiring Harness Ass'y | Not Shown

520000677

$35.04

10

Bulb

520000758

$8.60

11

Rear Light Cover

511000764

$35.04

12

Stopper Rubber

705014429

$6.09

13

Horn

549011291

$34.30

14

Reflector (Bright)

21118

$26.09

15

Yellow, RH Reflector

520001600

$30.57

16

Yellow, LH Reflector

520001601

$30.57

17

Amber, Lateral Reflector

705002423

$12.88

17

Red, Lateral Reflector

705003412

$12.88

18

Deep Black, Reflector Support

520000871

$5.13

19

TIE RAP - Call your local BRP dealership

27120

Unavailable

20

Tools Kit | Includes 1400 to 1400b

520001593

$52.99

26

Tool Kit Rack

520000894

$14.99

27

Latch

520000528

$6.40

31

Hitch Ass'y | Includes 3600 to 3600f

520001774

$61.16

33

Locking Plate

520001775

Unavailable

35

Clevis Pin

520001810

Unavailable

36

Hair pin

41029

$4.15

38

Avex Rivet

390909100

$0.28

38.1

Washer

520001811

Unavailable

38.2

Cotter Pin

520001812

Unavailable

39

Hitch Ass'y | Includes 3600 to 3600a

520001398

$69.37

42

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

43

Cotter Pin

41031

$6.07

44

Plate

520000727

$32.81

45

Carriage Bolt, M8 X 25 | XXC

207782544

$1.51

46

Bolt Carriage M8 X 40

207784044

$1.06

47

Hex. Flange Elastic Nut M8

233281414

$1.31

48

Cover | Model-T3

28056

$5.36

50

Amber Reflector | Except Europe Model

705011222

$11.96

51

LH Reflector Mount | Package SE

520001744

Unavailable

51

RH Reflector Mount | Package SE

520001746

Unavailable

52

Socket Head Screw M8 X 20

205082044

$1.06

53

Hex. Flange Elastic Nut M8

233281414

$1.31

54

Cover | Model-T3

28056

$5.36

55

Elastic Flange Nut M5

233251494

$2.00

60

Support Tape

520001766

Unavailable
