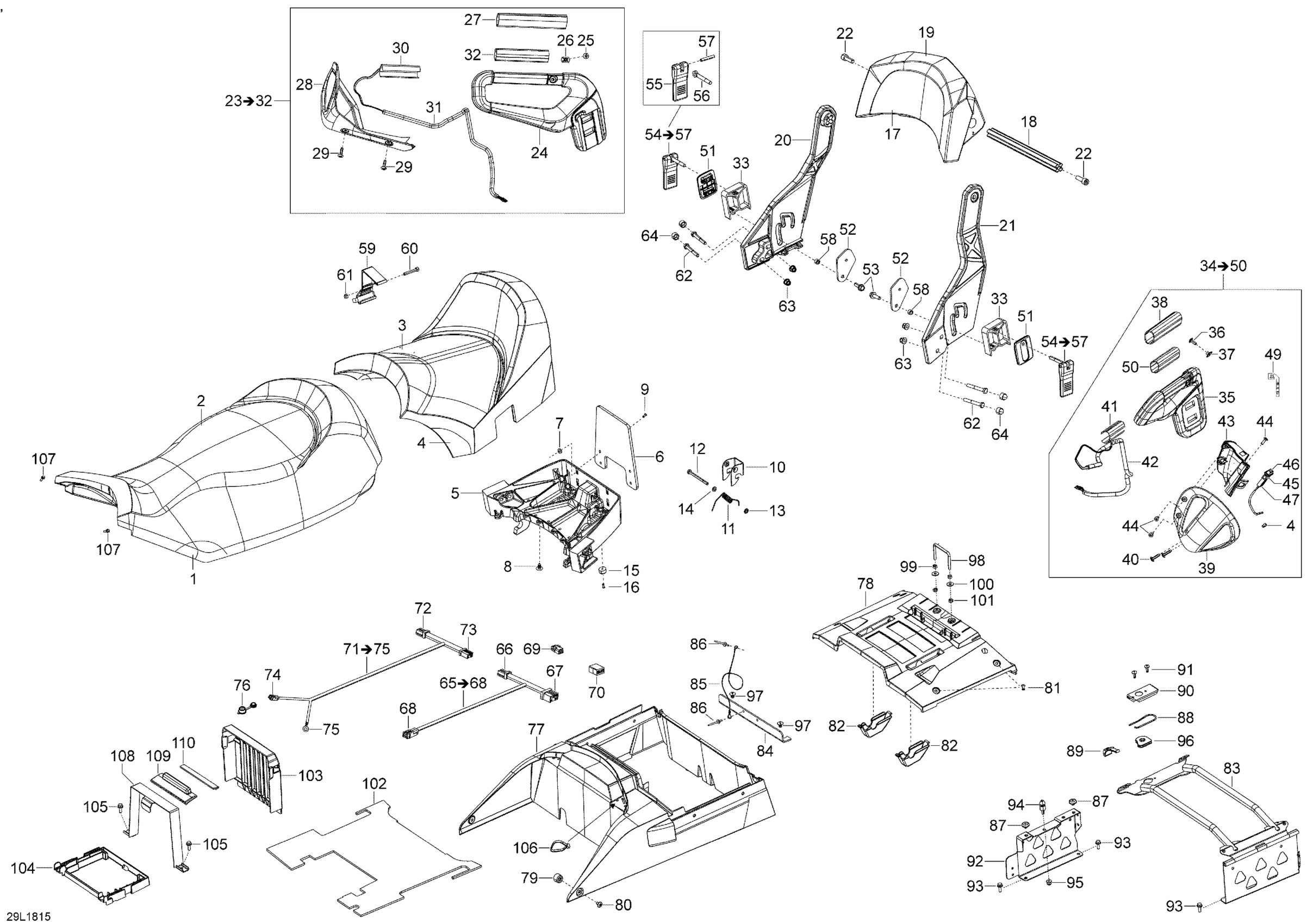

Ski-Doo 4- EXPEDITION LE/SE 900 ACE, 2018 09- Seat Diagram

#

Description
Price

1

Front Seat Foam

510005999

$449.99

2

Cover, front

510005724

$241.49

3

Cover rear

510005256

$176.99

4

Rear Seat Foam

510006094

$329.99

5

Seat Base

510004816

$95.99

6

Backrest Plate

510005330

$69.99

7

Flat Washer 6 mm

234062410

$0.77

8

Black, Dart

414644300

$0.98

9

Rivet | Model-T3

293150067

$2.89

10

Latch, Black

708000144

$11.99

11

Spring

708000369

$9.19

12

Hex. Screw M6 X 80

207068044

$4.12

13

Push Nut

732610072

$2.19

14

Flat Washer 6 mm

234061410

$1.36

15

Stopper Rubber

510006005

$5.59

16

Pop Rivet 1/8”

293150015

$0.40

17

Backrest Foam

510006205

$159.99

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Backrest Cover

510005259

$235.99

20

RH Arm

510005420

$72.99

21

LH Arm

510005419

$74.99

22

Forming Screw M10 x 25

250000553

$4.44

23

Not Available As Spare Part - Friction Washer

Unavailable

24

RH HANDLE - Call your local BRP dealership

510005865

Unavailable

25

Torx Truss Screw M6 X 16

250000721

$1.69

26

Nut Welded, M6

293100003

$9.12

27

Handle Grip

510004449

$12.49

28

RH Deflector

510004415

$27.99

29

Screw 25MM

250000961

$2.59

30

Heater

515176393

$63.99

31

Was 515175506 Tubing

219704426

$142.99

32

HANDLE REINFORFORCEMENT - Call your local BRP dealership

510004709

Unavailable

33

Adapter

510004939

$17.99

34

Not Available As Spare Part - Friction Washer

Unavailable

35

LH Handle

510005862

$126.99

36

Torx Truss Screw M6 X 16

250000721

$1.69

37

Nut Welded, M6

293100003

$9.12

38

Handle Grip

510004449

$12.49

39

LH Deflector

510004416

$27.99

40

Screw 25MM

250000961

$2.59

41

Heater

515176393

$63.99

42

Was 515175506 Tubing

219704426

$142.99

43

Switch Housing

510004566

$13.18

44

Torx Screw K50 X 16

250000720

$1.69

45

Rocker Switch

510004413

$8.79

46

Switch Protector

510004414

$7.99

47

LH Handle Harness

515176241

$29.99

48

Tie-Rap 180 mm

414115200

$0.11

49

Handle Heater Decal

516002835

$13.49

50

HANDLE REINFORFORCEMENT - Call your local BRP dealership

510004709

Unavailable

51

Passenger Handle Trim

510006602

$13.99

52

Counter Plate

510004990

$31.99

53

Hex Forming Screw DIN.7500D

250000376

$7.51

54

Lock Ass'y | Includes 54 to 57

510004992

$36.99

55

Lock

5243419

$9.69

56

Screw

510004993

$13.34

57

Pin

414821400

$7.55

58

Sleeve

510005507

$21.99

59

Security Lock

510005139

$58.99

60

SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership

205065044

Unavailable

61

Elastic Stop Nut M6

232561434

$1.99

62

Hex. Flange Screw M8 x 60

207686044

$3.07

63

Hex. Flange Elastic Nut M8

233281414

$1.47

64

Cover | Model-T3

28056

$5.89

65

Seat Wiring Harness This part replaces 515177209.

515179606

$95.99

66

Female Housing, 3 Circuits

515175495

$16.18

66

Female Terminal

515175231

$4.39

67

Female Terminal Housing, 8 Circuits

515175819

$7.62

67

Female Terminal

515175231

$4.39

68

Not Available As Spare Part - Friction Washer

Unavailable

69

Male Housing, 3 Circuits

515175494

$16.18

70

Male Terminal Housing, 8 Circuits

515175817

$8.79

71

Seat Wiring Harness This part replaces 515177210.

515179607

$99.99

72

Female Housing, 3 Circuits

515175495

$16.18

72

Female Terminal

515175231

$4.39

73

Male Housing, 3 Circuits

515175494

$16.18

73

Male Terminal

515175232

$1.58

74

Not Available As Spare Part - Friction Washer

Unavailable

75

OPEN BARREL - Call your local BRP dealership

515175172

Unavailable

76

Cap

572103300

$10.49

77

Storage Box

510006243

$234.99

78

Storage Box Cover

510006244

$38.99

79

Bushing

510005147

$12.99

80

Torx Truss Screw M6 x 12 | Model-T3

250000675

$0.98

81

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

82

Cover

510004999

$18.99

83

Lock tube

510005714

$429.99

84

Cable Support Plate

510005156

$19.49

85

Seat Retainer Cable

293750070

$12.99

86

Pop Rivet 3/16"

390402200

$0.35

87

Plug

605452114

$9.19

88

Latch Spring

269700017

$9.19

89

Puller

510005072

$21.99

90

Lock Pin Cover

510005698

$20.49

91

Forming Screw M5 x 16

250000676

$1.01

92

Locking Plate

510005845

$67.99

93

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

94

LOCK PIN - Call your local BRP dealership

605452035

$24.99

95

Elastic Flange Nut M6 X 1.0

233261416

$2.11

96

Lock Pin Guide

510005044

$15.80

97

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

98

FASTENER PIN - Call your local BRP dealership

510004876

Unavailable

99

Hex. Nut M6

250000135

$0.51

100

Washer

20117

$6.39

101

Elastic Stop Nut M6

232561434

$1.99

102

Foam

510005043

$69.99

103

Battery Cover

510005079

$19.49

104

Battery Support

515176804

$78.99

105

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

106

Tie-Rap

605627000

$3.17

107

Forming Screw M5 x 16

250000676

$1.01

108

Battery Strap

510005143

$78.99

108

Battery Strap | 30 ampere/hour

510005250

$82.99

109

Strap Cover

510005146

$28.99

110

Strap Cover | 30 ampere/hour

605356094

$10.99
