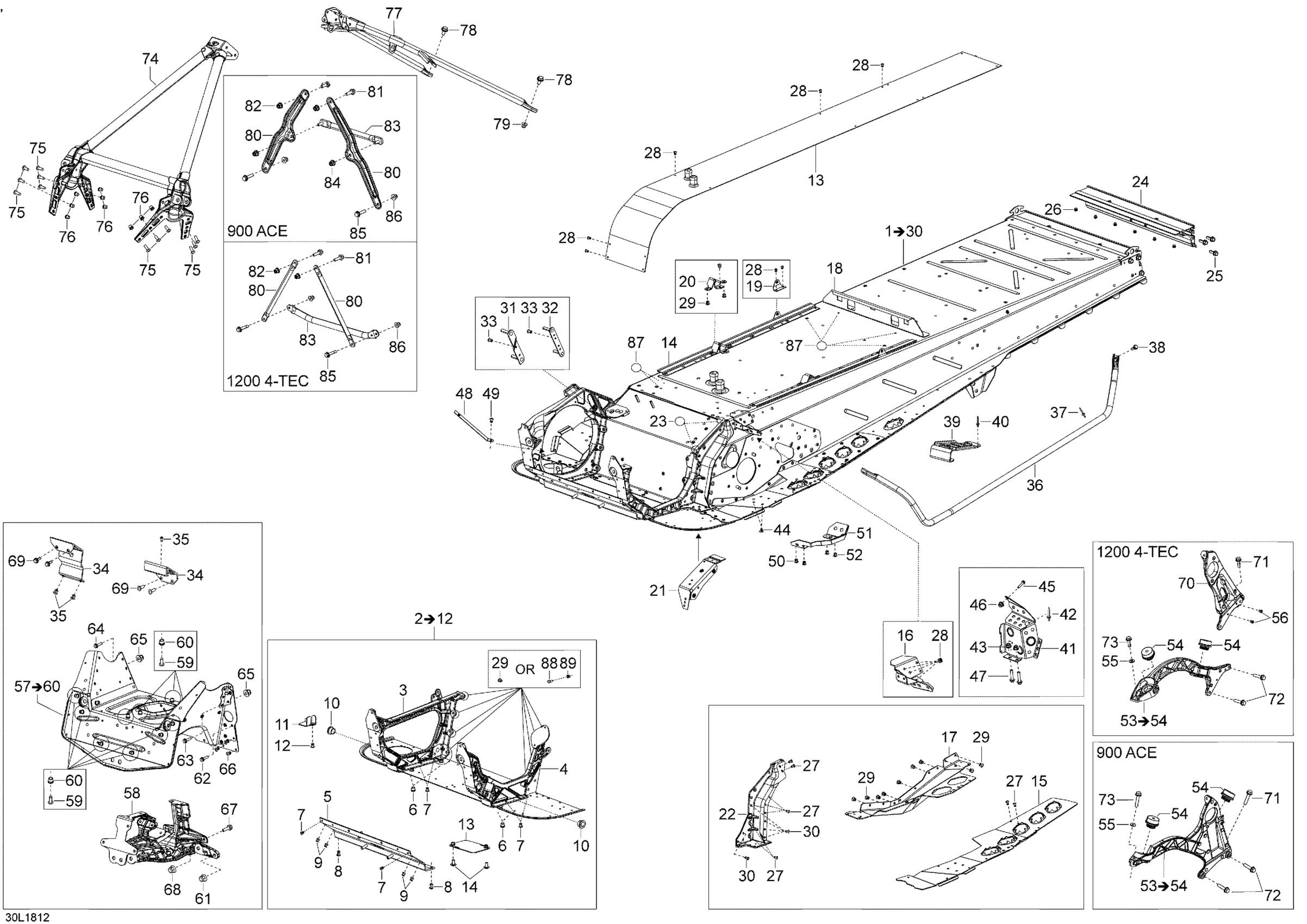

Ski-Doo EXPEDITION LE/SE 900 ACE, 2018 Frame Expedition - 900 ACE Diagram

#

Description
Price

1

Black, Frame | Includes 10 to 10ay

518329696

$4,849.97

2

Module E | Includes 10a to 10n

518329825

$855.94

2.1

Bottom Plate

518329826

Unavailable

3

RH Side Member

518326328

$252.21

4

LH Side Member

518326330

$252.21

5

Front Member

518326198

$58.18

6

Clinch Nut Hexsert M8

605636002

$7.09

7

Avex Rivet

390909100

$0.28

8

Hemlock Rivet 6.5 mm

293150120

$7.01

9

Hemlock Rivet, 6.5 mm

293150119

$3.88

10

Leg Bushing

505072690

$5.75

11

Muffler Support

518327983

$17.88

12

Rivet Hucklok

293150163

$2.73

13

Tunnel Radiator | Includes 10p to 10q

509000976

$640.27

13.1

Rear Arm Bracket

518329083

$14.43

13.2

Rear Arm Bracket

518329083

$14.43

14

Fastening rail

518326107

$14.90

15

LH Footrest

518328821

$81.31

15

RH Footrest

518328822

$81.31

16

Fastening Bracket

605355235

Unavailable

17

LH Drive Axle Cover

518328016

$186.54

17

RH Drive Axle Cover

518328017

$186.54

18

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

Unavailable

19

Seat Box Bracket

518329164

Unavailable

20

LH Support Tube Bracket

518329109

$43.25

20

RH Support Tube Bracket

518329110

$43.25

21

Clinch Nut plate

518326430

$44.75

22

LH Frame Corner

518325524

$50.72

22

RH Frame Corner

518328024

$50.72

23

Adhesive Patch

518325560

$4.21

24

Rear Profile

518328748

$211.16

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

27

Avex Rivet

390909100

$0.28

28

Avex Rivet

390909200

$0.28

29

Hemlock Rivet, 6.5 mm

293150119

$3.88

30

Rivet

293150183

$2.00

31

Gearbox Front Plate

518326123

Unavailable

32

Gearbox Rear Plate

518326124

$14.81

33

Pop Rivet 3/16"

390402200

$0.30

34

Engine Support

518326178

$61.16

35

Hemlock Rivet, 6.4 mm

293150174

$6.24

36

LH Footboard Support Tube

518326963

$123.10

37

Avex Rivet

390909100

$0.28

36

RH Footboard Support Tube

518326964

$123.10

38

Hex. Flange Screw M6 x 20

207662056

$0.96

39

Black Rear Footrest

520001208

$17.88

40

Rivet 3/16"

293150102

$0.69

41

Black, LH Toe Hook | Package LE

518327374

$36.54

41

Toe hold L.H. | Package SE

518327375

Unavailable

41

Black, LH Toe Hook

518328569

$58.99

42

Avex Rivet

390909200

$0.28

43

Clinch Nut M6 Hexsert

605636003

$4.00

44

Black, Dart

414644300

$0.90

44

Clinch Nut M6 Hexsert

605636003

$4.00

41

Black, RH Toe Hook

518328571

Unavailable

41

Black RH Toe Hook

518327376

$38.78

45

Hex. Flange Screw M6 x 20

207662056

$0.96

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

47

Torx Head Screw M6 X 16

250000717

$2.00

48

Spring Bracket

514054846

$4.21

49

Avex Rivet

390909200

$0.28

50

Avex Rivet

390909200

$0.28

53

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$252.21

54

Vibration Damper

512061516

$55.94

55

Conical Spring Washer M8

234281474

$1.43

57

Cross Member | Includes 300 to 300e

518328391

$729.99

57

Module S | Package SE

518328395

$549.22

58

Front Suspension Support

518327487

$259.67

59

Hex. Screw M6 X 14

207161444

$0.55

61

Hex. Flange Elastic Nut M8

233281414

$1.31

62

Hexagonal Head Screw

210262050

$2.00

63

Hex. Flange Screw M6 X 25

207662544

$0.61

64

Hex. Flange Screw M6 X 25

207662544

$0.61

65

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

66

Rivet Hucklok

293150163

$2.73

69

Hex. Flange Screw M6 X 16

207661644

$0.70

71

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

72

Hex. Flange Screw M8 X 35

250000986

$2.00

73

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.22

74

Front Member

518326975

$344.75

77

Upper Support Tube

518329105

$184.30

78

Hex. Screw M8 X 20

207182044

$0.70

79

Hex. Elastic Stop Nut M8

232581414

$0.54

80

Upper Column Support

518326848

$12.67

81

Hex. Flange Screw M6 x 20

207662056

$0.96

82

Elastic Flange Nut M6 X 1.0

233261416

$2.00

83

Center Column Support

518326355

$20.12

84

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

85

Hex. Flange Screw M6 X 25

207662556

$4.15

86

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

87

Adhesive Patch

518325560

$4.21
