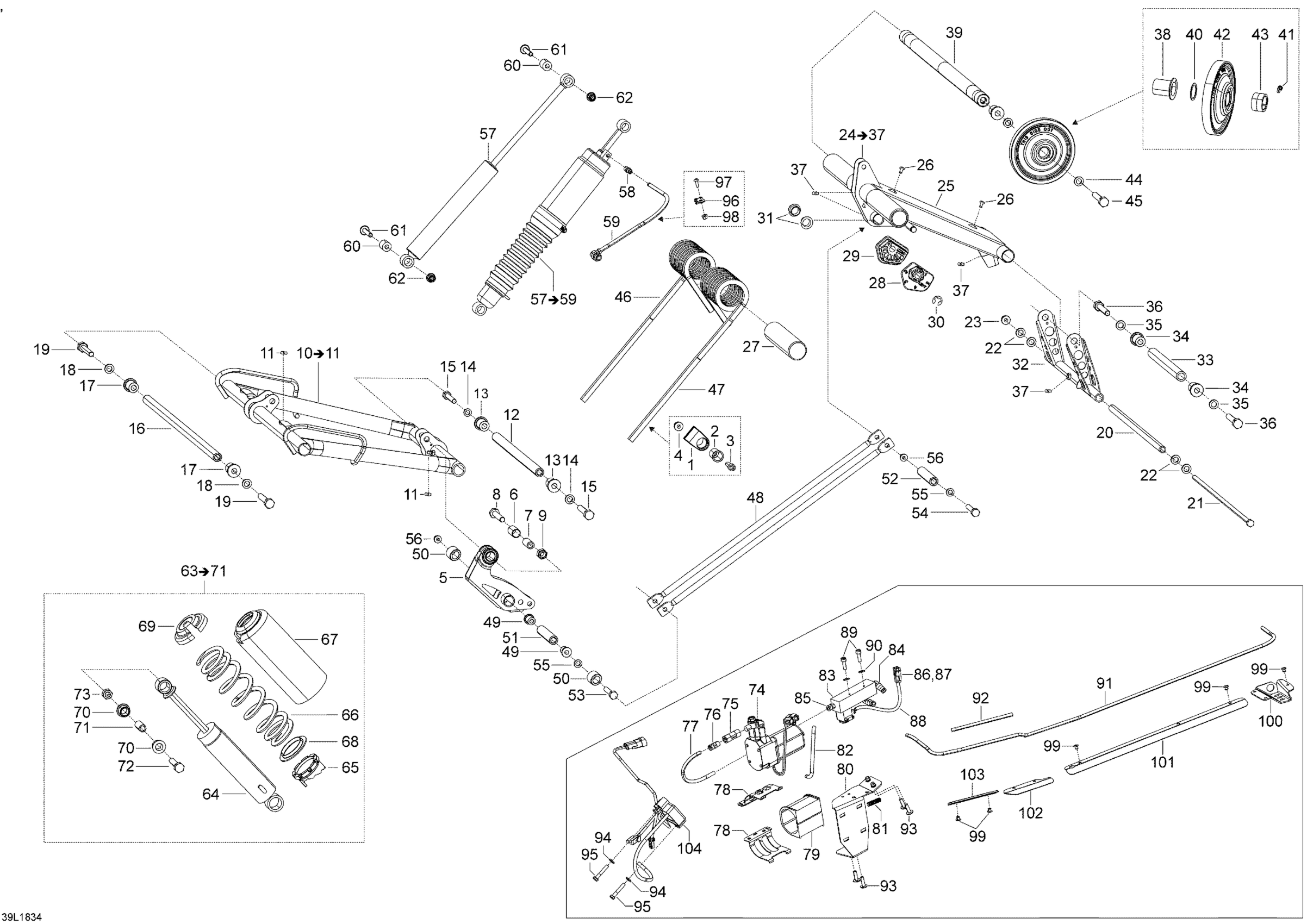

Ski-Doo 4- EXPEDITION LE/SE 900 ACE, 2018 08- Rear Suspension EXPEDITION - 900 ACE & 1200 4-TEC- Upper Diagram

#

Description
Price

1

Spring Support Kit

861805547

$10.49

2

Spring Support Kit

861805547

$10.49

3

Socket Head Screw M8 X 25

205082544

$1.15

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Rocker

503192211

$83.99

6

Bushing

503193037

$16.18

7

Bushing | Includes 240d to 240d1

503189282

$4.34

8

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

9

Elastic Locking Nut M10 X 1.5

233601416

$1.69

10

Front Arm Ass'y | Includes 1400 to 1400a

503193274

$222.49

11

Grease Fitting

408200700

$3.49

12

Lower Shaft

503191390

$28.99

13

Bushing

503189324

$14.15

14

Washer

503192496

$0.77

15

Hex. Screw S.Grip M10 X 55

250000605

$8.11

16

Upper Shaft

503191391

$36.99

17

Bushing

503189324

$14.15

18

Washer

503189564

$0.74

19

Hex. Screw S.Grip M10 X 55

250000605

$8.11

20

Axle Pivot

503191396

$80.49

21

Bolt 369MM

503195156

$25.99

22

Washer

503189157

$3.28

23

Hex. Flange Elastic Nut M8

233281414

$1.47

24

Rear Arm Ass'y | Includes 24 To 37

503191709

Unavailable

25

Rear Arm

503191398

$312.49

26

Black, Dart

414644300

$0.98

27

Not Available As Spare Part - Friction Washer

Unavailable

28

LH Cam Adjuster

503191565

$16.49

29

RH Cam Adjuster

503191566

$16.49

30

E-Circlip

293370013

$0.65

31

Swivel Bushing

503191555

$7.83

32

Pivot Arm | Includes 3000j to 3000j3

503195154

$104.99

33

Lower Shaft

503192330

$45.99

34

Cushion

503191640

$5.93

35

Washer | 7415/7416. 7417/7418.

503189148

$2.85

36

Socket Head Screw M12 X 35

205523554

$4.44

37

Grease Fitting

408200700

$3.49

38

Cushion

503191451

$14.15

39

Upper Shaft

503191405

$94.99

40

Washer

503190328

$12.65

41

Socket Set Screw M6 X 8

206260844

$1.48

42

Wheel 165 | Includes 3070 to 3070a

503190803

$51.99

43

Retaining Ring

503194366

$39.99

44

Washer

503192491

$4.54

45

Socket Screw M12 X 35

250000484

$7.51

46

Black RH Square Spring

503192377

$111.49

47

Black LH Square Spring

503192378

$111.49

48

Link Rod

503191765

$18.49

48

Link Rod

503193026

$28.99

49

Swivel Bushing

503191555

$7.83

50

Spacer

503190114

$19.99

51

Axle Bar (Long)

503190643

$17.39

51

Bar Axle (Short)

503190113

$38.99

52

Axle Bar (Long)

503190643

$17.39

53

Hex. Screw M8 X 90

207089044

$3.48

53

Hex. Screw M8 X 130

230083044

$7.41

54

Hex. Screw M8 X 90

207089044

$3.48

55

Washer

503189157

$3.28

56

Hex. Flange Elastic Nut M8

233281414

$1.47

57

Rear Shock

503193520

$248.99

57

Rear Shock Ass'y | Includes 57 to 59

503193000

$716.99

58

Male Pneumatic Connector

503191939

$44.49

59

Pneumatic Hose Ass'y

503192649

$134.99

60

Bushing

414936000

$13.99

61

Hex. Flange Screw M8 X 40

207684044

$1.48

62

Hex. Flange Elastic Nut M8

233281414

$1.47

63

Not Available As Spare Part - Friction Washer

Unavailable

64

Center Shock

503192991

$248.99

64

Center Shock

503192266

$164.49

65

Adjustment Cam

505073625

$12.99

66

Black, Spring

503189686

$67.99

67

Protector

503193663

$37.99

68

Spring Guide

503191872

$2.29

69

Spring Stopper

503189912

$10.99

69

Spring Stopper

706200881

$12.99

70

Urethane Bushing

503189117

$8.19

71

Bushing | Includes 240d to 240d1

503189282

$4.34

72

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

73

Elastic Locking Nut M10 X 1.5

233601416

$1.69

74

Compressor

706001349

$469.99

75

Check Valve

706000940

$37.99

76

Connector

706000869

$34.99

77

Hose 4.32Mm 3000Mm Long

219704415

$55.99

78

Compressor Bracket

503193103

$4.69

79

Compressor Isolator

706000631

$13.99

80

SUPPORT - Call your local BRP dealership

503193484

Unavailable

81

TUBING 6 MM - Call your local BRP dealership

515175442

Unavailable

82

Tubing 6 Mm 3000Mm Long

219704425

$13.75

83

Air manifold Ass'y

503193009

$339.99

84

Elbow 90°

706000872

$28.99

85

Connector

706000869

$34.99

86

Male Terminal

515175232

$1.58

87

Male Terminal Housing, 2 Circuits

515175654

$9.12

88

Tubing 6 Mm 3000Mm Long

219704425

$13.75

89

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

90

Flat Washer 6 mm

234061410

$1.36

91

Tube

503193034

$18.73

92

Tubing 6 Mm 3000Mm Long

219704425

$13.75

93

Torx Screw M6 X 20

250000722

$1.68

94

Flat Washer 6 mm

234061410

$1.36

95

Hex. Flange Screw M6 X 35

207063544

$1.37

96

Clamp

503193393

$8.32

97

Screw-Torx Button Head M5 X 14

235551454

$7.51

98

Flange Elastic Nut M5

233251434

$2.00

99

Rivet 3/16"

293150102

$0.70

100

BRACKET - Call your local BRP dealership

503193004

Unavailable

101

Hose Protector

503193006

$12.99

102

Hose Protector

503193007

$11.49

103

HOSE PROTECTOR PAINTED - Call your local BRP dealership

503193011

Unavailable

104

Compressor Module | With Air Suspension

515177125

$539.99
