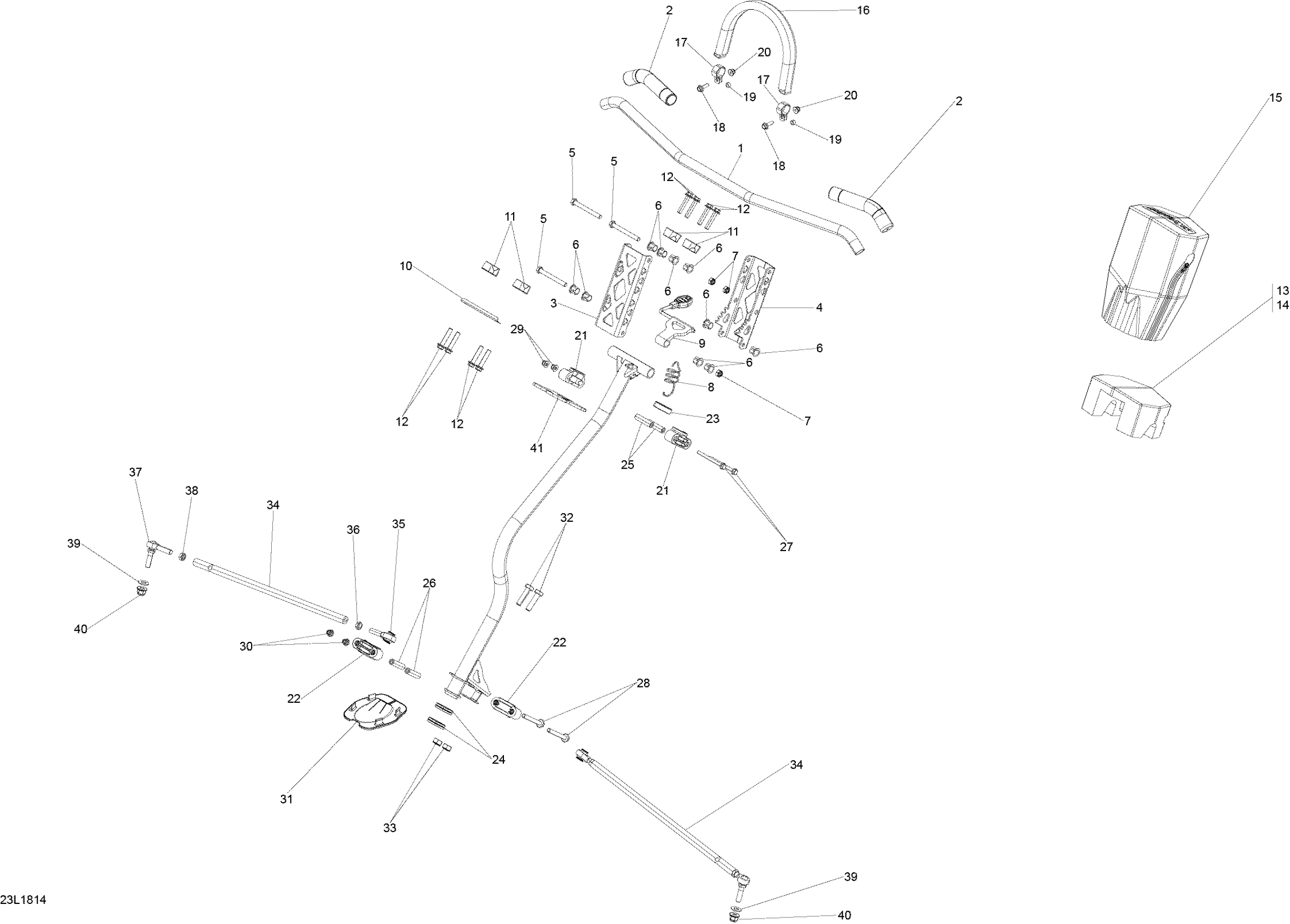

Ski-Doo EXPEDITION LE/SE 900 ACE, 2018 Steering Diagram

#

Description
Price

1

Handle Bar

506152722

$145.35

2

Grip | WAKE This part replaces M5340464.

506152483

$9.85

3

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$86.99

4

Tilt Steering | Package SE

506152532

$269.20

5

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

6

Cushion

506152520

$12.37

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Spring | Package SE

506152184

$8.74

9

Handle | Package SE

506152414

$109.97

10

Limiter Plate | Package SE

506152415

$83.82

11

Steering Support | Includes 40 to 40a

506152751

$10.09

12

Hex. Flange Screw M8 x 40

250000285

$0.77

13

Deep Black, Steering Pad

506152541

$42.28

14

Foam | Package SE

506152761

$37.66

15

Steering Cover | Package SE

506152381

$154.99

16

Strap Ass'y | Package XMR

506152115

$43.05

17

Black Support Plate

506152536

$8.60

18

Hex. Flange Screw M6 X 20

207662054

$0.83

19

Bushing | Package XMR

506152156

$5.35

20

Hex. Flange Elastic Nut M6

233261494

$1.26

21

Upper Half-Housing

506152508

$7.40

22

Lower Half-Housing

506152217

$5.57

23

Upper Anti-Vibration Gasket

506152509

$4.52

24

Lower Vibration Ring

506152518

$4.52

25

Housing Bushing

506152297

$10.23

26

Housing Bushing

506152297

$10.23

27

Hex. Flange Screw M6 X 70

207667056

$3.61

28

Hex. Flange Screw M6 X 70

207667056

$3.61

29

Elastic Flange Nut M6 X 1.0

233261416

$1.74

30

Elastic Flange Nut M6 X 1.0

233261416

$1.74

31

Plate

506152163

$10.23

32

Hex. Screw M10 X 40

207004044

$4.65

33

Elastic Stop Nut M10

232500416

$1.56

34

Tie-Rod

506152498

$36.89

35

LH Thread Ball Joint

506152081

$39.97

36

LH Threaded Hex. Jam Nut M10

250100016

$0.72

37

RH Threaded Ball Joint

506152684

$42.28

38

RH Threaded Hex. Jam Nut M10

732610010

$0.72

39

Washer

506152582

$4.42

40

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

41

Cushion

506152404

$25.35

42

Steering Column

506152964

Unavailable
