Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417224091

$309.99

3

Flange Slide Ass'y

417224044

$294.99

6

Ramp 748 Ass'y | Europe - Includes journal Bearing This part replaces 417224035.

417224228

$41.49

6

Ramp 740 | North America

417223906

$38.99

8

Stopper Washer

417223660

$3.17

9

Ramp Axle

417223694

$11.05

10

Elastic Stop Nut M5

232551414

$0.87

11

Spring Cover Ass'y

417223650

$44.99

14

Seat Spring

417223752

$15.27

15

Spring (Red/Orange) | Europe

417223749

$17.39

15

Clutch Spring

417223745

$17.39

16

Torx Screw M6 X 30

250000580

$6.08

17

Governor Cup Ass'y

417223865

$274.99

18

Roller

417223767

$11.59

19

Roller Axle

417223257

$6.99

20

O-Ring

293300185

$0.98

21

Slider Shoe

417223919

$6.83

22

Conical Spring Washer M14

250200144

$4.44

23

Pulley Drive Bolt

417300432

$41.49

24

Decal English

516005503

Unavailable

26

Fixed Flange Ass'y

417127433

$629.99

31

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$159.99

33

Cam Ass'y

417127411

$159.49

36

Release Spring

417127467

$46.49

38

Calibration Ass'y

415129604

$21.49

39

Socket Screw M5 X 25

205052544

$1.68

40

Flat Washer M5

234051410

$0.53

41

Elastic Stop Nut M5

232551414

$0.87

42

Washer

417127155

$8.26

43

Strength Washer

517302322

$12.63

45

Hex. Cap Screw M8 X 80

207588044

$3.06

46

Spacer

417300252

$5.49

46

Spacer

417300252

$5.49

47

Spacer

417300265

$2.29

48

Shim

504112000

$8.59

49

Drive Belt

417300551

$179.99

50

Warning Decal | Europe

516003919

$8.09

51

Belt Guard

417300382

$90.99

52

Security Label, Belt Guard

516006900

Unavailable

53

Reinforcement

417300380

$7.29

54

Avex Rivet

390909200

$0.30

55

Guide

417300381

$11.99

56

Side Protector

417300356

$14.76

57

Pop Rivet 3/16"

293150103

$0.55

58

Belt Guard Bracket | Except Package SWT

417300363

$14.49

58

Belt Guard Bracket | Package SWT

417300413

$9.09

59

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

60

Belt Guard Bracket

417300364

$29.99

61

Brake Hose Cover | Except Package SWT

518325626

$29.99

61

Brake Hose Cover | Package SWT

518327035

$13.99

62

Rivet Hucklok

293150163

$2.99

63

Hair Pin

114045200

$11.11

64

Air Duct | North America

417300468

$49.99

64.1

Clinch Nut M6 Hexsert

605636003

$4.23

65

Torx Screw M6 X 20

250000722

$1.68

65

Hemlock Rivet, 6.5 mm

293150096

$3.27

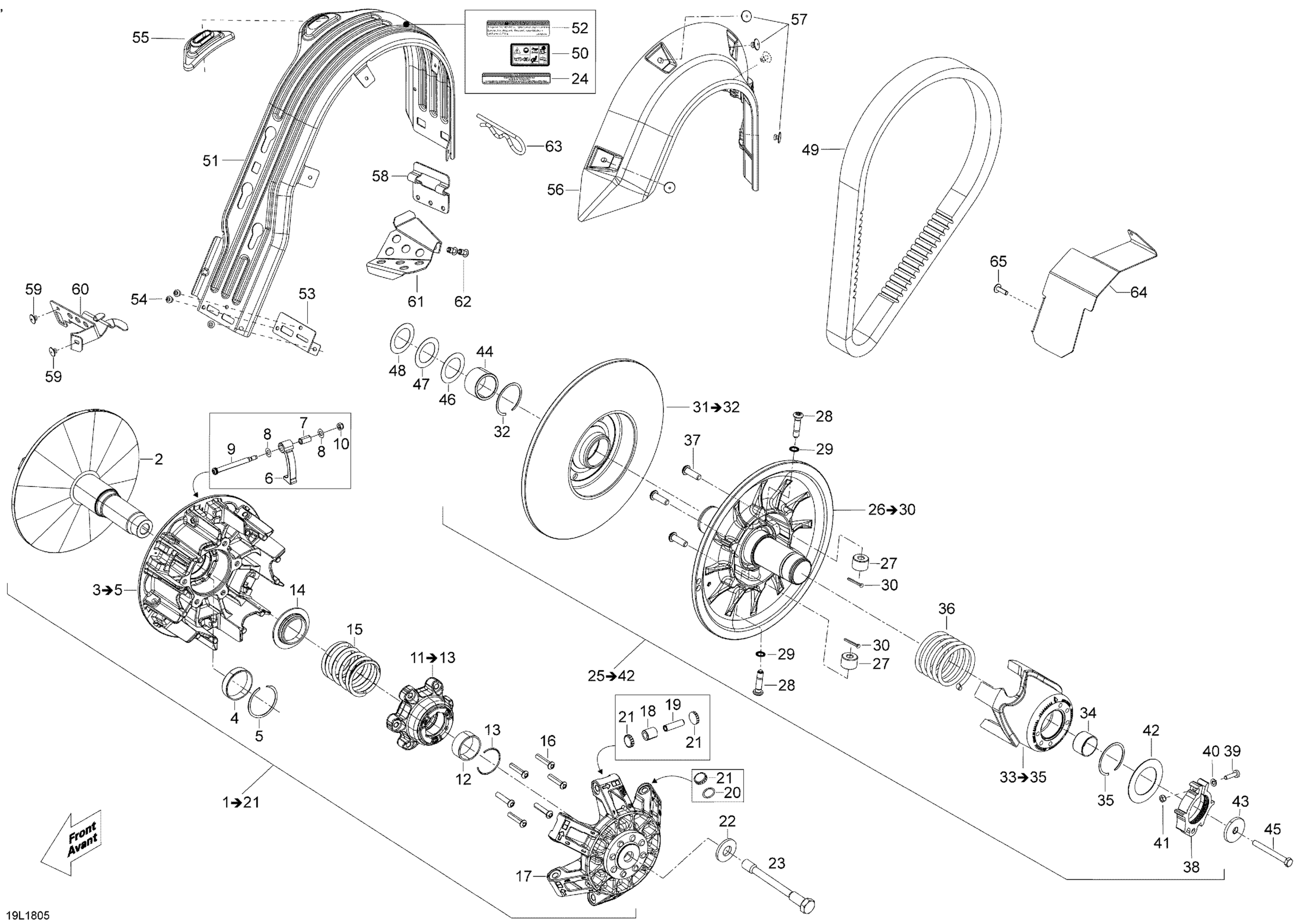

Ski-Doo 4- EXPEDITION LE/SE 900 ACE, 2018 05- Pulley Expedition - 900 ACE Diagram

Not Available As Spare Part - Friction Washer

Fixed Flange Ass'y

Flange Slide Ass'y

Ramp 748 Ass'y | Europe - Includes journal Bearing This part replaces 417224035.

Ramp 740 | North America

Stopper Washer

Ramp Axle

Elastic Stop Nut M5

Spring Cover Ass'y

Seat Spring

Spring (Red/Orange) | Europe

Clutch Spring

Torx Screw M6 X 30

Governor Cup Ass'y

Roller

Roller Axle

O-Ring

Slider Shoe

Conical Spring Washer M14

Pulley Drive Bolt

Decal English

Fixed Flange Ass'y

Slider Flange Ass'y | Includes 100b to 100b3

Cam Ass'y

Release Spring

Calibration Ass'y

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Washer

Strength Washer

Hex. Cap Screw M8 X 80

Spacer

Spacer

Spacer

Shim

Drive Belt

Warning Decal | Europe

Belt Guard

Security Label, Belt Guard

Reinforcement

Avex Rivet

Guide

Side Protector

Pop Rivet 3/16"

Belt Guard Bracket | Except Package SWT

Belt Guard Bracket | Package SWT

Pop Rivet 3/16" | DS 650 X

Belt Guard Bracket

Brake Hose Cover | Except Package SWT

Brake Hose Cover | Package SWT

Rivet Hucklok

Hair Pin

Air Duct | North America

Clinch Nut M6 Hexsert

Torx Screw M6 X 20

Hemlock Rivet, 6.5 mm
