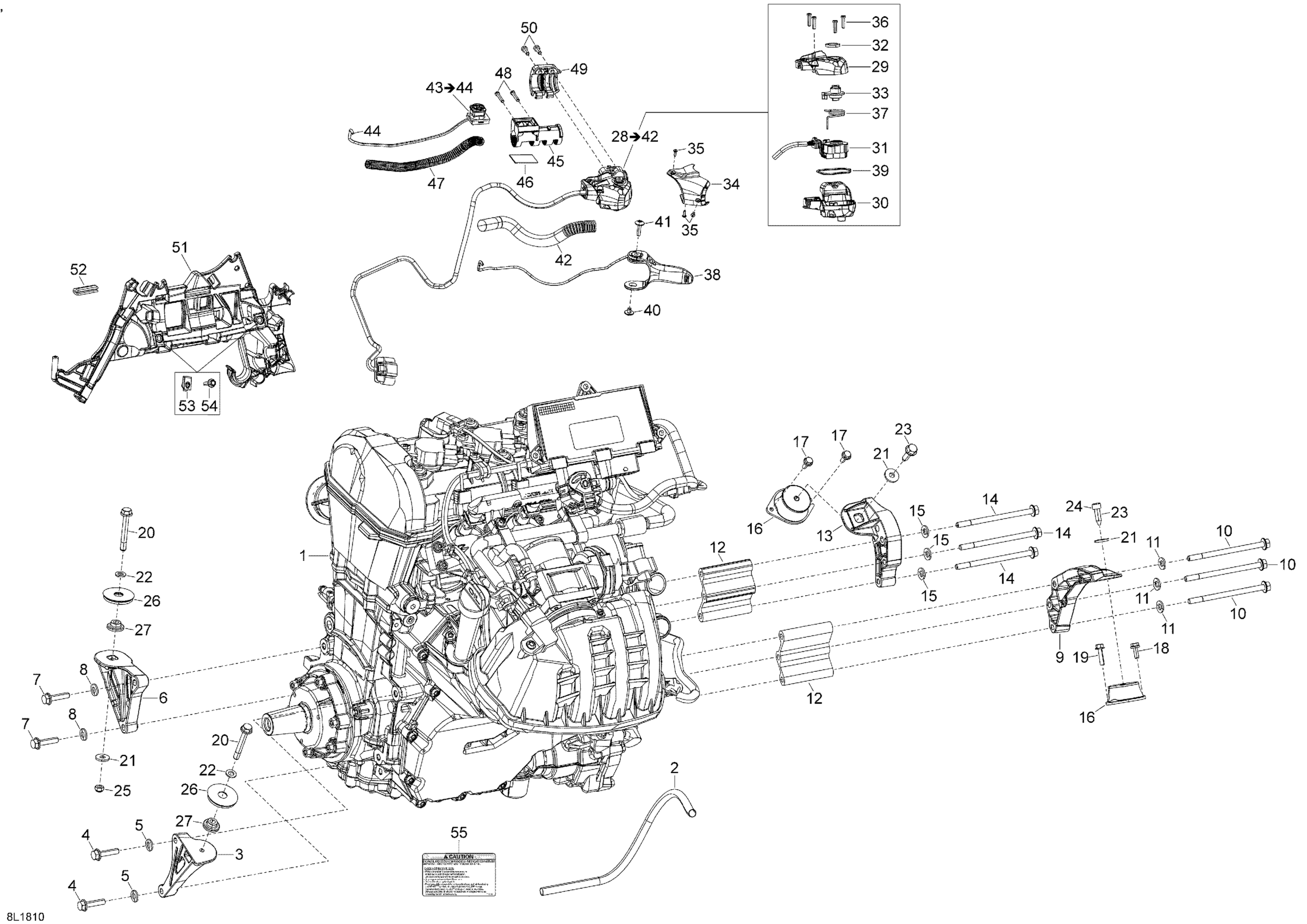

Ski-Doo 4- EXPEDITION LE/SE 900 ACE, 2018 01- Engine Expedition - 900 ACE Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Protector Tube

512061067

$23.49

3

Rear Support PTO

512061139

$24.99

4

Hex. Flange Screw M8 X 35

250000986

$2.11

5

Conical Spring Washer M8

234281474

$1.48

6

Front Support PTO

512061140

$20.99

7

Hex. Flange Screw M8 X 35

250000986

$2.11

8

Conical Spring Washer M8

234281474

$1.48

9

Rear Support MAG

512061142

$28.99

10

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$7.20

11

Conical Spring Washer M8

250200157

$2.11

13

Front Support MAG

512061141

$21.99

14

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$7.20

15

Conical Spring Washer M8

250200157

$2.11

16

Rubber Mount

512060729

$65.99

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

18

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

19

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.11

20

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.11

21

Yellow, Washer

503183200

$3.19

22

Flat Washer With Teflon 8 mm

250200008

$3.80

23

Cone Screw, M8 X 30

250000257

$1.89

24

Cone Screw, M8 X 25

250000639

$12.49

25

Hex. Elastic Stop Nut M8

232581414

$0.56

26

Engine Stopper

512061536

$21.99

27

Spacer

512060285

$19.99

28

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$339.99

29

Handle Ass'y kit

415130047

$104.99

30

Cap

512060862

$13.49

31

Torx Screw M2.9 x 9.5

250000623

$3.17

32

Torx Screw

250000671

$1.01

33

Screw

512060961

$11.60

34

Torx Screw M5 X 20

250000528

$2.11

43

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

45

Switch Support

512061453

$9.28

46

Friction Tape

294000973

$11.49

47

Protector Tube

515177946

$4.59

48

Torx Screw #8-18

250000263

$1.04

49

Front Housing

512060987

$8.57

50

Torx Screw M5 X 14

250000632

$7.51

51

Module Support

512060994

$16.33

52

Trim 1000Mm Long

219704354

$15.99

53

Panel Nut M5 X 0.8

250000958

$4.23

54

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

55

Caution Decal, Oil Level

516005521

Unavailable

70

Tie-Rap 180 mm

414115200

$0.11

71

Tie Wrap 368 mm

293750008

$1.04

72

Tie-Rap 180 mm

414115200

$0.11

73

O-Ring

293300123

$1.03

74

Tie-Rap 180 mm

414115200

$0.11

75

Tie-Rap 180 mm

414115200

$0.11

76

Tie Wrap 142 mm

293750002

$1.25

77

Tie Wrap 368 mm

293750008

$1.04
