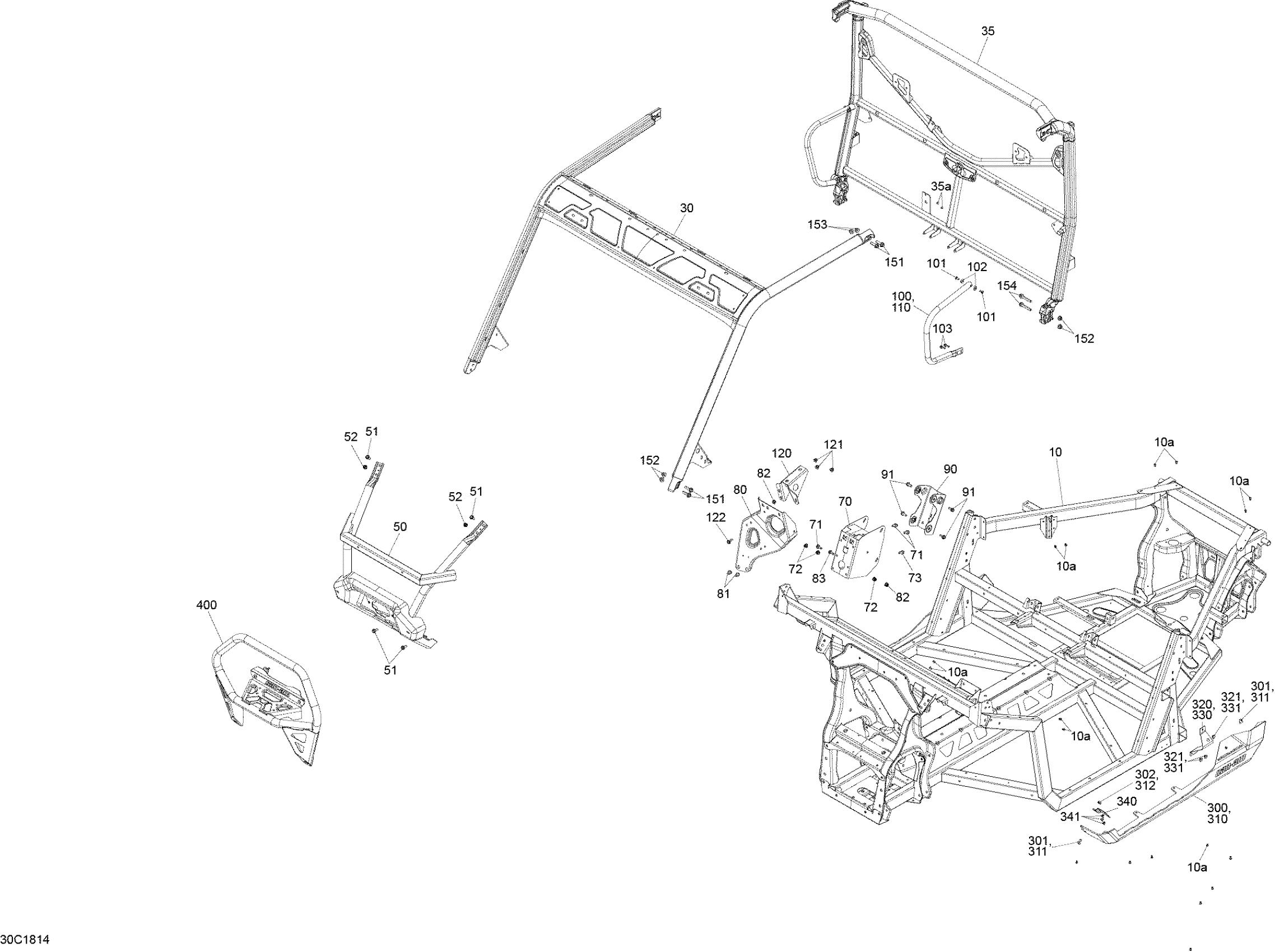

Can-Am Defender HD10 - XTP, 2018 Frame Defender - XTP Diagram

#

Description
Price

10

Frame Kit

715005592

$2,589.99

10a

Pop Rivet 3/16"

390402200

$0.26

30

Deep Black, Front Cage Service Kit

715008354

$649.99

35

Black, Rear Cage Kit

715003569

$649.99

35a

Pop Rivet 3/16"

390402200

$0.26

50

Deep Black, Front Bumper

705207588

$519.97

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

52

Hex. Flange Elastic Nut M8

233281414

$1.14

70

Plate

705206316

$52.28

71

Hex. Flange Screw M8 X 20

207682044

$0.92

72

Hex. Flange Elastic Nut M8

233281414

$1.14

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

82

Hex. Flange Elastic Nut M8

233281414

$1.14

83

Hex. Flange Screw M8 X 20

207682044

$0.92

90

Steering Column Support | Includes 90 to 90d

705209190

$34.58

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

100

Deep Black, LH Protector Tube

705204594

$46.12

101

Torx Truss M6X14

250000789

$4.41

102

Offset Washer

705202223

$4.98

103

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

110

Deep Black, RH Protector Tube

705204592

$46.12

120

Shifting Module Support

705205171

$28.43

121

Hex. Flange Elastic Nut M8

233281414

$1.14

122

Hex. Flange Screw M8 X 20

207682044

$0.92

300

LH Rock Slider Welded Red

705206488

$284.58

301

Torx Truss Screw M8 X 16

250000746

$2.78

302

Hex. Flange Nut M8

233181414

$0.91

310

Red, RH Rock Slider

705206487

$289.97

311

Torx Truss Screw M8 X 16

250000746

$2.78

312

Hex. Flange Nut M8

233181414

$0.91

320

LH Rock Slider Support

705206342

$46.12

321

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

330

RH Rock Slider Support

705206343

$41.51

331

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

340

Rock Slider Front Support

705206382

$16.89

341

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

400

XTP Front Bumper

715004408

$324.58
