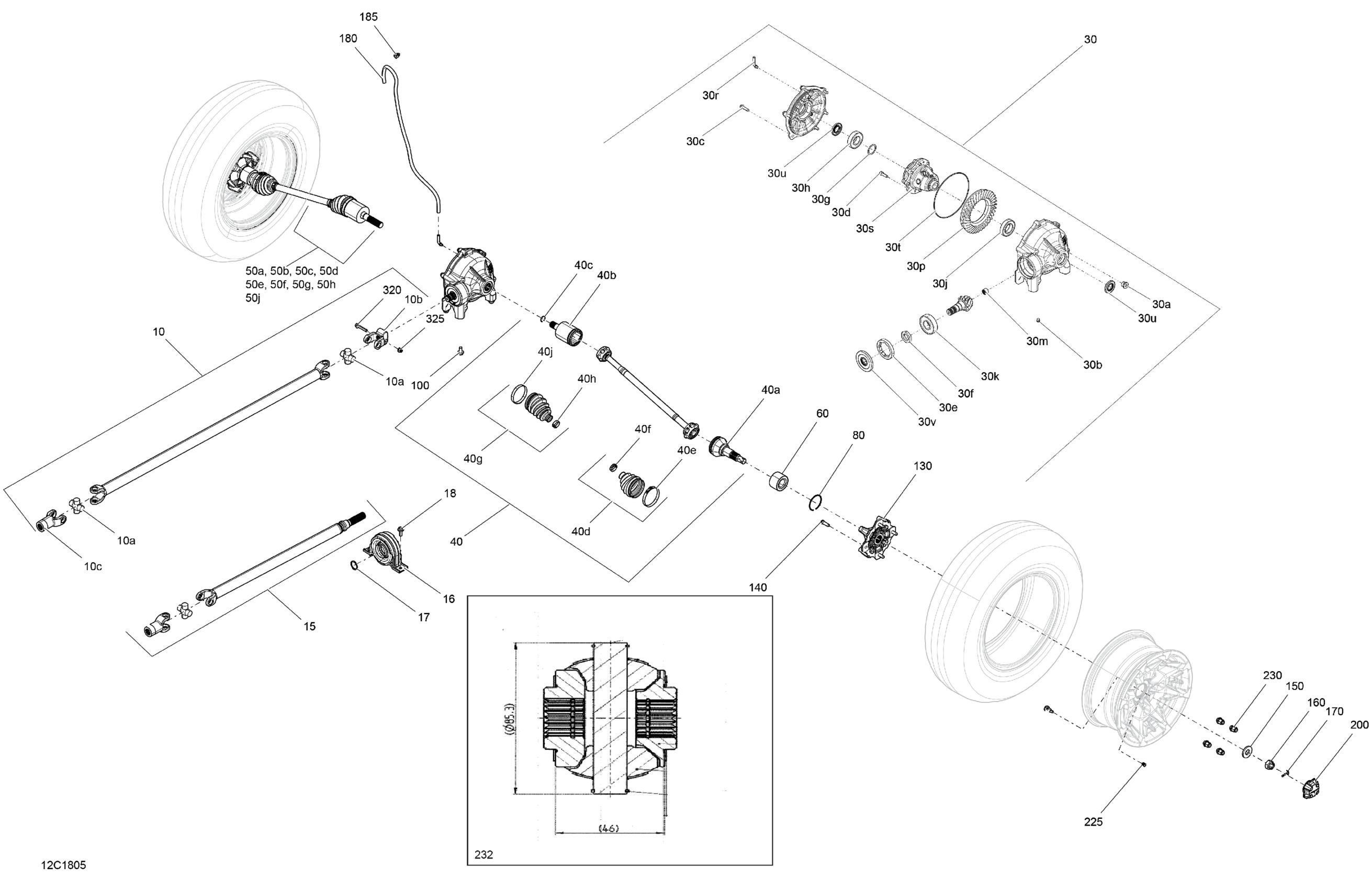

Can-Am Defender HD10 - XTP, 2018 Front Drive - Defender - Package XTP Diagram

#

Description
Price

10>10c

Axle Ass'y

705402125

$203.05

10>10c

Drive Axle Ass'y

705402126

$175.35

10a

J-Joint Cross Kit

715900402

$87.66

10b

Fixed Yoke

715900400

$59.97

10c

Yoke

715900401

$36.89

15

Drive Axle Ass'y | Includes 15 to 15b

705403287

$313.82

16

Ball Bearing Ass'y

705403522

$46.12

17

Snap Ring

293370098

$3.11

18

Hex. Flange Screw M10 X 25

207502546

$1.74

30

Front Differential Ass'y | Model With DPS

705402763

$1,661.51

30

Front Differential Ass'y | Includes 30 to 30y

705402995

$1,338.43

30a

Fill Level Plug

705501889

$18.43

30b

Drain Plug | After May 30, 2014

705501885

$12.68

30c

Bolt

705501886

$6.75

30d

Screw

705402375

$11.83

30e

Nut M75 X 1.5

705401819

$23.05

30f

Nut M27 X 1.5

705401820

$23.05

30g

Shim | 4X4

705401604

$55.35

30h

Ball Bearing | 4X4

705401606

$49.20

30j

Ball Bearing

705402847

$46.12

30k

Ball Bearing

705401821

$30.39

30m

Ball Bearing | After May 30, 2014

705402848

$46.12

30n

Front Cover

705401667

$152.28

30p

Ring Gear 36 Teeth

705402788

$359.97

30q

Pinion 10 th.

705401933

$179.97

30r

Vent Valve

705401935

$14.37

30s

Differential

705402376

$1,258.74

30s

Differential | Base Package

705402377

$1,174.99

30t

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$8.45

30u

Oil Seal

705401836

$7.37

30v

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$16.89

40

RH Front - Premium CV Axle | Includes 40 to 40f2

705401936

$232.74

40

RH CV Joint | Package CAB

705402170

$232.74

40a

JOINT_CV EXT - Call your local BRP dealership

715900440

Unavailable

40b

RH Plunging Joint

715900441

Unavailable

40c

Circlip Joint | Not shown

705401349

$5.38

40d

Boot Kit, Wheel Side

705401345

$41.51

40e

Oetiker Clamp

715900282

$4.39

40f

Oetiker Clamp, Small

715900283

$4.39

40g

Boot Kit, Différential Side

705401355

$41.51

40h

Oetiker Clamp, Small

715900261

$4.39

40j

Oetiker Clamp, Large

715900262

$7.84

50

LH Front - Premium CV Axle | Includes 50 to 50f2

705401937

$232.74

50

LH CV Joint | Package CAB

705402171

$232.74

50a

JOINT_CV EXT - Call your local BRP dealership

715900440

Unavailable

50b

LH Plunging Joint

715900442

Unavailable

50c

Circlip Joint | Not shown

705401349

$5.38

50d

Boot Kit, Wheel Side

705401345

$41.51

50e

Oetiker Clamp

715900282

$4.39

50f

Oetiker Clamp, Small

715900283

$4.39

50g

Boot Kit, Différential Side

705401355

$41.51

50h

Oetiker Clamp, Small

715900261

$4.39

50j

Oetiker Clamp, Large

715900262

$7.84

60

Ball Bearing

293350150

$51.93

80

Circlip

293370019

$4.98

100

Hex. Flange Screw M10 X 20

207502046

$1.74

130

Wheel Hub

705502338

$115.35

140

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

150

Conical Spring Washer M20

250200170

$11.00

160

Castle Nut M20

250100193

$6.66

170

Cotter Pin

250400084

$1.79

180

HOSE, POLYURETHANE - Call your local BRP dealership

415080200

Unavailable

185

Clip

414227300

$1.45

200

Wheel Cap

705400928

$11.06

200

Wheel Cap | Package XMR 850, XMR 1000

705401541

$11.06

225

Valve Cap

293000110

$1.18

230

Steel Wheel Nut

250100042

$2.48

230

Steel Wheel Nut

250100042

$2.48

230

Steel Wheel Nut

250100042

$2.48

230

Steel Wheel Nut

250100042

$2.48

230

Steel Wheel Nut

250100042

$2.48

230

Black, Wheel Nut M10 X 1.25

250100184

$2.48

230

Black, Wheel Nut M10 X 1.25

250100184

$2.48

230

Black, Wheel Nut M10 X 1.25

250100184

$2.48

230

Black, Wheel Nut M10 X 1.25

250100184

$2.48

230

Black, Wheel Nut M10 X 1.25

250100184

$2.48

230

Black, Wheel Nut M10 X 1.25

250100184

$2.48

230

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$2.48

230

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$2.48

230

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$2.48

230

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$2.48

232

Side Gear Kit

703501023

$1,174.99

230

Black, Wheel Nut M10 X 1.25

250100184

$2.48

320

Hex. Flange Screw M8 X 42

250001050

$0.95

325

Hex. Elastic Flange Nut M8

233281416

$1.25
