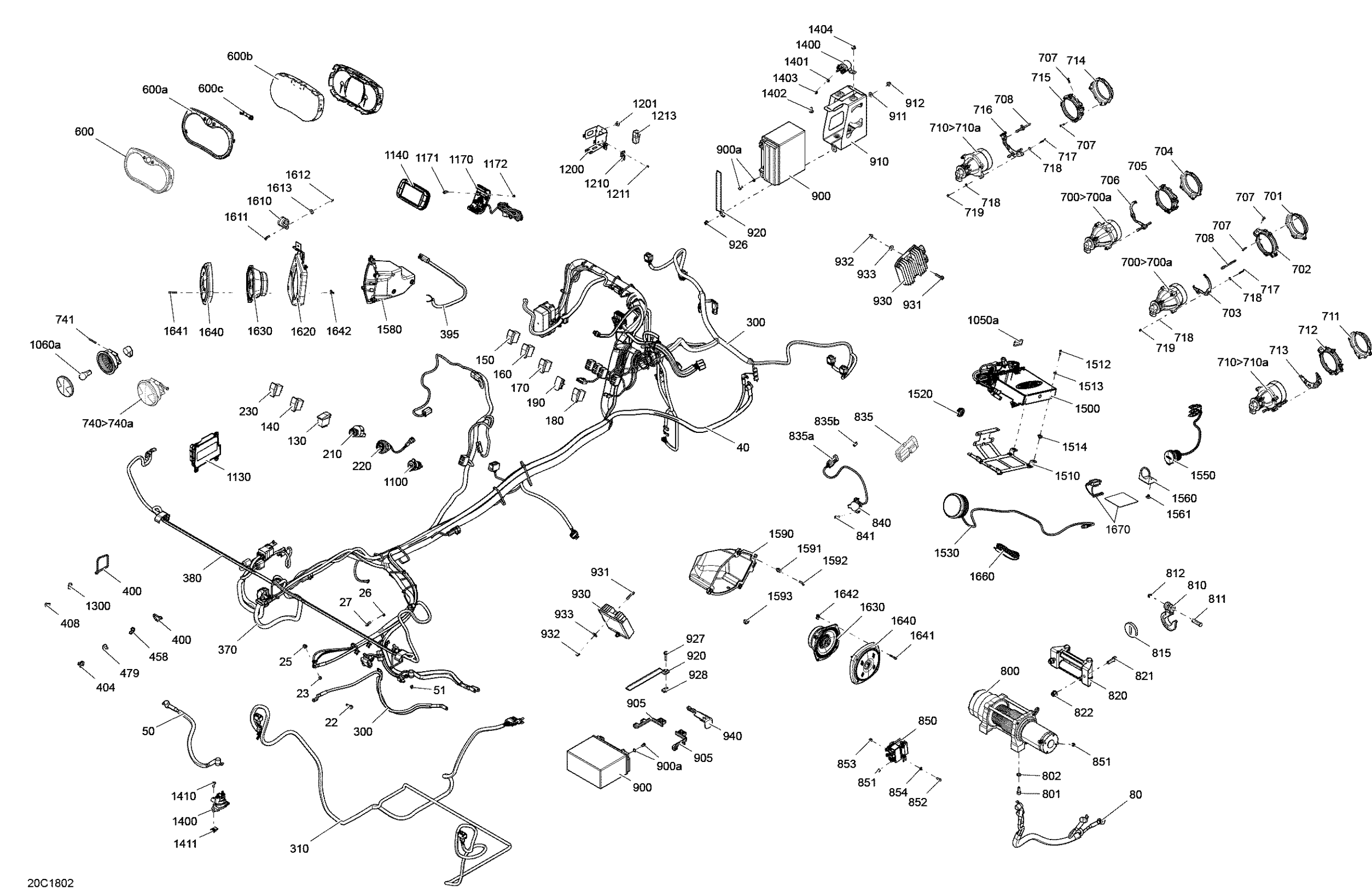

Can-Am Commander MAX 1000R EFI, 2018 Electrical System Commander - Package LTD Diagram

#

Description
Price

22

Hex. Flange Screw M6 X 20

207662044

$2.00

23

External Serrated Lock Washer 6 mm

234461608

$1.15

25

Hex. Flange Nut M6

233061414

$1.68

26

External Serrated Lock Washer 6 mm

234461608

$1.15

27

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

40

Winch Cable (-/+) | XT

710005123

$88.99

40

Winch Cable (-/+) | Commander Max Package XT

710005239

$114.99

50

Positive Cable

710004383

$42.99

50

Positive Cable

710004390

$36.99

51

Elastic Stop Nut M6

232561414

$0.55

80

Electrical Winch Cable | XT

710004387

$49.99

130

Switch, Over ride

710002053

$19.49

140

Hi/Low Switch | Except Europe

710001725

$21.49

150

4X4 Switch

710001737

$31.99

160

Switch PPS Sport

710003541

$19.49

170

Switch DPS

710001781

$22.99

180

Switch Winch

710002052

$28.49

190

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

210

Ignition Switch

710008400

$78.49

220

Engine Start Button

710002594

$60.49

300

Harness Ass'y | Commander

710005661

$1,199.99

300

WIRING HARNESS ASSY - Call your local BRP dealership | Commander MAX

710005662

Unavailable

300a

DPS Connector Cap | Not Shown

710005760

$16.86

310

Rear Harness

710004681

$99.99

380

Radio Harness

710004339

$114.99

395

Speaker Harness | Includes 1 to S+

710004340

$24.49

408

Mount Dart

293730040

$1.04

479

Mount Dart

293730040

$1.04

600

Speedometer | Package Hunter, XT, XTP

710005653

$439.99

600a

Gauge Ring

415129348

$13.99

600b

Lens | XTP

415129349

$24.49

600c

Speedometer Button | XTP

415129355

$15.80

700

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

700a

Halogen Bulb

415129249

$41.49

701

RH Low Front Housing

710001081

$19.99

702

RH Low Rear Housing

710001082

$12.99

703

RH Low Light Support

710001094

$9.09

704

LH Low Front Housing

710001083

$19.99

705

LH Low Rear Housing

710001084

$12.99

706

LH Low Light Support

710001037

$9.09

707

Phillips Screw K40 X 16

250000723

$0.98

708

Setting Screw

710001147

$12.71

710

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

710a

Halogen Bulb

415129249

$41.49

711

RH High Front Housing

710001085

$19.99

712

RH High Rear Housing

710001086

$12.99

713

RH High Light Support

710001115

$5.29

714

LH High Front Housing

710001087

$19.99

715

LH High Rear Housing

710001088

$12.99

716

LH High Light Support

710001036

$5.29

717

Hex. Screw M4 X 25

207142544

$2.00

718

Flat Washer M5

234051410

$0.53

719

Elastic Stop Nut M4

232541414

$0.58

740

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

740a

Bulb

520000758

$9.10

741

Hex. Screw K50 X 45

241154540

$2.11

800

Winch_Electric | Package Hunter, XT, XTP

710007030

$677.99

801

Socket Head Screw M8 X 20

205082044

$1.15

802

Lock Washer 8 mm

234181401

$0.92

810

Winch Hook Kit

705014949

$24.99

811

Winch Hook Kit

705014949

$24.99

812

Winch Hook Kit

705014949

$24.99

815

Stopper

710007028

$3.82

820

Fairlead Roller

710007082

$59.49

821

Socket Screw M10 x 30 | XT

205003044

$3.17

822

Hex. Flange Elastic Nut M10

233201414

$1.58

835

Connector Ass'y | XT, Includes 55 to 57

710001059

$9.10

835a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

835b

Clip

710000992

$4.29

840

Wiring Harness_Switch Winch | Package XT

710007053

$60.99

841

Torx Screw K50 X 16

250000720

$1.69

850

Solenoid

710006991

$62.49

851

Elastic Stop Nut M6

232561434

$1.99

852

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

853

Elastic Flange Nut M5

233251494

$2.11

854

Flat Washer M5

234051410

$0.53

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

900a

Battery Bolt Kit

250000282

$7.29

905

Battery Rubber Pad

710003602

$12.99

910

Battery Support

710003129

$48.99

911

Flat Washer 6 mm

234062410

$0.77

912

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

920

Battery Holder

710001916

$21.99

926

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

927

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

928

Panel Nut M6 X 1.0

250100198

$2.11

930

Voltage Regulator

710005842

$189.99

931

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

932

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

933

Stainless Steel Flat Washer

234062670

$2.11

940

Cap

710003582

$11.99

1050a

Cap Protector | Model-Europe

710003269

$12.11

1060a

Bulb

219800128

$2.46

1100

DC Outlet

710001248

$37.99

1140

GPS | Package LTD North America

710005034

$809.99

1170

GPS Support | LTD Model

710003210

$214.99

1171

Torx Head Screw M4 X 16

250000797

$2.09

1172

Elastic Stop Nut M4

232541484

$0.74

1200

Fuse Holder

710003335

$10.11

1201

Pop Rivet 3/16"

293150103

$0.55

1210

Clip

270000141

$11.49

1211

Pop Rivet 3/16"

390402400

$0.35

1213

Housing

710003006

$8.79

1300

Clip

414227300

$1.67

1400

Starter Relay

278003012

$42.49

1400

Starter Relay

710007777

$48.49

1401

Lock Washer Helical M6

234161601

$1.15

1402

Torx Head Screw M6 X 16

250000717

$2.11

1403

Hex. Nut M6

232061600

$1.15

1404

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1410

Torx Head Screw M6 X 16

250000717

$2.11

1411

Panel Nut M6 X 1.0

250100198

$2.11

1500

Amplifier

710005442

$462.49

1510

Amplifier Support

710002556

$114.99

1512

Torx Screw M4 X 16

250000750

$1.68

1513

Flat Washer 4 mm, Stainless

234042600

$1.15

1514

Extruded Panel Nut M4 X 0.7

250100143

$8.49

1520

Grommet Boot

710002926

$4.69

1530

Radio Interface

710002549

$391.99

1550

USB Extension

710002551

$139.99

1560

USB Extension Support

710002731

$18.49

1561

Pop Rivet 3/16"

293150103

$0.55

1580

LH Speaker HSG

705012294

$16.65

1590

RH Speaker HSG

705012293

$16.65

1591

Panel Nut M5 X 0.8

250000958

$4.23

1592

Torx Screw M5 X 20

250000724

$1.69

1593

Clip

414227300

$1.67

1610

Hose Anchor

709200036

$11.12

1611

Torx Screw M5 X 20

250000724

$1.69

1612

Elastic Flange Nut M5

233251494

$2.11

1613

Washer M5

250200025

$0.74

1620

Speaker Box Plate

710002789

$15.36

1630

Front Speaker

710003233

$92.99

1640

Speaker Cover

710002790

$13.76

1641

Socket Head Screw M4 X 25

205042560

$2.22

1642

Extruded Panel Nut M4 X 0.7

250100143

$8.49

1660

Antenna

710002810

$11.63

1670

BlueTooth Module

710005958

$18.49

400

Tie Wrap 368 mm

293750008

$1.04

400

Tie-Rap 180 mm

414115200

$0.11

400

Tie-Rap 173 mm

293750009

$1.04
