Partiron

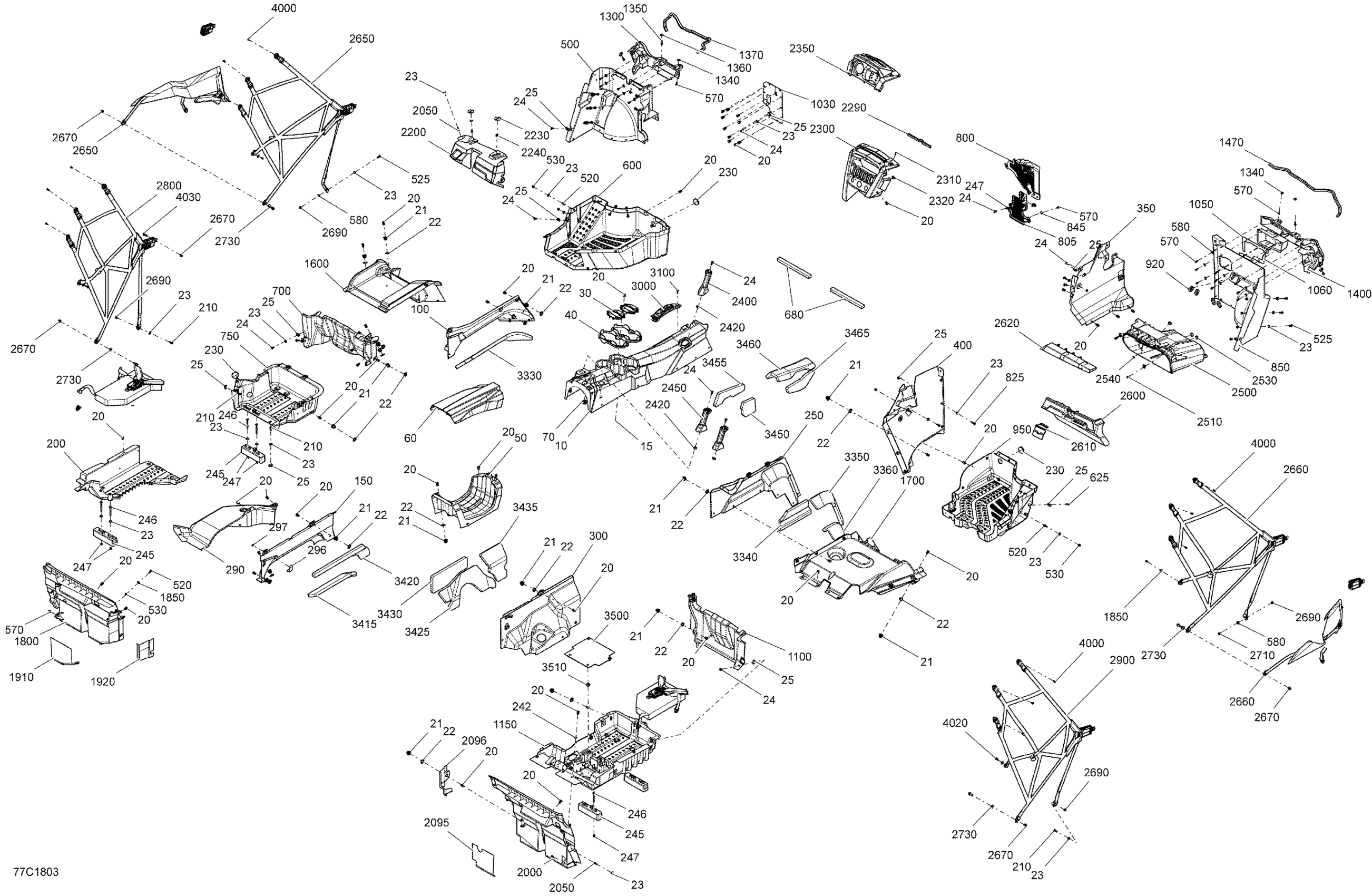

Can-Am Commander MAX 1000R EFI, 2018 Cab Interior Commander MAX Diagram

#

Description
Price

10

Front Console Ass'y | North America Except Package LTD

715004114

$156.89

10

Front Console Ass'y | North America Package LTD

715004115

$156.89

10

Front Console Ass'y | International Except Package LTD

715004329

$156.89

10

Front Console Ass'y | International Package LTD

715004332

$156.89

15

Push Nut

732610072

$1.72

20

Tuflok Plastic Rivet

293150230

$1.21

21

Insert

707900133

$2.75

22

Washer

503189273

$3.20

23

Stainless Steel Flat Washer

234062670

$1.74

24

Torx Screw M6 X 20

250000722

$1.34

25

Panel Nut M6 X 1.0

250100198

$1.73

30

Cup Retainer

707900036

$6.45

40

Cup Holder

707900100

$16.89

45

Tuflok Plastic Rivet

293150230

$1.21

50

Rear Central Console

707900075

$46.12

60

Rear Console Cover Kit

707900229

Unavailable

70

Grommet

517303756

$3.15

80

Tuflok Plastic Rivet

293150230

$1.21

85

Insert

707900133

$2.75

90

Washer

503189273

$3.20

100a

LH Side Console

707900001

$41.51

110

Tuflok Plastic Rivet

293150230

$1.21

120

Insert

707900133

$2.75

130

Washer

503189273

$3.20

150

Rear Left Dash

707900633

$78.43

160

Insert

707900133

$2.75

170

Washer

503189273

$3.20

180

Tuflok Plastic Rivet

293150230

$1.21

200

Under cover

707900387

$152.28

210

Hex. Flange Screw M6 X 20

207662054

$0.83

220

Panel Nut M6 X 1.0

250100198

$1.73

230

Rubber Cover

293250242

$5.38

240

Tuflok Plastic Rivet

293150230

$1.21

242

Washer

506151252

$3.11

245

Support Plate

707900099

$15.35

246

Hex. Flange Screw M6 X 70

207667056

$3.61

247

Threaded Insert M6 X 1.0

250100242

Unavailable

248

Stainless Steel Flat Washer

234062670

$1.74

250

RH Side Console

707900002

$36.89

260

Tuflok Plastic Rivet

293150230

$1.21

270

Insert

707900133

$2.75

280

Washer

503189273

$3.20

290

Rear Floor cap

707900388

$152.28

295

Tuflok Plastic Rivet

293150230

$1.21

296

INSERT SUPPORT - Call your local BRP dealership

705205445

Unavailable

297

Pop Rivet 3/16"

293150103

$0.54

300

RH Rear Console Panel

707900080

$59.20

310

Insert

707900133

$2.75

320

Washer

503189273

$3.20

330

Tuflok Plastic Rivet

293150230

$1.21

350

Front Side Dash Panel

707900193

$69.20

360

Tuflok Plastic Rivet

293150230

$1.21

370

Torx Screw M6 X 20

250000722

$1.34

380

Threaded Insert M6 X 1.0

250100242

Unavailable

390

Stainless Steel Flat Washer

234062670

$1.74

400

RH Fixe Side Console

707900021

$73.82

400

RH Fixe Side Console

707900021

$73.82

400

RH Fixe Side Console | LTD Model

707900098

$83.05

410

Tuflok Plastic Rivet

293150230

$1.21

440

Torx Screw M6 X 20

250000722

$1.34

450

Threaded Insert M6 X 1.0

250100242

Unavailable

470

Stainless Steel Flat Washer

234062670

$1.74

480

Washer

506151252

$3.11

500

LH Front Upper Floor

707900175

$78.43

510

Torx Screw M6 X 20

250000722

$1.34

520

Torx Screw M6 X 20

250000712

$1.74

525

Torx Screw M6 X 25

250000758

$1.74

530

Hex. Flange Elastic Nut M6

233261494

$1.26

540

Stainless Steel Flat Washer

234062670

$1.74

550

Panel Nut M6 X 1.0

250100198

$1.73

560

Stainless Steel Flat Washer

234062670

$1.74

570

Torx Screw K50 X 16

250000720

$1.39

580

Flat Washer 6 mm

234062410

$0.64

600

LH Lower Floor

707900022

$253.82

610

Torx Screw M6 X 20

250000712

$1.74

615

Stainless Steel Flat Washer

234062670

$1.74

620

Torx Screw M6 X 20

250000722

$1.34

625

Torx Truss Screw M6 X 25

250000807

$1.74

630

Panel Nut M6 X 1.0

250100198

$1.73

635

Torx Screw M6 X 20

250000722

$1.34

640

Hex. Flange Elastic Nut M6

233261494

$1.26

650

Stainless Steel Flat Washer

234062670

$1.74

660

Threaded Insert M6 X 1.0

250100242

Unavailable

670

Rubber Cover

293250242

$5.38

680

SEAL-TRAY 300MM LONG - Call your local BRP dealership

219704380

Unavailable

700

LH Rear Upper Floor Cover

707900082

$50.74

710

Tuflok Plastic Rivet

293150230

$1.21

720

Insert

707900133

$2.75

730

Washer

503189273

$3.20

735

Torx Screw M6 X 20

250000722

$1.34

736

Stainless Steel Flat Washer

234062670

$1.74

740

Torx Screw M6 X 25

250000758

$1.74

745

Panel Nut M6 X 1.0

250100198

$1.73

750

Rear Floor | Model-Black Carbon (Turbo), White/Gray/Green (Turbo)

707900331

$78.43

755

Panel Nut M6 X 1.0

250100198

$1.73

760

Support Plate

707900099

$15.35

770

Hex. Flange Screw M6 X 70

207667056

$3.61

775

Hex. Flange Screw M6 X 20

207662054

$0.83

776

Stainless Steel Flat Washer

234062670

$1.74

780

Threaded Insert M6 X 1.0

250100242

Unavailable

800

Grille

707900178

$9.18

805

Grille

707900180

$9.18

820

Panel Nut M6 X 1.0

250100198

$1.73

825

Torx Truss Screw M6 X 30

250000843

$1.74

826

Torx Screw M6 X 20

250000722

$1.34

830

Stainless Steel Flat Washer

234062670

$1.74

835

Torx Truss Screw M6 X 30

250000843

$1.74

840

Torx Screw K50 X 16

250000720

$1.39

845

Washer M5

250200025

$0.61

850

RH Front Floor

707900004

$78.43

860

Torx Screw M6 X 20

250000722

$1.34

870

Torx Screw M6 X 20

250000712

$1.74

875

Torx Screw M6 X 25

250000758

$1.74

880

Hex. Flange Elastic Nut M6

233261494

$1.26

890

Stainless Steel Flat Washer

234062670

$1.74

900

Panel Nut M6 X 1.0

250100198

$1.73

910

Stainless Steel Flat Washer

234062670

$1.74

920

Oblong Grommet

705003668

$4.54

930

Torx Screw K50 X 16

250000720

$1.39

940

Flat Washer 6 mm

234062410

$0.64

950

RH Lower Floor

707900023

$184.58

960

Torx Screw M6 X 20

250000712

$1.74

965

Stainless Steel Flat Washer

234062670

$1.74

970

Torx Screw M6 X 20

250000722

$1.34

975

Torx Truss Screw M6 X 25

250000807

$1.74

980

Panel Nut M6 X 1.0

250100198

$1.73

985

Torx Screw M6 X 20

250000722

$1.34

990

Hex. Flange Elastic Nut M6

233261494

$1.26

1000

Stainless Steel Flat Washer

234062670

$1.74

1010

Threaded Insert M6 X 1.0

250100242

Unavailable

1020

Rubber Cover

293250242

$5.38

1030

Deflector

707900192

$16.89

1040

Tuflok Plastic Rivet

293150230

$1.21

1050

Upper Seal

293250252

$2.75

1060

Bottom Seal

293250253

$2.99

1100

Seat Cover

707900083

$46.12

1110

Insert

707900133

$2.75

1120

Washer

503189273

$3.20

1125

Torx Screw M6 X 20

250000722

$1.34

1126

Stainless Steel Flat Washer

234062670

$1.74

1130

Rubber Cover

293250242

$5.38

1140

Tuflok Plastic Rivet

293150230

$1.21

1150

RH Lower Rear Floor

707900670

$184.58

1151

Panel Nut M6 X 1.0

250100198

$1.73

1155

Tuflok Plastic Rivet

293150230

$1.21

1156

Washer

506151252

$3.11

1160

Support Plate

707900099

$15.35

1170

Hex. Flange Screw M6 X 70

207667056

$3.61

1175

Stainless Steel Flat Washer

234062670

$1.74

1180

Threaded Insert M6 X 1.0

250100242

Unavailable

1300

SUPPORT_PANEL LH - Call your local BRP dealership

707900029

$11.98

1310

Panel Nut M6 X 1.0

250100198

$1.73

1320

Torx Screw M6 X 20

250000722

$1.34

1330

Torx Screw K50 X 16

250000720

$1.39

1340

Flat Washer

224060201

$1.15

1350

Hex. Screw M6 X 25

207162544

$1.05

1360

Flat Washer

224061201

$1.11

1370a

Was 293200017 Neoprene Seal

219704365

$118.27

1400

SUPPORT_PANEL RH - Call your local BRP dealership

707900030

Unavailable

1410

Panel Nut M6 X 1.0

250100198

$1.73

1420

Torx Screw M6 X 20

250000722

$1.34

1430

Torx Screw K50 X 16

250000720

$1.39

1440

Flat Washer

224060201

$1.15

1450

Hex. Screw M6 X 25

207162544

$1.05

1460

Flat Washer

224061201

$1.11

1470

Was 293200017 Neoprene Seal

219704365

$118.27

1600

Under Seat Cover

707900130

$78.43

1610

Tuflok Plastic Rivet

293150230

$1.21

1620

Insert

707900133

$2.75

1630

Washer

503189273

$3.20

1700

RH Under Seat Plate

707900006

$106.12

1710

Tuflok Plastic Rivet

293150230

$1.21

1720

Insert

707900133

$2.75

1730

Washer

503189273

$3.20

1800

DEFLECTOR_BODY PANEL REAR L - Call your local BRP dealership

707900220

Unavailable

1810

Tuflok Plastic Rivet

293150230

$1.21

1840

Torx Screw K50 X 16

250000720

$1.39

1850

Flat Washer

250200040

$1.82

1860

Torx Screw M6 X 20

250000712

$1.74

1870

Hex. Flange Elastic Nut M6

233261494

$1.26

1880

Tuflok Plastic Rivet

293150230

$1.21

1910

Heat Shield

707900182

$8.98

1920

Heat Shield

707900183

$5.52

2000

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900219

Unavailable

2010

Tuflok Plastic Rivet

293150230

$1.21

2040

Torx Screw K50 X 16

250000720

$1.39

2050

Torx Screw Truss Head K50X20 T20

250000760

$1.74

2060

Stainless Steel Flat Washer

234062670

$1.74

2070

Tuflok Plastic Rivet

293150230

$1.21

2095

Heat Shield

707900167

$8.45

2096

Heat Shield

707900184

$5.52

2200

Dashboard Ass'y

715001250

$78.43

2210

Torx Screw Truss Head K50X20 T20

250000760

$1.74

2220

Stainless Steel Flat Washer

234062670

$1.74

2230

Support Plate

705003841

$0.91

2240

Edge Clip

517302785

$0.70

2250

Torx Screw M6 X 20

250000722

$1.34

2260

Panel Nut M6 X 1.0

250100198

$1.73

2290>2290a

Was 271000110 Protection Trim

219704353

$15.03

2290a

Was 271000110 Protection Trim

219704353

$15.03

2300

Lower Central Dashboard Ass'y | Europe

707900019

$41.51

2300

Lower Central Dashboard Ass'y | Europe

707900019

$41.51

2300>2300a

DASHBOARD CTRL. - Call your local BRP dealership | LTD Model

707900065

Unavailable

2300a

Lower Central Dashboard Ass'y | Europe

707900019

$41.51

2310

Torx Screw M5 X 20

250000724

$1.39

2320

Panel Nut M5 X 0.8

250000958

$3.48

2330

Tuflok Plastic Rivet

293150230

$1.21

2350

Gauge Support | LTD Model

707900066

$36.12

2360

Torx Screw K50 X 16

250000720

$1.39

2370

Push Nut

732610072

$1.72

2400

Passenger Handle

707900011

$12.91

2410

Torx Screw M6 X 20

250000722

$1.34

2420

Connector Tube

707900048

$6.45

2450

Handle

707900103

$14.75

2460

Torx Screw M6 X 20

250000722

$1.34

2470

Connector Tube

707900048

$6.45

2500

Storage Bin

707900009

$110.74

2500

Storage Bin | XT

707900046

$96.89

2500a

Storage Bin | XT

707900046

$96.89

2510

Hex. Flange Screw M6 X 20

207662034

$1.74

2520

Panel Nut M6 X 1.0

250100198

$1.73

2530

CAP - Call your local BRP dealership

414859400

Unavailable

2540

Rubber Bumper

293830005

$5.33

2600>2600a

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

Unavailable

2600a

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

Unavailable

2610

Latch

707900031

$8.29

2620>2620a

Trim Glove Box

707900062

$17.66

2620a

Trim Glove Box

707900062

$17.66

2650>2650a

Front LH Safety Net

707900237

$124.58

2650a

Buckle

707900035

$50.74

2660>2660a

Front RH Safety Net

707900238

$124.58

2660a

Buckle

707900035

$50.74

2670

Hex. Flange Elastic Nut M8

233281414

$1.14

2690

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

2700

Flat Washer 6 mm

234062410

$0.64

2705

Stainless Steel Flat Washer

234062670

$1.74

2710

Hex. Flange Screw M6 X 20

207662044

$1.66

2715

Torx Screw M6 X 25

250000758

$1.74

2730

Flat Washer 8 mm

234082410

$1.11

2740

Hex. Flange Elastic Nut M8

233281414

$1.14

2800>2800a

Rear LH Safety Net | Upper Link 707900049

707900239

$212.28

2800a

Buckle

707900035

$50.74

2820

Hex. Flange Elastic Nut M8

233281414

$1.14

2830

Flat Washer 8 mm

234082410

$1.11

2840

Hex. Flange Screw M6 X 20

207662054

$0.83

2850

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

2860

Stainless Steel Flat Washer

234062670

$1.74

2900>2900a

Rear RH Safety Net | Upper Link 707900049

707900240

$212.28

2900a

Buckle

707900035

$50.74

2920

Hex. Flange Elastic Nut M8

233281414

$1.14

2930

Flat Washer 8 mm

234082410

$1.11

2940

Hex. Flange Screw M6 X 20

207662054

$0.83

2950

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

2960

Stainless Steel Flat Washer

234062670

$1.74

3000

Shift Lever Indicator

707900088

$14.75

3100

Torx Screw M6 X 25 | XT Models

250000728

$3.61

3330

LH Lower Lateral Console Foam

707900621

$20.74

3340

RH Lateral Console Foam

707900622

$15.35

3350

RH Lateral Console Foam

707900623

$15.35

3360

RH Lateral Console Foam

707900624

$15.35

3415

LH Rear Lateral Foam | Model-Black Carbon (Turbo), White/Gray/Green (Turbo)

707900625

$20.74

3420

LH Rear Lateral Foam

707900626

$15.35

3435

RH Rear Lateral Foam

707900627

$14.37

3455

Front Central Foam

707900628

$10.14

3460

Front Central Foam

707900629

$15.22

3465

Front Central Foam

707900630

$10.14

3500

Battery Cover

707900163

$17.66

3510

Grommet

705003264

$3.43
