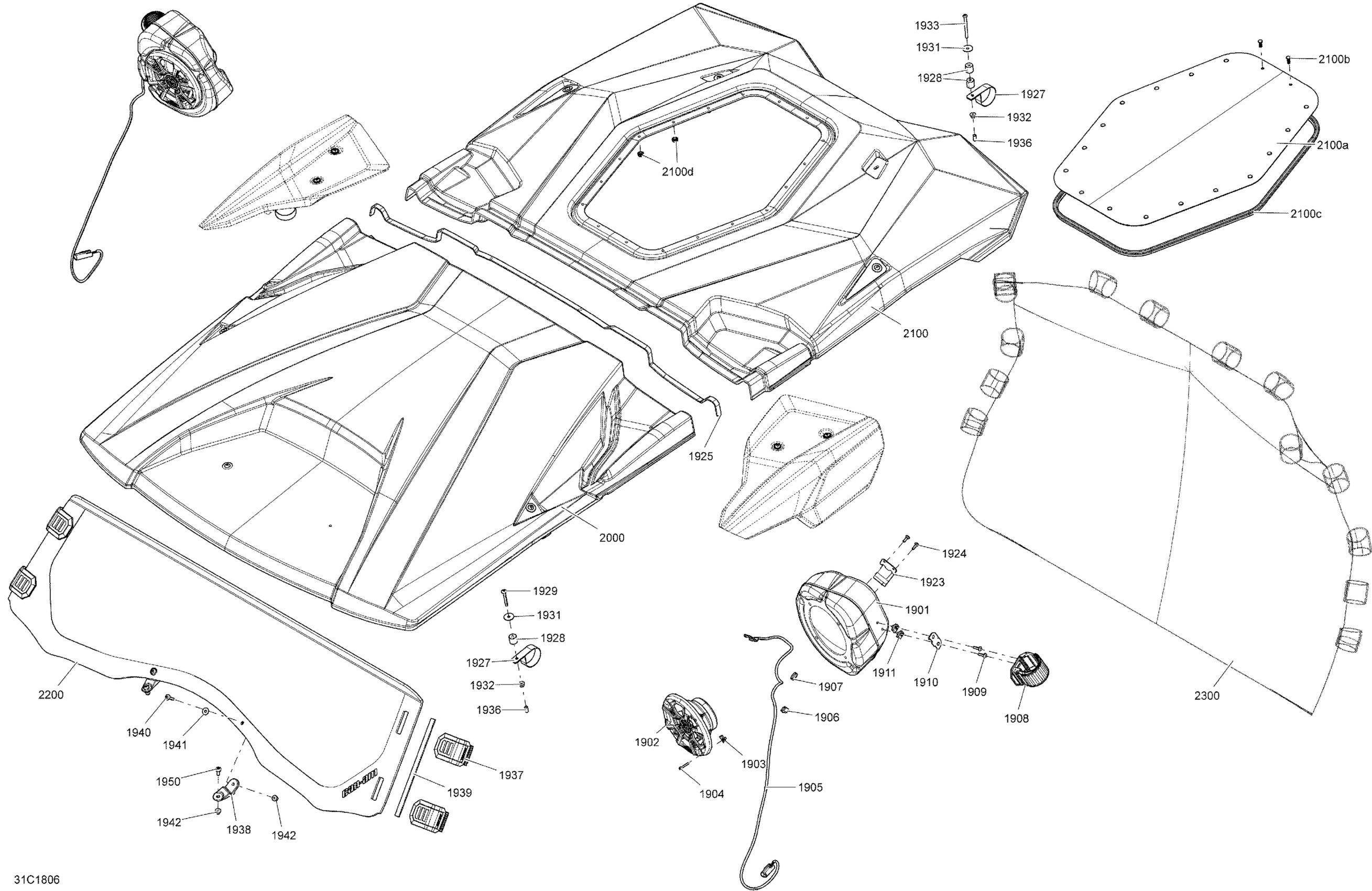

Can-Am Commander MAX 1000R EFI, 2018 Body Accessories - Commander MAX - Package LTD Diagram

Description

Price

1901

LH Speaker Box Ass'y

710002837

$148.49

1901

RH Speaker Box Ass'y

710002839

$148.49

1902

Speaker

710002838

$169.49

1903

Extruded Panel Nut M4 X 0.7

250100143

$8.49

1904

Torx Pan Screw M4 X 20

250000622

$1.90

1905

Speaker Harness

710004341

$104.99

1906

Clip

414227300

$1.67

1904

Grommet

414036300

$2.79

1908

Retainer Velcro Perforated

705013420

$43.99

1909

Torx Screw M5 X 20

250000724

$1.69

1910

M5 Support Plate

710002946

$7.99

1911

Panel Nut M5 X 0.8

250000958

$4.23

1923

U Brace Strip | LTD

705009030

$18.49

1924

Torx Screw K50 X 16

250000720

$1.69

1925

Gasket, Neoprene 2000Mm Long

219704476

$15.36

1925

Neoprene Seal (1PAC=3M)

219704364

$27.49

1927

"P" Bracket, 2" Dia.

705005626

$27.99

1928

Roof Spacer Bushing

705007138

$1.89

1929

Torx Truss Screw M6 X 50

250000749

$3.17

1931

Washer M6

250200029

$2.50

1940

Torx Screw M6 X 25

250000758

$2.11

1942

Hex. Flange Elastic Nut M6

233261494

$1.58

1933

Torx Screw Button Head M6 X 70

235567084

$7.51

1936

Cap

515176141

$3.09

1937

Retainer Velcro Perforated

705013420

$43.99

1938

Windshield Support | LTD

705005776

$13.49

1939

Gasket, Neoprene 2000Mm Long

219704476

$15.36

1941

Stainless Steel Flat Washer

234062670

$2.11

1942

Hex. Flange Elastic Nut M6

233261494

$1.58

1950

Torx Truss Screw M6 X 20

250000488

$2.11

2000

Deep Black Roof Front Section

705009203

$639.99

2100

Deep Black Roof Rear Section

705009205

$639.99

2100a

Clear Skylight Panel

705009562

$224.99

2100b

Plastic Dart

705009405

$1.99

2100c

EXTRUSION - Call your local BRP dealership

293250336

Unavailable

2100d

Push Nut

705009406

$0.95

2200

Windshield Half Ass'y

703501024

$399.99

2300

Wind Deflector

715003078

$137.99
