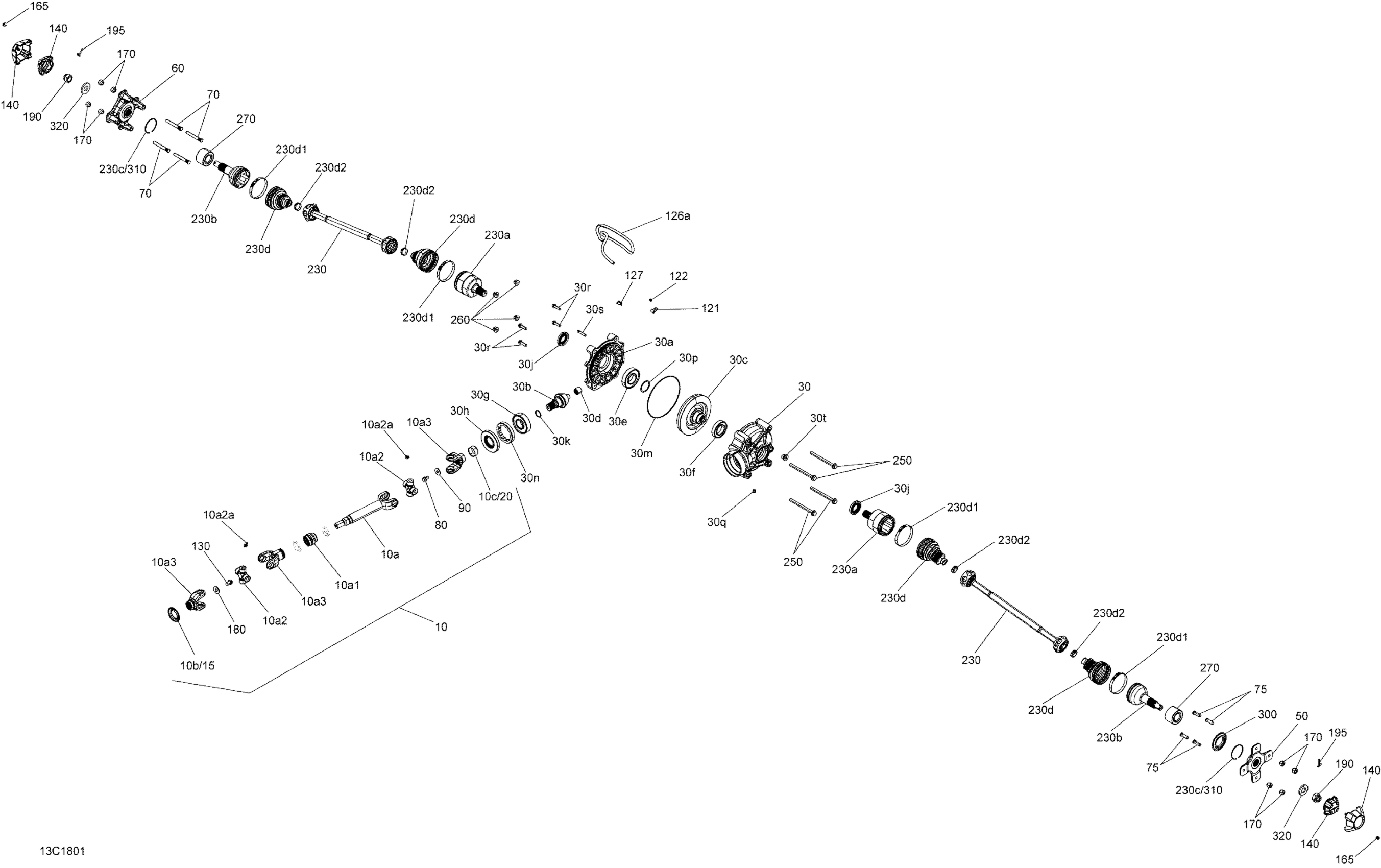

Can-Am Commander MAX 1000R EFI, 2018 Rear Drive Commander Diagram

#

Description
Price

10>10c

Shaft Ass'y Kit

703500985

$110.74

10a

Shaft Ass'y Kit

703500985

$110.74

10a1

Rubber Boot

715900118

$13.83

10a2

Universal Joint Ass'y | T3

703500846

$78.43

10a2a

Grease Fitting | T3

715900295

$4.62

10a3

Joint | T3

715900436

$23.05

10b

Protector

705501123

$7.37

10c

Wear Ring | 4X4

705400036

$25.35

15

Protector

705501123

$7.37

20

Not Available As Spare Part - Friction Washer

Unavailable

30>30t

Final Drive Unit | Includes 30 to 30u

705502517

$1,799.97

30a

Rear Cover

705502518

$175.35

30b

10 Tooth Gear

705501871

$327.66

30c

36 Tooth Gear

705502109

$470.74

30d

Needle Bearing

705501874

$68.43

30e

Ball Bearing

705501875

$74.58

30f

Ball Bearing

705501876

$74.58

30g

Ball Bearing

705501877

$74.58

30h

Oil Seal

705501878

$36.89

30j

Oil Seal

705502110

$18.43

30k

Oil Seal

705501880

$15.35

30m

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$8.45

30n

Nut

705501882

$36.89

30p

Shim Kit

705501883

$46.12

30q

Drain Plug | After May 30, 2014

705501885

$12.68

30r

Bolt

705501886

$6.75

30s

Vent Valve

705501887

$14.37

30t

Fill Level Plug

705501889

$18.43

50

Wheel Hub | LH Except MAX Model - Except Package XTP

705502486

$124.58

60

Wheel Hub | RH Except MAX Model - Except Package XTP

705502470

$124.58

70

Wheel Stud

705401964

$10.14

75

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

90

Flat Washer M10 | 4X4

250200014

$1.17

121

Open Clamp

414108400

$3.11

122

Pop Rivet 3/16"

390402200

$0.26

126

Was 293830177 Hose

219704388

$11.06

127

Clip

414227300

$1.45

130

Hex Flange Screw M12 X 16

250001039

$1.74

140

Wheel Cap | STD

705400921

$12.91

140

Wheel Cap | Package XMR 850, XMR 1000

705401541

$11.06

165

Valve Cap

293000110

$1.18

170

Steel Wheel Nut

250100042

$2.48

170

Black, Wheel Nut M10 X 1.25

250100184

$2.48

180

Conical Spring Washer M12

250200005

$2.65

190

Castle Nut M20

250100193

$6.66

195

Cotter Pin

250400084

$1.79

230>230d2

Rear - Premium CV Axle

705502411

$233.82

230a

Plunging Joint

715900433

$249.20

230b

JOINT_CV EXT - Call your local BRP dealership

715900429

Unavailable

230c

Circlip

705501781

$5.38

230d

Boot Kit

705501864

$41.51

230d1

Oetiker Clamp, 82.1 mm

715900241

$7.84

230d2

Oetiker Clamp, 27.3 mm

715900242

$7.84

250

Hex. Flange Screw M10 X 125

230602546

$6.08

260

Hex. Flange Elastic Nut M10

233201436

$1.74

270

Ball Bearing

293350150

$51.93

300

Wear Sleeve | 4X4

705501121

$7.28

310

Circlip

293370019

$4.98

320

Conical Spring Washer M20

250200170

$11.00
