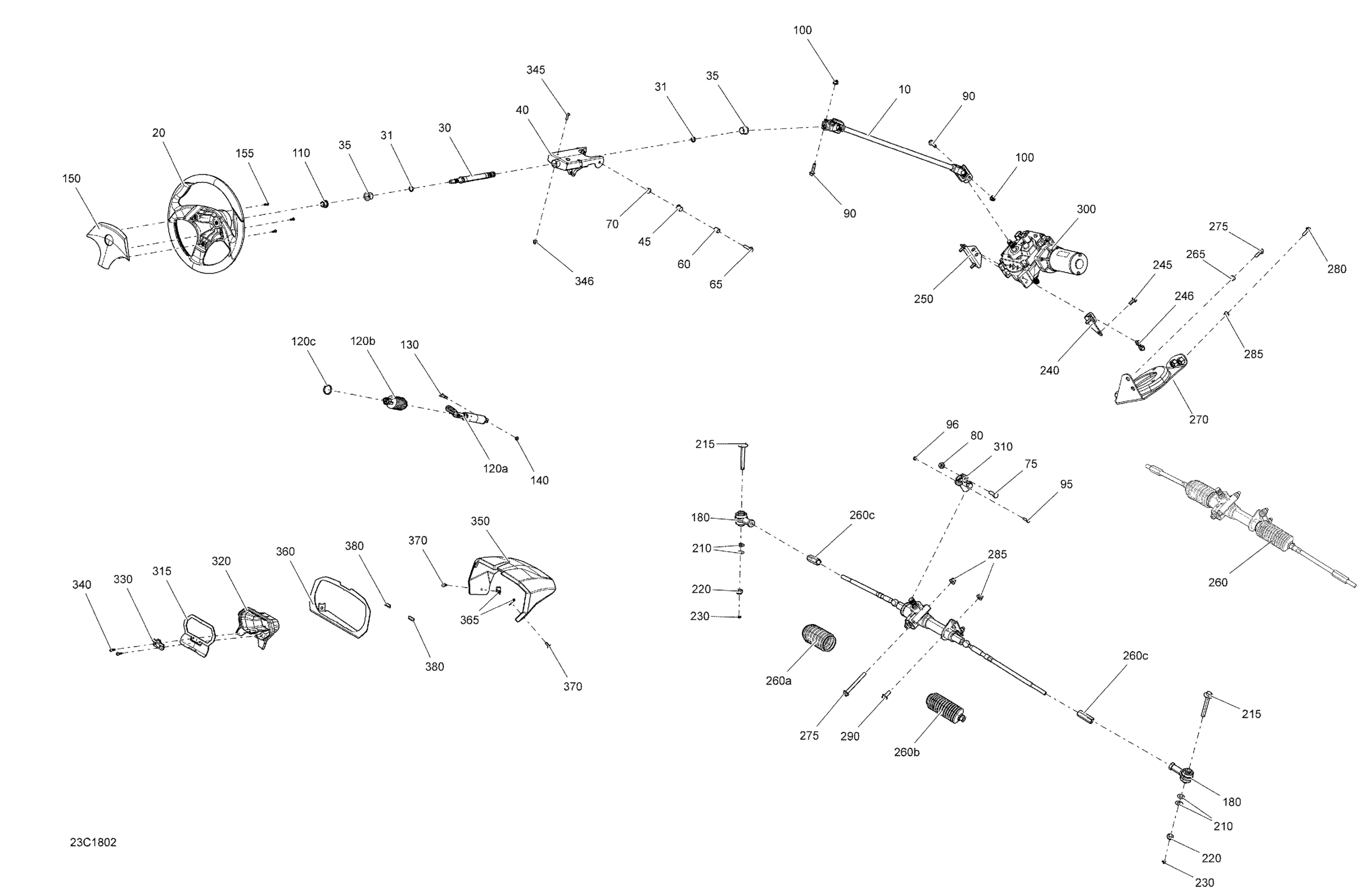

Can-Am Commander MAX 1000R EFI, 2018 Steering Commander - All Models Except Package STD Diagram

#

Description
Price

10

Steering Shaft Ass'y | Package XT, Hunter

709401687

$189.20

10

Steering Shaft Ass'y | Package XT, Hunter

709401687

$189.20

20

Steering Wheel | STD

709400650

$133.82

20>20a

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

715001134

Unavailable

20a

Cap | Package Hunter

715500341

Unavailable

20>20a

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

715001134

Unavailable

20a

Cap | Package Hunter

715500341

Unavailable

30

Steering Shaft

709401167

$46.12

31

O-Ring

293300144

$3.98

35

Steering Bushing

709402725

$3.17

40

Painted Steering Wheel Support

709401391

$83.05

45

Bushing

705600799

$3.72

60

Bushing

293900106

$4.42

65

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

70

Hex. Flange Elastic Nut M8

233281414

$1.14

75

Hex. Screw M10 X 35

207103586

$0.83

80

Elastic Stop Nut M10

232500416

$1.56

90

Hex. Flange Screw M8 X 35

250000986

$1.74

95

Hex. Screw M6 X 30

207063044

$0.98

96

Elastic Stop Nut M6

232561414

$1.55

100

Hex. Elastic Flange Nut M8

233281416

$1.25

110

Hex. Flange Elastic Nut M12

233221414

$5.10

120a

Adjustment Cylinder

709402506

$69.20

120b

Boot Tube Side

709401232

$13.62

120c

Tie-Rap 180 mm

414115200

$0.09

130

Socket Head Screw M8 X 16

250000669

$2.61

140

Elastic Stop Nut M6

232561414

$1.55

150

Steering Center | STD

709400780

$11.83

155

Phillips Screw K40 X 16

250000723

$0.81

180

Ball Joint

709401134

$50.34

210

Hardened Washer

706200281

$2.34

215

Hexagonal Screw M12 X 88

250000657

$5.19

220

Elastic Stop Nut M12

232521416

$1.40

230

Cotter Pin

211400017

$0.25

240

RH Power Steering Support

709402178

$12.68

245

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

250

Left DPS Support

709401869

$10.98

260>260c

Rack And Pinion Steering

709402387

$470.74

260a

Boot Kit, Pinion Side

715900235

$55.35

260b

Boot Kit, Tube Side

715900236

$55.35

260c

Nut Tie Rod End

715900237

$13.83

265

Hex. Flange Elastic Nut M8

233281414

$1.14

265

Hex. Flange Elastic Nut M8

233281414

$1.14

270

Power Steering Support Ass'y | Package XT, Hunter

709402176

$23.05

270

Power Steering Support Ass'y | Package XT, Hunter

709402176

$23.05

275

Hex Flange Screw DIN.6921 - Call your local BRP dealership

230600046

$2.61

280

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

280

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

285

Hex. Flange Elastic Nut M10

233201436

$1.74

290

Hex. Flange Screw M10 X 25

207602546

$1.74

300

Power Steering Ass'y

709402727

Unavailable

310

Coupling

709401719

$32.28

315

Cluster Support | STD

709400760

$23.05

320

Speedometer Cover

709400514

$15.35

330

Latch Indicator Cover

709400573

$10.98

340

Torx Screw Truss Head K50X20 T20

250000760

$1.74

345

Torx Screw M6 X 20

250000722

$1.34

346

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

350

Upper Cluster Cover | X, XT

707900124

$15.35

360

Cluster Support | X, XT

707900013

$15.35

365

Panel Nut M6 X 1.0

250100198

$1.73

370

Torx Truss Screw M6 X 16

250000721

$1.39

380a

Gasket, Neoprene 2000Mm Long

219704476

$12.64
