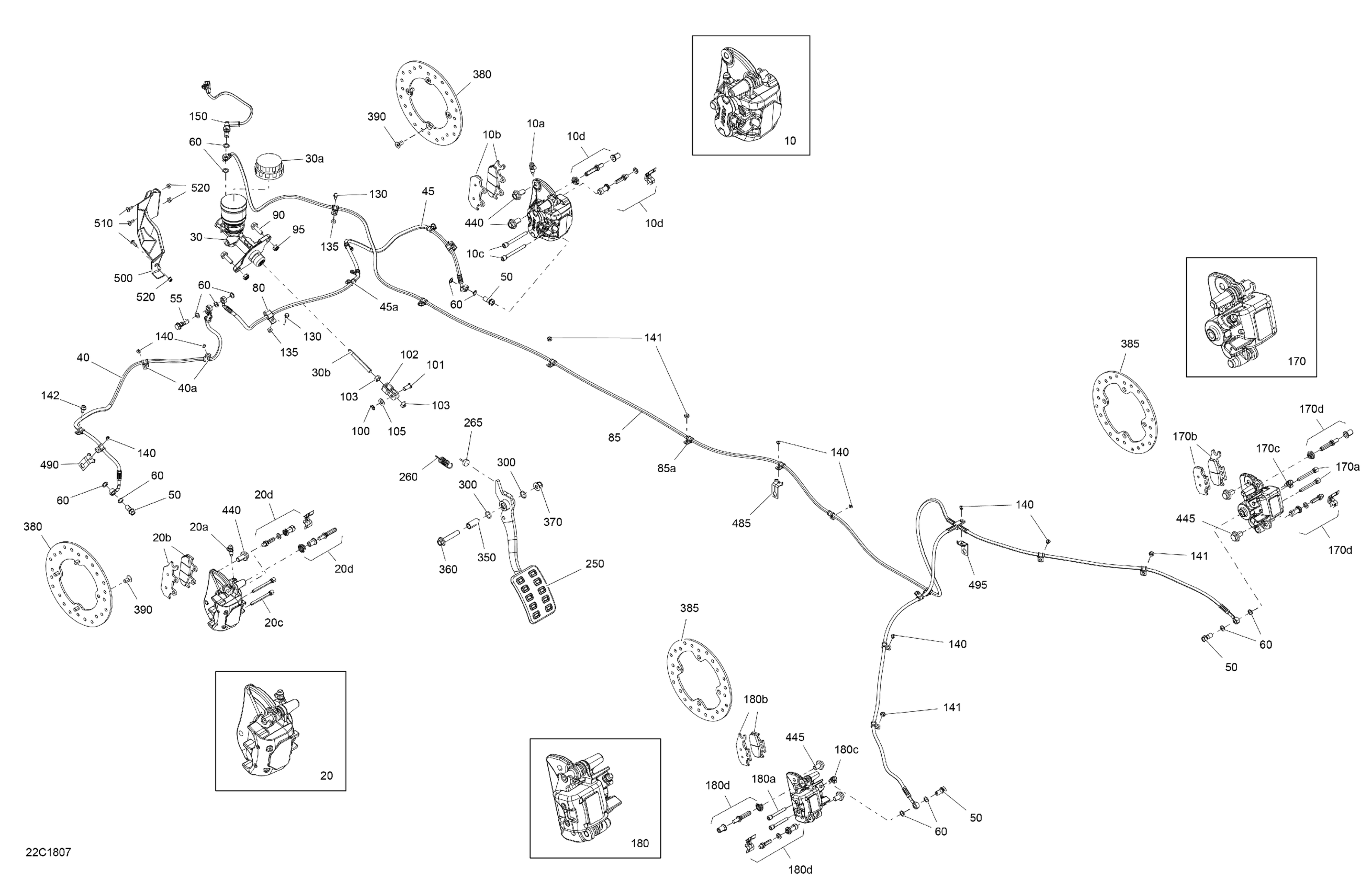

Can-Am Commander MAX 1000R EFI, 2018 Brakes - Commander - Model MAX Diagram

#

Description
Price

10

RH Caliper Ass'y | Includes 71 to 71d

705601129

$286.89

10a

Bleeding Screw

705600080

$15.22

10b

RH Brake Pad Kit

705601150

$49.39

10c

Hanger Pin Kit

705601151

$17.66

10d

Spring And Bolt Kit

715500385

$23.05

20

LH Caliper Ass'y | Includes 57 to 57d

705601128

$286.89

20a

Bleeding Screw

705600080

$15.22

20b

LH Brake Pad Kit

705601149

$49.39

20c

Hanger Pin Kit

705601151

$17.66

20d

Spring And Bolt Kit

715500385

$23.05

30

Master Cylinder Ass'y | Includes 11 to 13

705601505

$230.74

30a

Diaphragm Cap Kit

715500332

$27.66

30b

Master Cylinder Rod

705600833

$18.43

40

LH Front Hose | Includes 96 to 96a

705601194

$78.43

40a

Clamp

293650256

$4.36

45

RH Front Flexible Hose Ass'y | Includes 1 to 1a

705601195

$78.43

45a

Clamp

293650256

$4.36

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

55

Double Banjo Bolt

705601723

$7.60

60

Copper Washer

705601628

$4.34

80

Clamp

293650220

$0.85

85

Rear Flexible Hose Ass'y | Includes 20 to 20a

705601173

$156.89

85a

Clamp

293650256

$4.36

90

Hex. Flange Screw M8 X 25

207682544

$0.90

95

Hex. Elastic Stop Nut M8

232581414

$0.47

100

Cotter Pin

371800700

$0.98

101

Pin | Not Shown

250400058

$7.12

102

Yoke | Not Shown

705601142

$14.75

103

Hex. Nut M8

232081414

$0.60

105

Flat Washer M8

234081430

$1.74

130

Hex. Forming Screw M5 X 16

210251650

$0.92

135

Elastic Flange Nut M5

233251494

$1.74

140

Pop Rivet 3/16 X ,425

293150293

$0.26

141

Elastic Stop Nut M6

232561434

$1.55

142

Hex. Flange Screw M6 X 10

210261040

$1.25

150

Brake Switch

705601250

$59.97

170

RH Rear Caliper Ass'y | Includes 90 to 90d

705601174

$210.74

170a

Pin Set (2)

705600081

$19.20

170b

RH Brake Pad Kit

705601147

$49.39

170c

Bleeding Screw

705600080

$15.22

170d

Spring, Protector And Bolt Kit

715500384

$23.05

180

LH Rear Caliper Ass'y | Includes 91 to 91d

705601175

$210.74

180a

Pin Set (2)

705600081

$19.20

180b

LH Brake Pad Kit

705600398

$49.39

180c

Bleeding Screw

705600080

$15.22

180d

Spring, Protector And Bolt Kit

715500384

$23.05

250

Brake Pedal

705600724

$55.35

260

Brake Pedal Spring

705600792

$9.22

265

Rubber Stopper

708000759

$3.61

300

O-Ring

293300144

$3.98

350

Inner Spacer

705600815

$10.98

360

Hex. Flange Screw M10 X 55

207605544

$2.78

370

Hex. Flange Elastic Nut M10

233201414

$1.26

380

Disc Brake

705601178

$103.82

385

Brake Disc

705600684

$66.49

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

440

Hex. Flange Screw M10 X 20

250001134

$1.46

445

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

485

Bracket

705601337

$2.69

490

Bracket

705601337

$2.69

495

Bracket

705601337

$2.69

500

LH Front Deflector

705600917

$7.60

510

Torx Screw M5 X 14

250000742

$1.20

520

Elastic Flange Nut M5

233251494

$1.74
