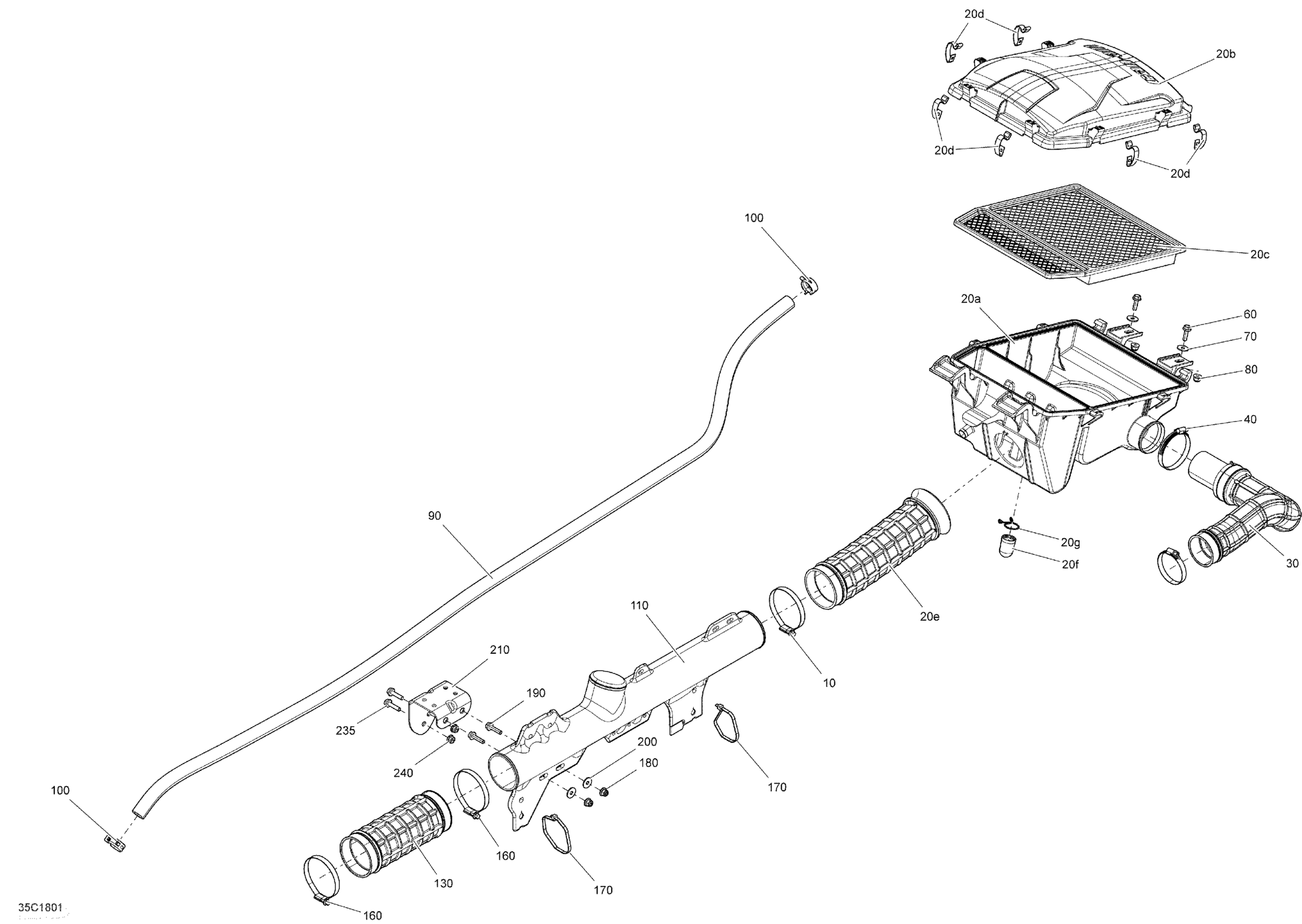

Can-Am Commander MAX 1000R EFI, 2018 Air Intake Commander Diagram

#

Description
Price

10

Norma Clamp

293650091

$11.12

20a

Air Intake Silencer Base

707800517

$54.99

20b

Air Intake Silencer Cover

707800326

$33.99

20c

Air Filter

707800327

$52.99

20d

Cover Bracket

707800249

$9.39

20e

Intake Adaptor

707800329

$48.99

20f

Drain Tube

707800080

$8.29

20g

Retainer Clip

707800278

$13.99

30

Intake Adaptor

707800322

$61.99

40

Norma Clamp

293650079

$11.60

60

Hex. Flange Screw M6 X 20

207662044

$2.00

70

Flat Washer

250200082

$0.42

80

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

90

Was 707800411 Hose 15.88 mm

219704438

$12.99

100

Norma Spring Clamp

293650213

$3.17

110

Intake Adaptor

707800515

$67.99

130

Intake Adaptor

707800541

$61.99

160

Norma Clamp

293650091

$11.12

170

Tie Wrap 368 mm

293750008

$1.04

180

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

190

Hex. Flange Screw M6 X 25

207662544

$0.64

200

Flat Washer

250200082

$0.42

210

Rear Support

707800560

$18.55

235

Hex. Flange Screw M6 X 25

207662544

$0.64

240

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
