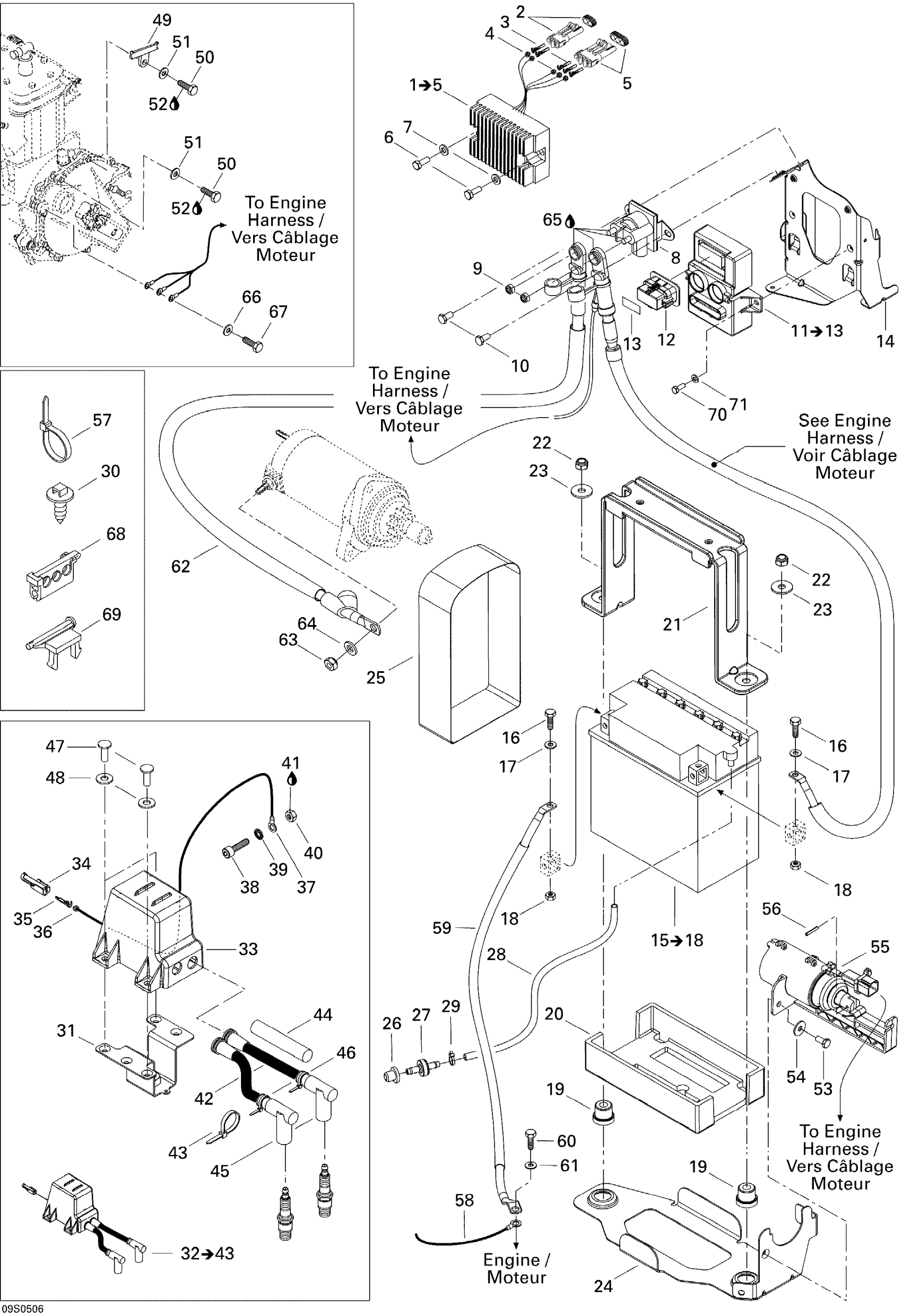

Sea-doo 3D RFI, 2005 Electrical System Diagram

#

Description
Price

1

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

Unavailable

2

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$27.58

3

Male Terminal

278000631

$4.00

4

Male Housing, 2 Circuits

409206900

$8.72

5

Male Terminal

515175568

$7.25

6

Hex. Screw M6 X 30, Scotch Grip

207363060

Unavailable

7

Stainless Flat Washer M6

234061600

$0.25

8

Starter Relay

278003012

$35.07

9

Hex. Elastic Stop Nut M6

232561600

$0.92

10

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

11

VCM Electromic Module | Includes 11 to 13

278001999

Unavailable

12

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

13

Sticker

278002103

Unavailable

14

MODULES SUPPORT - Call your local BRP dealership

278002009

Unavailable

15

Battery 19A | Includes 5 to 8

278001756

$144.75

16

Hex. Screw M6 X 16

207161644

$0.61

17

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

18

Hex. Nut M6

232061414

$0.44

19

BUSHING - Call your local BRP dealership

278001940

Unavailable

20

LOWER BATTERY PAD - Call your local BRP dealership

278001976

Unavailable

21

BATTERY SUPPORT - Call your local BRP dealership

278001677

Unavailable

22

Hex. Elastic Nut M8

232581600

$1.25

23

Flat Washer 8 mm, Stainless

234082600

$1.98

24

Battery Braket

278001946

Unavailable

25

Battery Strap 297mm

278001765

Unavailable

26

Grommet

293720029

$1.13

27

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

28

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

29

Tie Wrap 94 mm | 4X4

293750001

$0.83

30

Mount Dart

293730040

$0.86

31

Support

278001983

Unavailable

32

Ignition Coil Ass'y | Includes 32 to 43

278001926

Unavailable

33

Ignition Coil

278001546

$129.32

34

Female Housing, 1 Circuit

278000161

$8.72

35

Male Terminal

409004300

$5.30

36

Wire Seal

278000218

$3.48

37

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

38

Socket Head Screw M6 X 20

205062044

$1.07

39

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

40

Elastic Stop Nut M6

232561414

$1.55

41

Loctite 271, 10 ml

293800005

$20.77

42

Spark Plug Wire

278001927

Unavailable

42

Spark Plug Wire

278001465

Unavailable

43

Tie Wrap 142 mm

293750002

$0.88

44

Was 409901700 Tubing (9 mm)

219704399

$77.58

45

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

46

Tie Wrap 142 mm

293750002

$0.88

47

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

48

Stainless Flat Washer M6

234061600

$0.25

49

Clip

278001873

Unavailable

50

TAPTITE SCREW M6 X 25 - Call your local BRP dealership

420841543

Unavailable

51

Stainless Flat Washer M6

234061600

$0.25

52

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

53

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

54

Flat Washer M6, Stainless

234062600

$0.64

55

Solenoid Ass'y

278001954

Unavailable

56

Spring Pin

250400014

$2.72

57

Tie Wrap 94 mm | 4X4

293750001

$0.83

57

Tie Wrap 142 mm

293750002

$0.88

57

Tie-Rap 180 mm

414115200

$0.09

57

Tie Wrap 368 mm

293750008

$0.85

58

Ground Wire

278002092

Unavailable

59

Battery Ground Cable

278001918

Unavailable

60

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.57

61

Stainless, Flat Washer 8 mm

234081600

$0.46

62

Starter Cable

278002060

Unavailable

63

Hex. Elastic Stop Nut M6

232561600

$0.92

64

Stainless Flat Washer M6

234061600

$0.25

65

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

66

Stainless Flat Washer M6

234061600

$0.25

67

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91

68

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

69

Collar Support

278001096

Unavailable

70

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

71

Flat Washer M6, Stainless

234062600

$0.64
