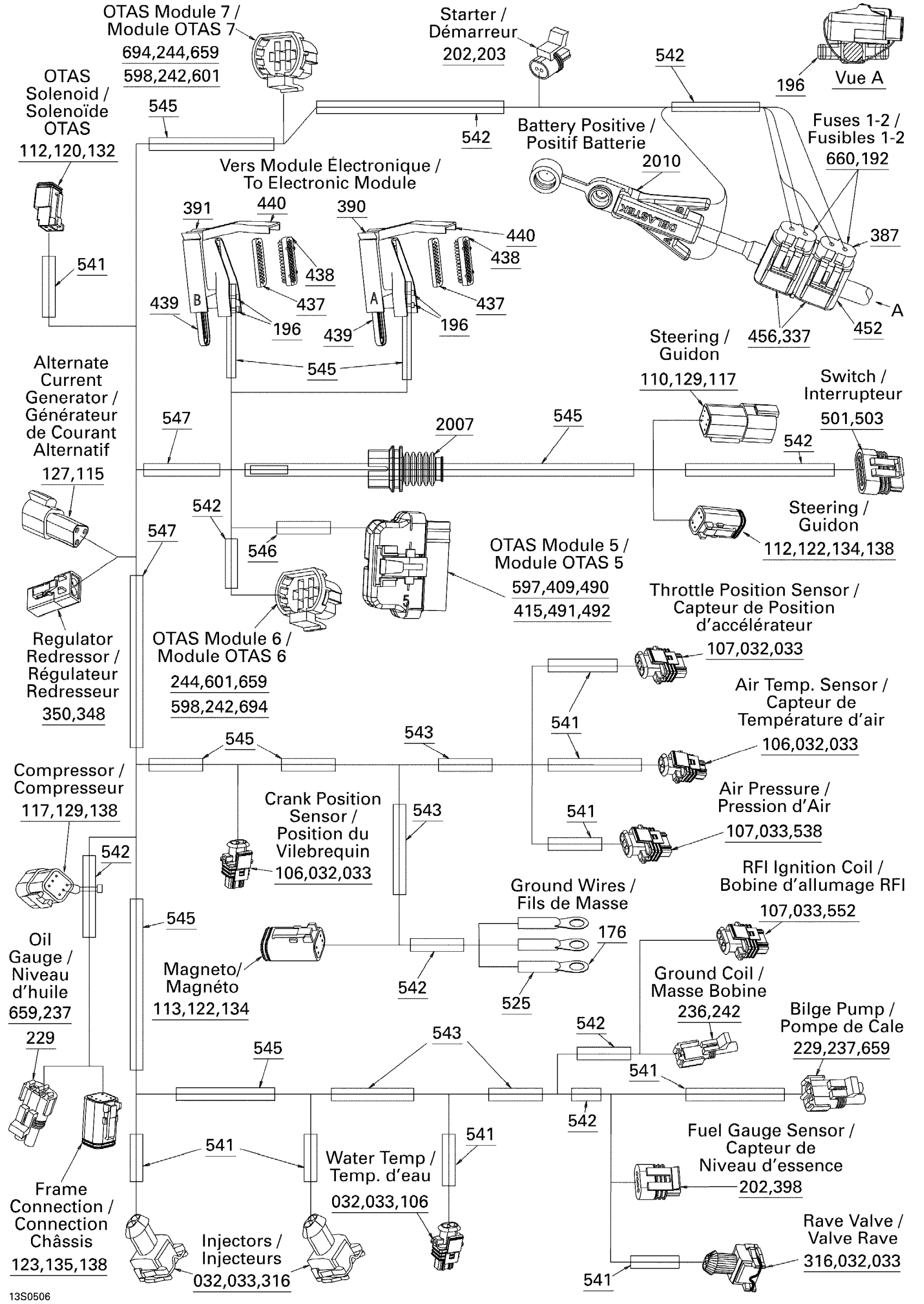

Sea-doo 3D RFI, 2005 Electrical Harness Diagram

#

Description
Price

1

WIRING HARNESS ASS'Y - Call your local BRP dealership | Includes 001 to 2010

278002001

Unavailable

32

Female Terminal

278000998

$4.39

33

Wire Seal

278000999

$3.19

106

Male Housing, 2 Circuits

278001005

$19.49

107

Male Housing, 3 Circuits

278000997

$19.49

110

Male Terminal

278000631

$4.39

111

Male Terminal

515175823

$4.55

112

Female Terminal

278000632

$2.09

113

FEMALE TERMINAL - Call your local BRP dealership

278001276

Unavailable

115

Male Housing

278002378

$13.99

117

Male Terminal Housing, 6 Circuits

710001539

$19.99

118

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001742

Unavailable

120

Female Connector, 2 Circuits

409207300

$9.85

122

Male Connector, 4 Circuits | CE

278000739

$19.49

123

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

124

MALE HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001743

Unavailable

127

Male Lock, 3 Circuits

409207600

$3.19

129

Female Lock, 6 Circuits

278000735

$3.19

130

LOCK MALE, 8 CIRCUITS - Call your local BRP dealership

515175276

Unavailable

132

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

134

Male Lock, 4 Circuits | CE

278000738

$3.09

135

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

136

SECONDARY LOCK, 8 CIRCUITS - Call your local BRP dealership

278001744

Unavailable

138

Sealing Cap

293000052

$3.19

176

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

192

Fuse, 20 Amperes

409003900

$3.28

196

Tie Wrap 142 mm

293750002

$1.25

202

Female Terminal

278001114

$3.19

203

Male Connector, 2 Circuits

278001113

$16.86

229

Female Terminal

278000223

$3.19

236

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

237

Male Connector, 2 Circuits

278000220

$15.49

238

Male Housing, 3 Circuits

278000273

$9.59

242

Wire Seal

278000218

$4.39

244

Wire Seal

278000216

$3.19

316

Male Connector, 2 Circuits

278001003

$46.49

320

Female Terminal

515175567

$7.69

337

Female Terminal

710000113

$6.99

348

Female Terminal Housing, 2 Circuits

278001673

$23.49

350

Female Lock, 2 Circuits

278001671

$3.58

387

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

388

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

390

Not Available As Spare Part - Friction Washer

Unavailable

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

398

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

409

Plug

515175812

$2.19

415

Female Terminal

515175806

$0.99

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$9.12

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

Unavailable

452

HOUSING COVER - Call your local BRP dealership

710000342

Unavailable

456

Cushion

278000805

$3.28

490

SEAL WIRE - Call your local BRP dealership

710000394

Unavailable

491

FEMALE HOUSING - Call your local BRP dealership

710000395

Unavailable

492

Female Housing 32 Pins

710000396

Unavailable

501

FEMALE TERMINAL - Call your local BRP dealership

710000412

Unavailable

503

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710000414

Unavailable

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

538

FEMALE TERMINAL - Call your local BRP dealership

278001210

Unavailable

541

Not Available As Spare Part - Friction Washer

Unavailable

542

Not Available As Spare Part - Friction Washer

Unavailable

543

Not Available As Spare Part - Friction Washer

Unavailable

545

Not Available As Spare Part - Friction Washer

Unavailable

546

Not Available As Spare Part - Friction Washer

Unavailable

547

Not Available As Spare Part - Friction Washer

Unavailable

552

Female Terminal

278001310

Unavailable

597

Terminal Retainer

515176055

Unavailable

598

Female Housing

515176051

Unavailable

601

Latch

515176056

Unavailable

643

Female Terminal

278001977

Unavailable

659

Wire Seal

278001065

$7.69

660

Fuse Holder

278001987

$15.49

693

FEMALE TERMINAL - Call your local BRP dealership

278002031

Unavailable

694

Pt Female Housing

278002051

Unavailable

2007

GROMMET - Call your local BRP dealership

293720042

Unavailable

2010

Battery Cable

278002082
