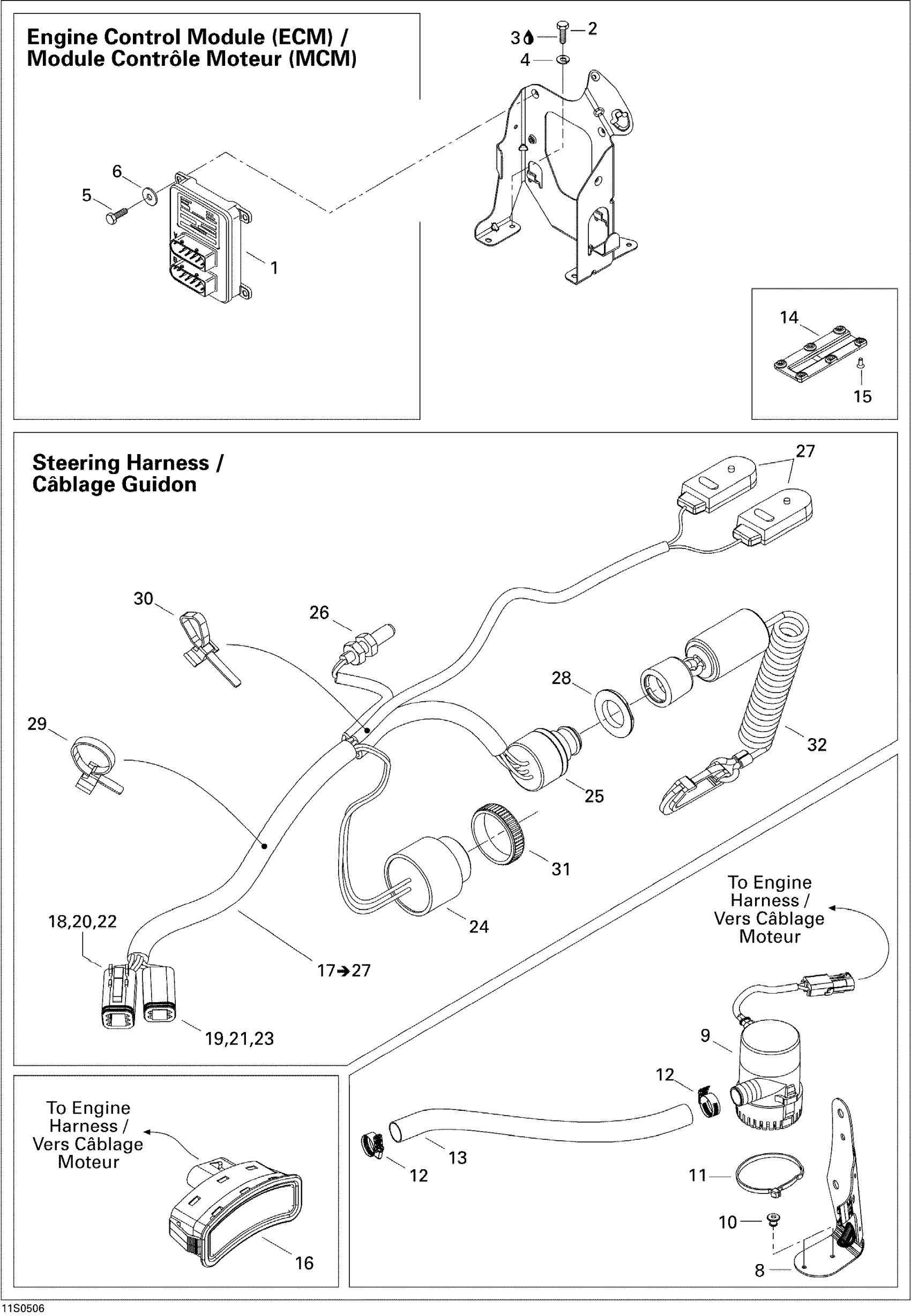

Sea-doo 3D RFI, 2005 Electrical Accessories Diagram

#

Description
Price

1

ECM, ENGINE CONTROL MODULE - Call your local BRP dealership

420665225

Unavailable

2

Hex. Screw 10-14 X 7/8”

211000023

$2.91

3

Loctite 271, 10 ml

293800005

$20.77

4

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

5

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

6

Stainless Flat Washer M6

234061600

$0.25

7

MODULES SUPPORT - Call your local BRP dealership

278002009

Unavailable

8

BILGE SUPPORT - Call your local BRP dealership

271000897

Unavailable

9

Bilge Pump This part replaces 204470220.

278002020

$79.92

10

Pop-Rivet 5/32

293150059

$0.51

11

Tie Wrap 368 mm

293750008

$0.85

12

Tridon Gear Clamp

293650172

$2.68

13

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

14

Shoe Ride Cap

291002035

Unavailable

15

Phillips Screw M5 x 12

250000319

$1.03

16

Multi-fonction Indicator

278001903

Unavailable

16

MULTI-FONCTION INDICATOR - Call your local BRP dealership | Base

278002036

Unavailable

17

Steering Harness | Includes 17 to 27

278002056

Unavailable

18

Male Terminal

278000631

$4.00

19

Female Terminal

278000632

$1.69

20

Female Housing, 4 Circuits

278000635

$13.60

21

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

22

Female Wedge, 4 Circuits

278000636

$4.00

23

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

24

Buzzer

278001943

Unavailable

25

SAFETY SWITCH - Call your local BRP dealership

278001944

Unavailable

26

DESS Post

278002029

Unavailable

27

START-STOP DOUBLE SWITCH - Call your local BRP dealership

278002057

Unavailable

28

Safety Nut (DESS Switch)

278002963

$2.72

29

Tie-Rap 173 mm

293750009

$0.85

30

Tie-Rap 173 mm

293750009

$0.85

31

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

32

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$68.87
