Partiron

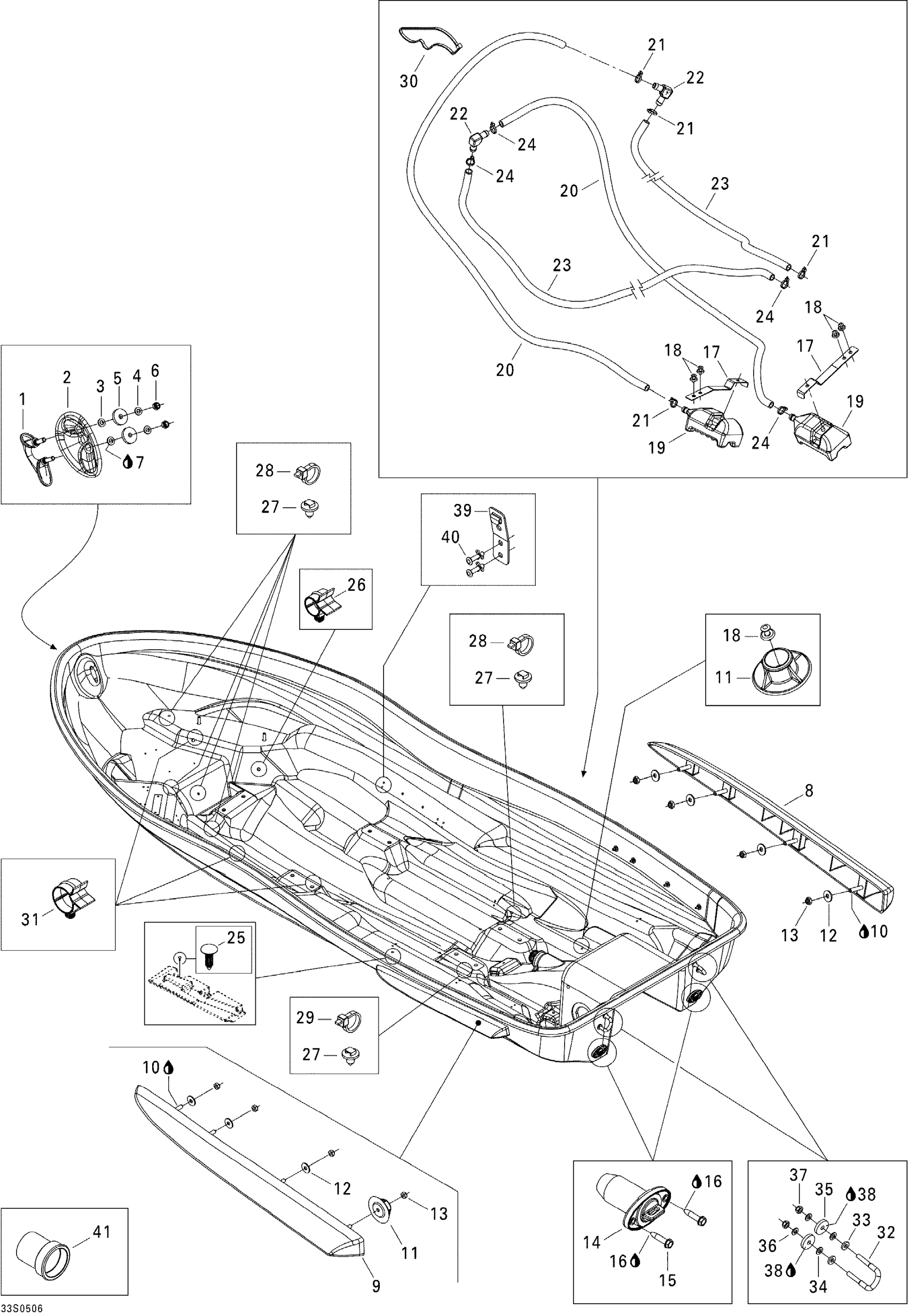

Sea-doo 3D RFI, 2005 Hull Diagram

#

Description
Price

1

Eye-Bow (Black) This part replaces 292000708.

292000452

$42.99

2

Black Shell

292001837

$20.99

3

Stainless, Flat Washer 8 mm

234081600

$0.55

4

Flat Washer 8 mm, Stainless

250200175

$3.06

5

Rubber Washer

293830037

$2.68

6

Hex. Elastic Nut M8

232581600

$1.48

7

Silicone Sealant 51388, 300 ml

296000309

$36.99

8

RH SPONSON - Call your local BRP dealership

292000411

Unavailable

9

LH SPONSON - Call your local BRP dealership

292000412

Unavailable

10

Silicone Sealant 51388, 300 ml

296000309

$36.99

11

Insulator

292000992

Unavailable

12

Flat Washer M6, Stainless

234062600

$0.77

13

Hex. Elastic Stop Nut M6

232561600

$1.15

14

Drain Plug

292001252

$36.99

15

Hex. Screw 10-14 X 7/8”

211000023

$3.59

16

Silicone Sealant 51388, 300 ml

296000309

$36.99

17

LH SPRING CLIP - Call your local BRP dealership

292000398

Unavailable

18

Avdel Rivet 3/16"

293150037

$0.56

19

Bailer Screen

292000688

Unavailable

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

21

Tie Wrap 94 mm | 4X4

293750001

$1.03

22

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

23

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

24

Tie Wrap 94 mm | 4X4

293750001

$1.03

25

Black, Dart

293730006

$0.99

26

Cable Retainer

275500527

$2.68

27

Mount Dart

293730040

$1.04

28

Tie-Rap 180 mm

414115200

$0.11

29

Tie Wrap 368 mm

293750008

$1.04

30

Tie Wrap 368 mm

293750008

$1.04

31

Retainer

275500590

$9.69

32

U-Clamp

292000933

$59.49

33

Flat Washer M8.5 x 18

293050001

$3.07

34

Flat Washer 8 mm, Nylon

234081100

$1.39

35

Rubber Washer

293830037

$2.68

36

Flat Washer 8 mm, Stainless

250200175

$3.06

37

Hex. Elastic Nut M8

232581600

$1.48

38

Silicone Sealant 51388, 300 ml

296000309

$36.99

39

Strap Clip

293850030

$11.12

40

Avdel Rivet 3/16"

293150037

$0.56

41

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable
