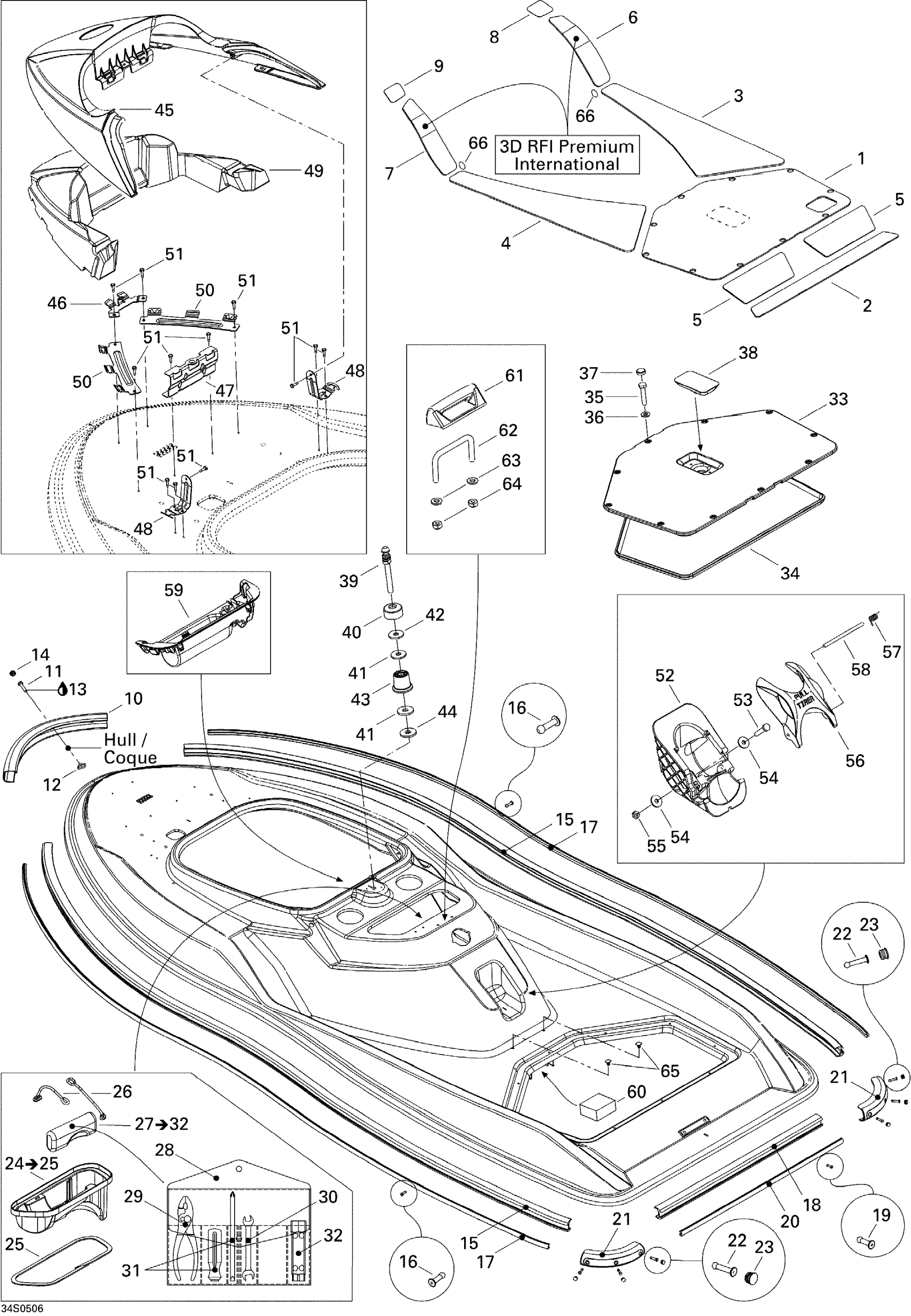

Sea-doo 3D RFI, 2005 Body Diagram

#

Description
Price

1

Rear Door Carpet | Base

291002197

Unavailable

1

Rear Door Carpet | Premium

291002198

Unavailable

1

Rear Door Carpet | Premium International

291002199

Unavailable

2

Rear Carpet, Black | Base

291002202

Unavailable

2

Rear Carpet, Black | Premium

291002203

Unavailable

3

RH Center Carpet | Base

291002204

Unavailable

3

RH Center Carpet | Premium

291002205

Unavailable

4

LH Center Carpet | Base

291002206

Unavailable

4

LH Center Carpet | Premium

291002207

Unavailable

5

Rear Lateral Carpet | Base

291002208

Unavailable

5

Rear Lateral Carpet | Premium

291002209

Unavailable

6

RH Front Carpet | Premium International

291002219

Unavailable

7

LH Front Carpet | Premium International

291002220

Unavailable

8

RH ANTI-SKID - Call your local BRP dealership

291001758

Unavailable

9

LH Anti-Skid

291001759

Unavailable

10

BUMPER NOSE - Call your local BRP dealership

291000801

Unavailable

11

Phillips Screw M5 X 25

208652560

$3.39

12

NUT-WELD M5 - Call your local BRP dealership

250100044

Unavailable

13

Loctite 243, 10 ml

293800060

$21.49

14

Bumper Plug, Black

291001519

$5.49

15

Black, Side Bumper

204050270

$179.99

16

Pop Rivet 3/16"

293150005

$0.52

17

LATERAL BUMPER TRIM, BLACK - Call your local BRP dealership | Viper Red B-176

291000843

Unavailable

17

Lateral Bumper Trim, Yellow | Yellow B-244

291002019

Unavailable

18

REAR BUMPER, BLACK - Call your local BRP dealership

291002242

Unavailable

19

Pop Rivet 3/16"

293150005

$0.52

20

REAR BUMPER TRIM, BLACK - Call your local BRP dealership | Viper Red B-176

291000788

Unavailable

20

Bumper Trim, yellow | Yellow B-244

291002020

Unavailable

21

Bumper Corner

291002244

$48.99

22

Pop Rivet 3/16"

293150013

$1.37

23

Bumper Plug, Black

291000339

$2.99

24

Central Luggage Tray | Includes 24 to 25

269501251

Unavailable

25

Gasket, Neoprene 2000Mm Long

219704476

$15.36

26

Strap

269501299

$19.49

27

Tool Kit | Includes 27 to 32

294000687

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

FORK WRENCH - Call your local BRP dealership

529017300

Unavailable

31

DRIVER SCREW - Call your local BRP dealership

529019200

Unavailable

32

Socket Wrench 10/13 mm

529014900

$0.94

33

Rear Cover Ass

269501444

Unavailable

34

Was 293200017 Neoprene Seal

219704365

$149.99

35

Hex. Screw M6 X 30

207063060

$1.89

36

Stainless Flat Washer M6

234061600

$0.33

37

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

38

Foam Latch | CDN/USA

291002045

Unavailable

39

LATCH STUD - Call your local BRP dealership

291002040

Unavailable

40

Rubber Pad

293830025

Unavailable

41

Flat Washer 10 mm, Stainless

234002600

$2.22

42

Flat Washer 10 mm, Stainless

234001600

$1.15

43

Spacer Ring

291001089

Unavailable

44

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

45

Front Cover | Yellow B-244

277001238

Unavailable

45

Front Cover

277001417

Unavailable

46

Deflector Support

291002021

Unavailable

47

Central Deflector Support

291002037

Unavailable

48

Rear Deflector Support

291002038

Unavailable

49

Deflector Foam

291002039

Unavailable

50

Lateral Deflector Support

291002041

Unavailable

51

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

52

BASE - Call your local BRP dealership

269001019

Unavailable

53

Hex. Screw M6 X 30

207063060

$1.89

54

Flat Washer M6, Stainless

234062600

$0.77

55

Hex. Elastic Stop Nut M6

232561600

$1.15

56

BASE DOOR - Call your local BRP dealership

269001129

Unavailable

57

DOOR SPRING - Call your local BRP dealership

269001130

Unavailable

58

DOOR SHAFT - Call your local BRP dealership

269001131

Unavailable

59

EXTINGUISHER TRAY - Call your local BRP dealership

269501290

Unavailable

60

Deck Foam

291002031

Unavailable

61

Pole Hook

269001317

Unavailable

62

U BOLT - Call your local BRP dealership

269001142

Unavailable

63

Stainless Flat Washer M6

234061600

$0.33

64

Hex. Elastic Stop Nut M6

232561600

$1.15

65

Black, Dart

414644300

$0.98

66

Rond Sticker

219902509

Unavailable
