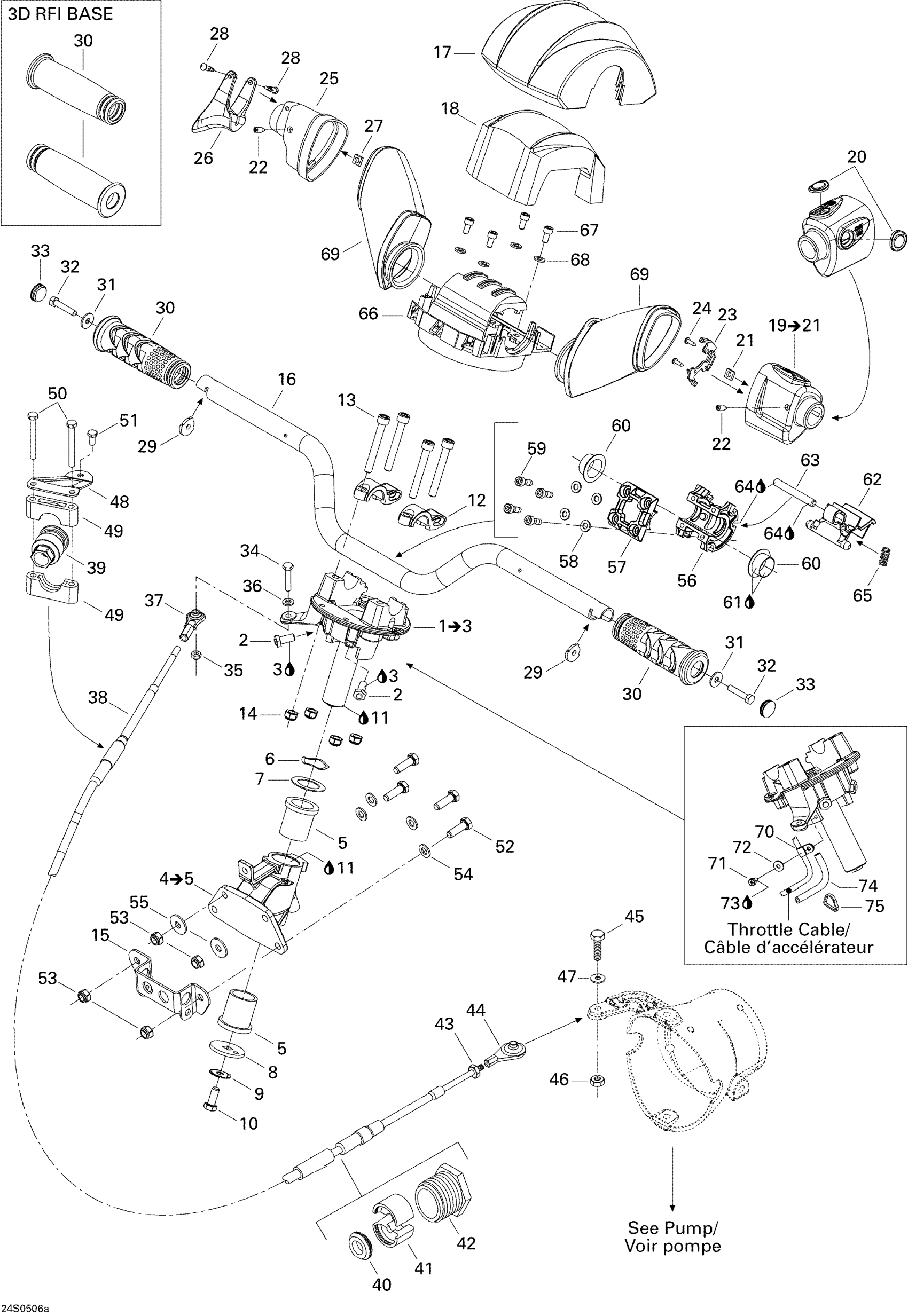

Sea-doo 3D RFI, 2005 Steering System 1 Diagram

#

Description
Price

1

DIRECTION ROD ASS'Y - Call your local BRP dealership | Includes 1 to 3

277001399

Unavailable

2

LOW SPEED CONTROL ACTUATOR - Call your local BRP dealership

278002030

Unavailable

3

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

4

Pillow Block Ass'y | Includes OTAS Sensor

296000243

Unavailable

5

BUSHING - Call your local BRP dealership

293900062

Unavailable

6

Spring Washer

211200008

Unavailable

7

SHIM - Call your local BRP dealership

293350006

Unavailable

8

RETAINER WASHER - Call your local BRP dealership

277001262

Unavailable

9

WASHER - Call your local BRP dealership

277001263

Unavailable

10

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

11

Synthetic Grease, 400 G

293550010

Unavailable

12

STEERING CLAMP - Call your local BRP dealership

277001253

Unavailable

13

Socket Head Screw M8 X 60

205086060

$4.19

14

Hex. Elastic Nut M8

232581600

$1.49

15

LATCH SUPPORT - Call your local BRP dealership

269001135

Unavailable

16

HANDLE BAR - Call your local BRP dealership

277001456

Unavailable

17

STEERING PAD - Call your local BRP dealership

277001212

Unavailable

18

PAD FOAM - Call your local BRP dealership

277001343

Unavailable

19

HOUSING ASS'Y - Call your local BRP dealership | Includes 19 to 21

277001257

Unavailable

20

Switch Knob

277000306

Unavailable

21

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

22

Socket Head Screw M6 X 16

250000036

Unavailable

23

Retainer Plate

277001213

Unavailable

24

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

25

THROTTLE HOUSING ASS'Y - Call your local BRP dealership

277000872

Unavailable

26

THROTTLE HANDLE - Call your local BRP dealership

277001261

Unavailable

27

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

28

PIN - Call your local BRP dealership

277000381

Unavailable

29

Insert Grip Handle

277001863

$8.83

30

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

30

Handle Grip Kit Red/Black | Premium, Viper Red B-176 This part replaces 277001245.

295500979

$31.99

30

Handle Grip | Premium, Yellow B-244

277001316

Unavailable

31

Flat Washer M6, Stainless

234062600

$1.49

32

Hex. Screw M6 X 30, Scotch Grip

250000002

$1.49

33

Black, Cap

277000203

$9.59

34

Hex. Screw M6 X 30

207063060

$1.89

35

Hex. Elastic Stop Nut M6

232561600

$1.49

36

Stainless Flat Washer M6

234061600

$1.49

37

Ball Joint

277000775

$51.99

38

Steering Cable

277001414

Unavailable

39

Ajustment Knob

277000782

$22.99

40

Rubber Washer

293830063

$1.90

41

Half Ring

277001527

$10.37

42

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

43

Hex. Nut 1/4"-28

211100056

$1.49

44

Ball Joint

277000775

$51.99

45

Hex. Screw M6 X 35

207063560

$2.19

46

Hex. Elastic Stop Nut M6

232561600

$1.49

47

Stainless Flat Washer M6

234061600

$1.49

48

Cable Support

277000738

Unavailable

49

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

50

Hex. Screw M6 X 55, Scotch Grip | Except Europe

207265560

$7.59

51

Hex. Screw M6 X 12, Scotch Grip

207361260

$1.49

52

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

53

Hex. Elastic Nut M8

232581600

$1.49

54

Stainless, Flat Washer 8 mm

234081600

$1.49

55

Flat Washer 8 mm, Stainless

234082600

$2.49

56

Block Indexing

277001264

Unavailable

57

Block Fixing Anodized

277001298

Unavailable

58

Stainless Flat Washer M6

234061600

$1.49

59

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.69

60

FLANGE BUSHING - Call your local BRP dealership

277001214

Unavailable

61

Synthetic Grease, 400 G

293550010

Unavailable

62

Ajustment Lever

277001217

Unavailable

63

ROD LOCK - Call your local BRP dealership

277001266

Unavailable

64

Synthetic Grease, 400 G

293550010

Unavailable

65

Compression Spring

277001267

Unavailable

66

PAD SUPPORT HANDLE - Call your local BRP dealership

277001254

Unavailable

67

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.59

68

Stainless Flat Washer M6

234061600

$1.49

69

COVER HANDLE - Call your local BRP dealership

277001313

Unavailable

70

OPEN CLAMP - Call your local BRP dealership

293850083

Unavailable

71

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

72

Flat Washer 4 mm, Stainless

234042600

$1.49

73

Loctite 243, 10 ml

293800060

$21.49

74

Tubing 6 Mm 3000Mm Long

219704425

$13.99

75

Tie Wrap 142 mm

293750002

$1.49
