Partiron

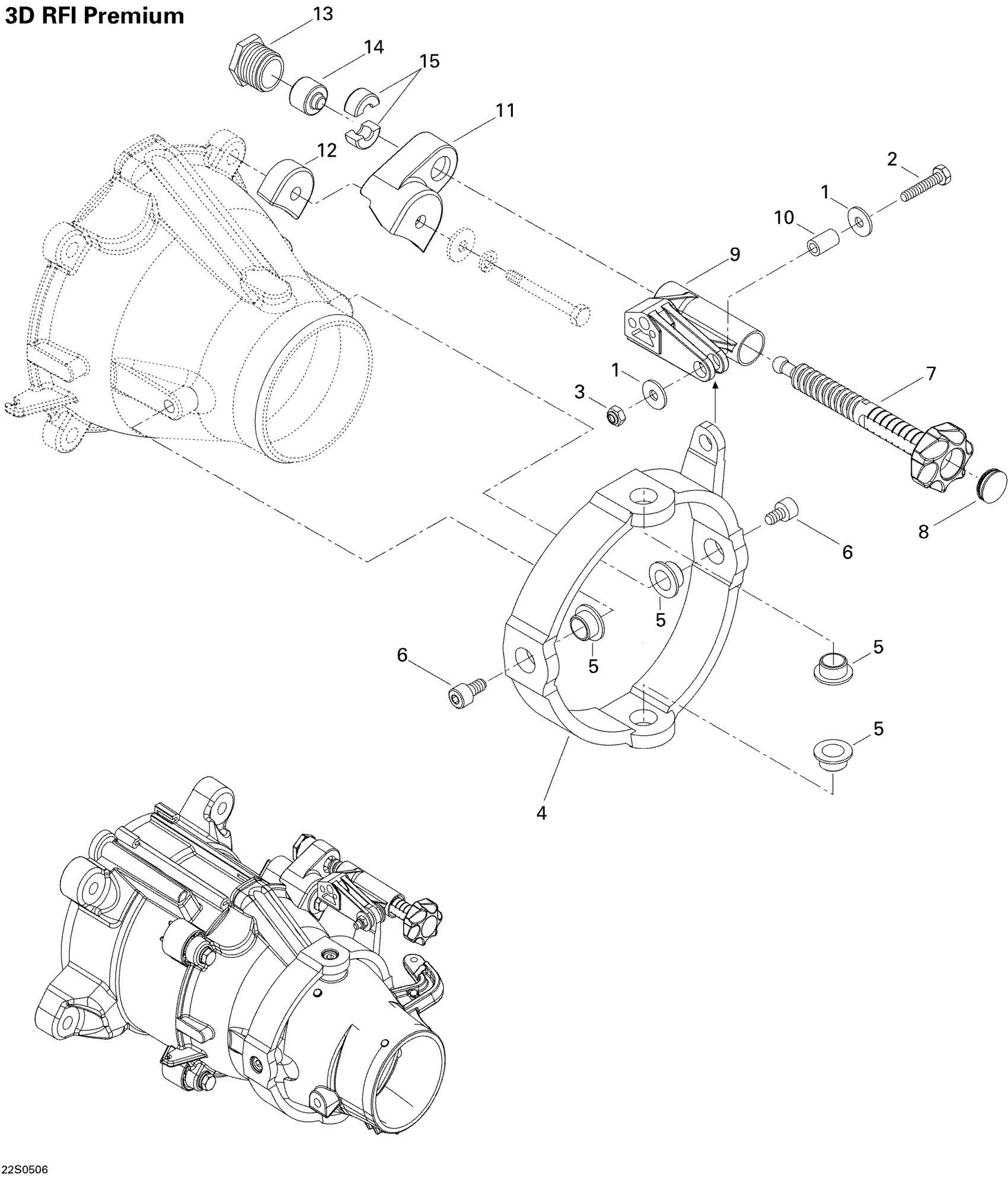

Sea-doo 3D RFI, 2005 Trim, Manual Diagram

#

Description
Price

1

Flat Washer M6, Stainless

234062600

$0.64

2

Hex. Screw M6 X 30

207063060

$1.51

3

Hex. Elastic Stop Nut M6

232561600

$0.92

4

Trim Ring, Black

266000013

$115.35

5

Venturi Bushing

293900007

$3.71

6

Socket Head Screw M8 X 10, Scotch Grip

211000127

$3.07

7

Adjuster Screw

266000012

Unavailable

8

Black, Cap

277000203

$7.48

9

THREADED PIVOT - Call your local BRP dealership

266000003

Unavailable

10

SPACER - Call your local BRP dealership

266000002

Unavailable

11

CABLE LOCK SUPPORT - Call your local BRP dealership

266000005

$9.20

12

SPACER - Call your local BRP dealership

266000004

$9.20

13

Steering Cable Lock This part replaces 277000784.

277001729

$10.41

14

RUBBER SPACER - Call your local BRP dealership

266000007

$7.66

15

HALF-RING - Call your local BRP dealership

272000071

Unavailable
