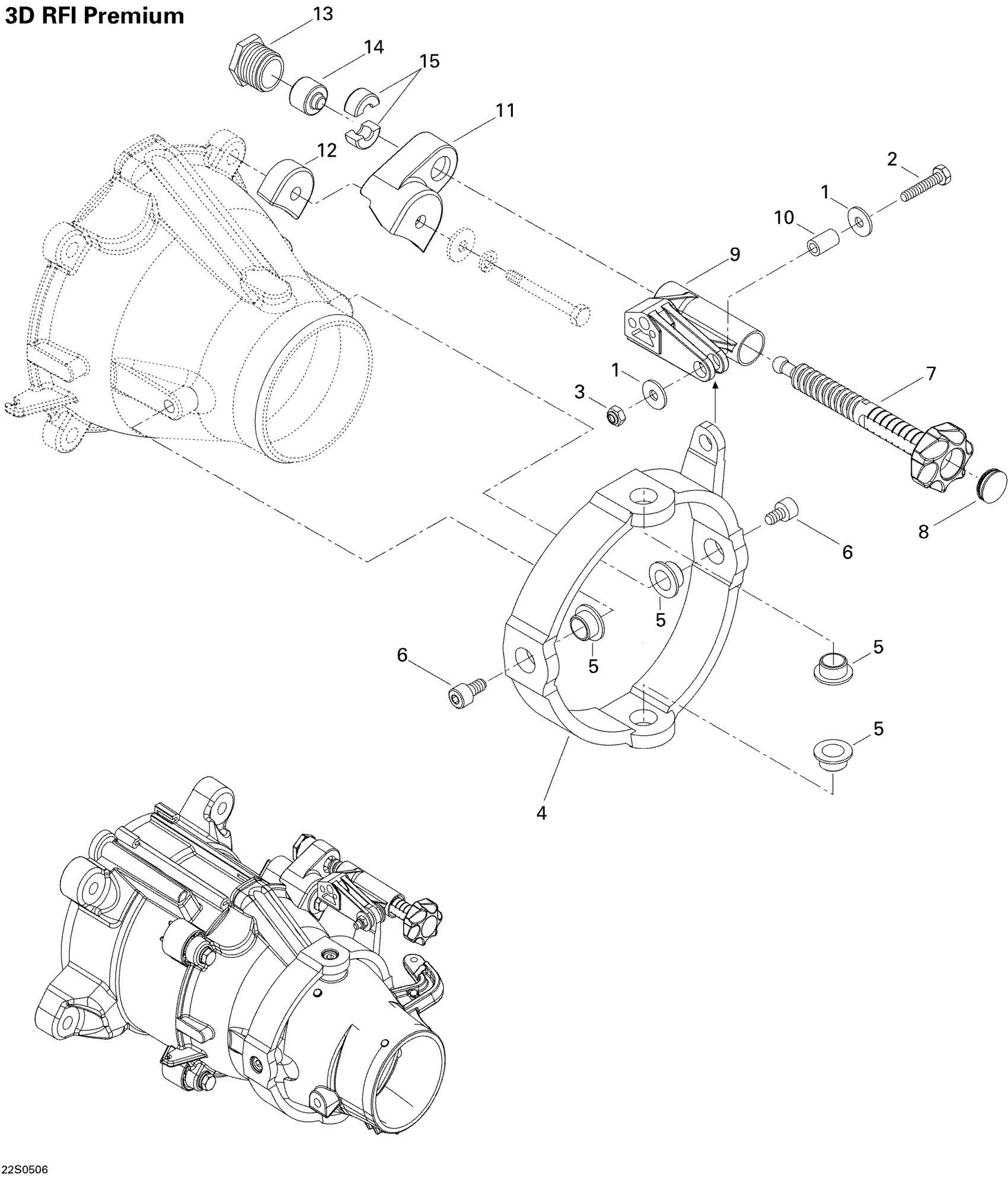

Sea-doo 3D RFI, 2005 05- Trim, Manual Diagram

Flat Washer M6, Stainless

234062600

$0.77

Hex. Screw M6 X 30

207063060

$1.89

Hex. Elastic Stop Nut M6

232561600

$1.15

Trim Ring, Black

266000013

$119.99

Venturi Bushing

293900007

$5.45

Socket Head Screw M8 X 10, Scotch Grip

211000127

$3.99

Adjuster Screw

266000012

Unavailable

Black, Cap

277000203

$9.39

THREADED PIVOT - Call your local BRP dealership

266000003

Unavailable

SPACER - Call your local BRP dealership

266000002

Unavailable

CABLE LOCK SUPPORT - Call your local BRP dealership

266000005

Unavailable

SPACER - Call your local BRP dealership

266000004

Unavailable

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

RUBBER SPACER - Call your local BRP dealership

266000007

Unavailable

HALF-RING - Call your local BRP dealership

272000071

Unavailable
