05- Pump

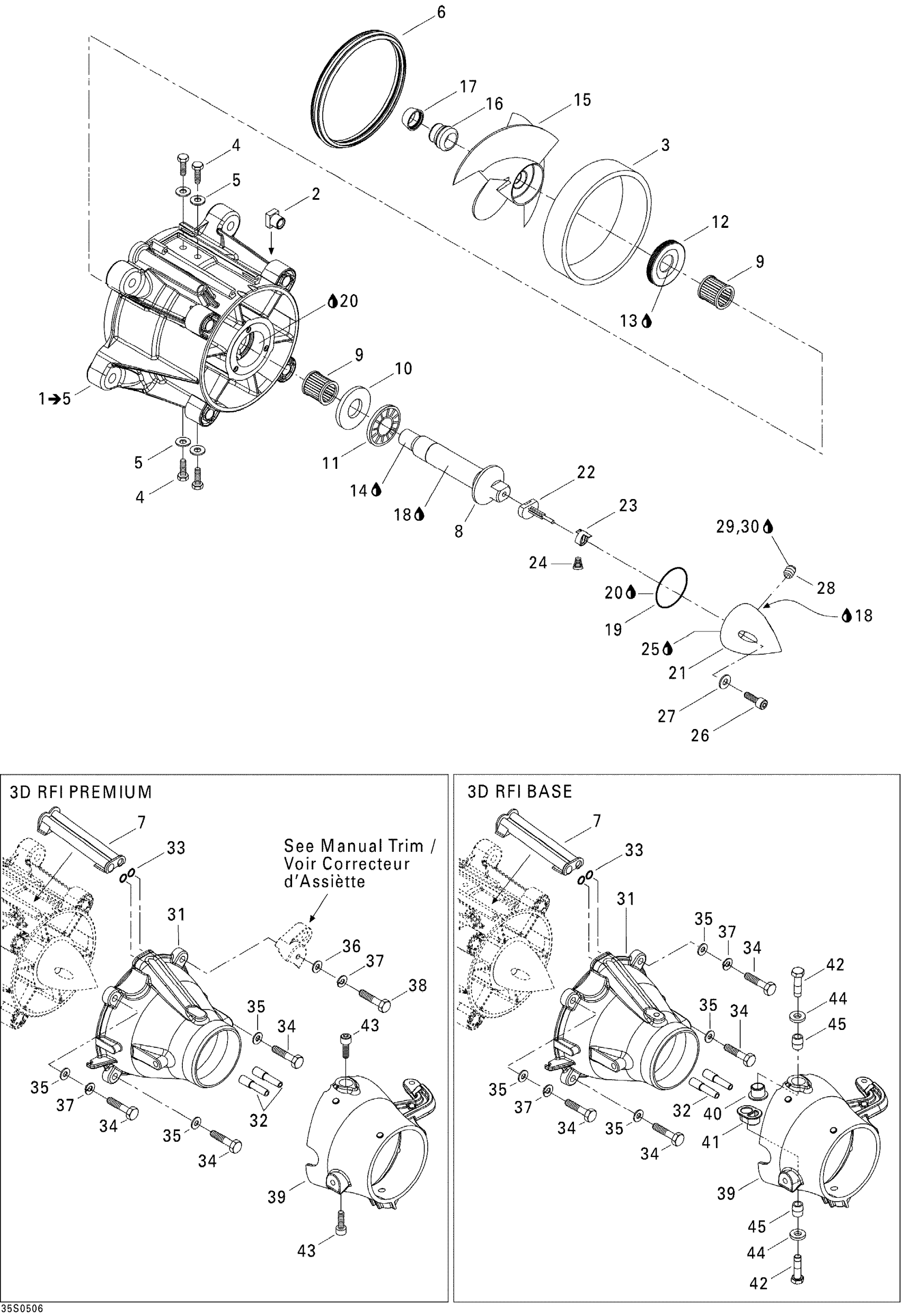

Sea-doo 3D RFI, 2005 05- Pump Diagram
#
1
HOUSING ASSY - Call your local BRP dealership | Includes 1 to 5
271001381
Unavailable
2
Square Nut M8
211100033
$17.99
3
Wear Ring
271000653
$58.49
4
Hex. Plastite Screw #10 X 3/8"
250000040
$1.05
5
Flat Washer M5, Stainless
234051600
$0.77
6
Neoprene Seal
293200087
$12.63
7
Water Outlet
271000785
$3.80
8
Impeller Shaft
271000965
$116.49
9
Needle Bearing
293350017
$27.99
10
THRUST WASHER - Call your local BRP dealership
293350020
Unavailable
11
Thrust-Bearing
293350022
$45.99
12
Oil Seal
267000094
$22.49
13
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
14
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
15
Stainless Steel Impeller
267000201
Unavailable
16
Impeller Boot
271000516
$9.59
17
Impeller Ring
271000517
$9.59
18
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4
779221
$16.99
19
O-Ring
293300011
$8.64
20
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
21
IMPELLER COVER - Call your local BRP dealership
271001250
Unavailable
22
PUSHER ASS?Y - Call your local BRP dealership
271001124
Unavailable
23
SLIDER - Call your local BRP dealership
271001107
Unavailable
24
SPRING - Call your local BRP dealership
271001108
Unavailable
25
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
26
Socket Head Screw M6 X 25, Scotch Grip
205562560
$2.11
27
Stainless Flat Washer M6
234061600
$0.33
28
Pipe Plug Socket Head 1/8-27 Npt
211500001
$9.59
29
Was 293800013 Loctite 56765
219704454
$65.99
30
Was 293800041 Loctite Primer 7649
219704458
$39.99
31
VENTURI, BLACK - Call your local BRP dealership
267000187
Unavailable
31
Venturi, Black | Base
267000189
Unavailable
32
Siphon Tube
271001133
$10.99
33
O-Ring
293300013
$8.18
34
Hex. Screw M8 X 50, Scotch Grip
207285060
$2.11
34
Hex. Screw M8 X 50, Scotch Grip
207285060
$2.11
35
Stainless, Flat Washer 8 mm
234081600
$0.55
35
Stainless, Flat Washer 8 mm
234081600
$0.55
36
Flat Washer 8 mm, Stainless
234082600
$2.43
37
Lock Washer 8 mm, Stainless
234181601
$0.55
38
HEX. SCREW M8 X 65, SCOTCH GRIP - Call your local BRP dealership
207286560
Unavailable
39
STEERING NOZZLE, BLACK - Call your local BRP dealership
267000081
Unavailable
39
Steering Nozzle, Black | Base
267000183
Unavailable
40
Venturi Bushing
293900001
$7.62
41
Plastic Bushing
293900010
$9.59
42
Hex. Screw M8 X 30, Scotch Grip
207383060
$1.90
43
Socket Head Screw M8 X 10, Scotch Grip
211000127
$3.99
44
Flat Washer M8.5 x 18
293050001
$3.07
45
Sleeve
271001816
$14.99
