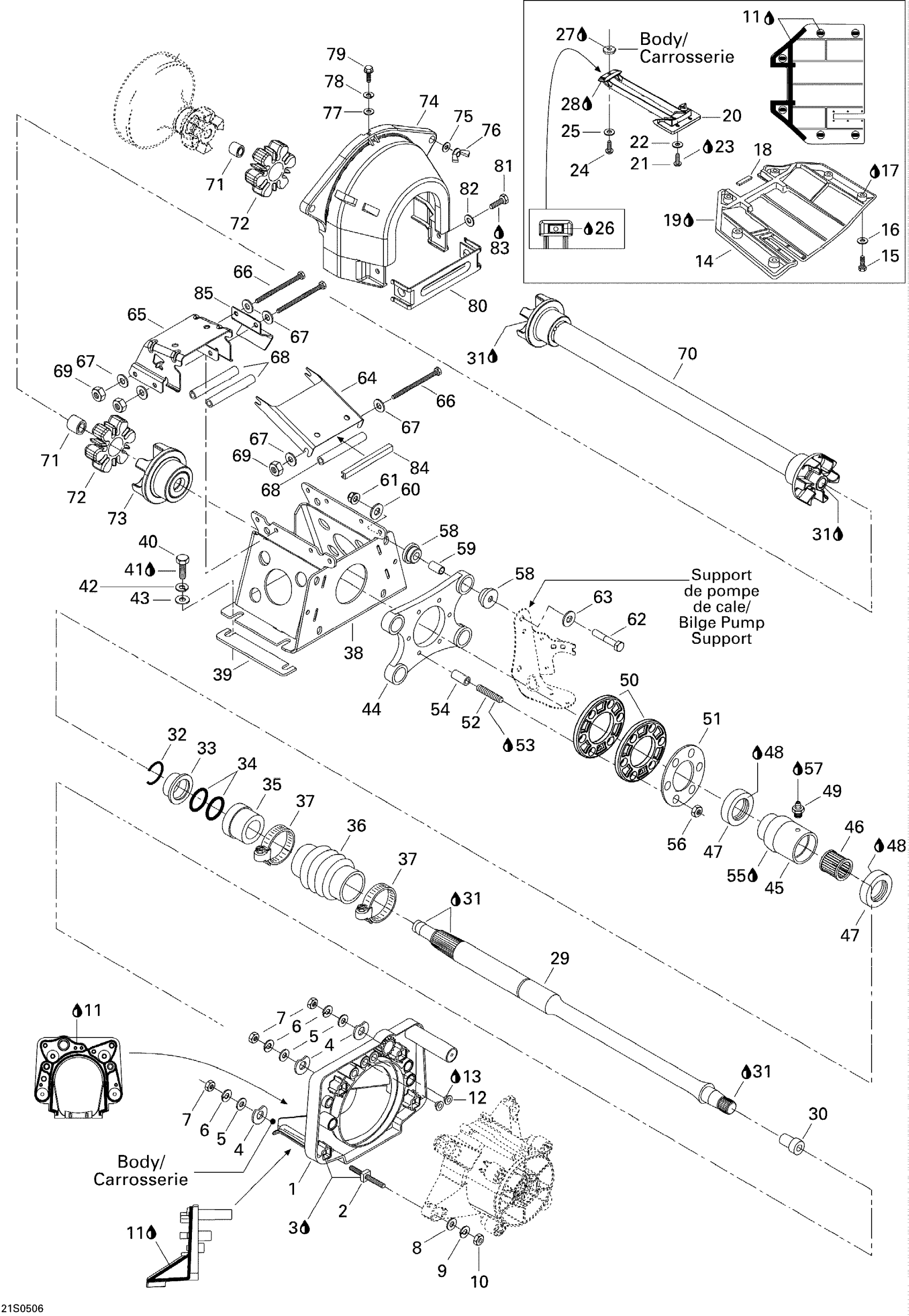

Sea-doo 3D RFI, 2005 Propulsion Diagram

#

Description
Price

1

Pump Support

271001439

Unavailable

2

Square Stud

250300022

$15.57

3

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

4

Shim 0.3 mm

272000053

$8.02

5

Flat Washer 10 mm, Stainless

234002600

$1.85

6

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

7

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

8

Flat Washer 10 mm, Stainless

234002600

$1.85

9

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

10

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

11

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$59.12

12

Watertight Seal

293250084

$5.81

13

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

14

RIDING PLATE, BLACK - Call your local BRP dealership

271001453

$194.58

15

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

16

Stainless, Flat Washer 8 mm

234081600

$0.46

17

Silicone Sealant 51388, 300 ml

296000309

$35.72

18

Neoprene Seal (1PAC=3M)

219704364

$22.72

19

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$59.12

20

Pump Grate, Black

271001525

Unavailable

21

Hex. Screw M6 X 16

207161660

$1.22

22

Stainless Flat Washer M6

234061600

$0.25

23

Loctite 271, 10 ml

293800005

$20.77

24

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

25

Stainless, Flat Washer 8 mm

234081600

$0.46

26

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$59.12

27

Silicone Sealant 51388, 300 ml

296000309

$35.72

28

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$59.12

29

Drive Shaft

272000150

Unavailable

30

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

31

Synthetic Grease, 400 G

293550010

Unavailable

32

C-CLIP - Call your local BRP dealership

272000135

Unavailable

33

Support Ring

272000064

$53.27

34

O-Ring

293300032

$4.89

35

Carbon Ring

272000770

Unavailable

36

BELLOWS - Call your local BRP dealership

272000184

Unavailable

37

Norma Clamp

293650075

$10.14

38

SHAFT SUPPORT - Call your local BRP dealership

271001457

$100.74

39

Shim

272000166

Unavailable

40

Hex. Screw M8 X 30

207183060

$1.30

41

Loctite 243, 10 ml

293800060

$20.77

42

Lock Washer 8 mm, Stainless

234181601

$0.46

43

Stainless, Flat Washer 8 mm

234081600

$0.46

44

Not Available As Spare Part - Friction Washer

Unavailable

45

JOINT SUPPORT - Call your local BRP dealership

272000012400

Unavailable

46

NEEDLE BEARING SCE1416-L271/STD#E - Call your local BRP dealership

293350007

Unavailable

47

DOUBLE LIP SEAL - Call your local BRP dealership

293200012

Unavailable

48

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

49

GREASE FITTING - Call your local BRP dealership

293550008

Unavailable

50

ALIGNMENT WASHER - Call your local BRP dealership

272000049400

$38.43

51

Fixation Washer

272000051

Unavailable

52

STUD M6 X 30 - Call your local BRP dealership

211300016

$3.54

53

Loctite 271, 10 ml

293800005

$20.77

54

SPACER - Call your local BRP dealership

271001319

$6.89

55

Synthetic Grease, 400 G

293550010

Unavailable

56

Hex. Elastic Stop Nut M6

232561600

$0.92

57

Synthetic Grease, 400 G

293550010

Unavailable

58

Rubber Bushing

293830031

Unavailable

59

Bushing

274000114

$6.62

60

Stainless, Flat Washer 8 mm

234081600

$0.46

61

Hex. Elastic Nut M8

232581600

$1.25

62

Hex. Screw M8 X 45

207084560

$2.77

63

Flat Washer 8 mm, Stainless

234082600

$1.98

64

Shaft Guard

271001458

Unavailable

65

Deck Support

291002030

Unavailable

66

HEX. SCREW M6 X 120 - Call your local BRP dealership

230062060

$8.06

67

Flat Washer M6, Stainless

234062600

$0.64

68

SPACER - Call your local BRP dealership

291000757

$16.12

69

Elastic Stop Nut M6, Brass

232561200

$3.51

70

TRANSMISSION SHAFT ASSY - Call your local BRP dealership

272000154

$220.74

71

SNAP BUSHING - Call your local BRP dealership

293900016

Unavailable

72

RUBBER ADAPTOR - Call your local BRP dealership

293830067

Unavailable

73

COUPLER ASSY - Call your local BRP dealership

272000158

$96.89

74

Flywheel Guard

271001440

$28.43

75

Flat Washer 8 mm, Stainless

234082600

$1.98

76

Wing Nut M8

232681100

$1.73

77

Flat Washer M5, Stainless

234051600

$0.64

78

Helical Lock Washer M5

234151601

$0.91

79

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

80

FRONT LOWER GUARD - Call your local BRP dealership

291001228

$14.23

81

Hex. Screw M6 X 16

207161660

$1.22

82

Flat Washer M6, Stainless

234062600

$0.64

83

Loctite 243, 10 ml

293800060

$20.77

84

TRIM 30000MM LONG - Call your local BRP dealership

219704405

Unavailable

85

Deck Support

291002146

Unavailable
