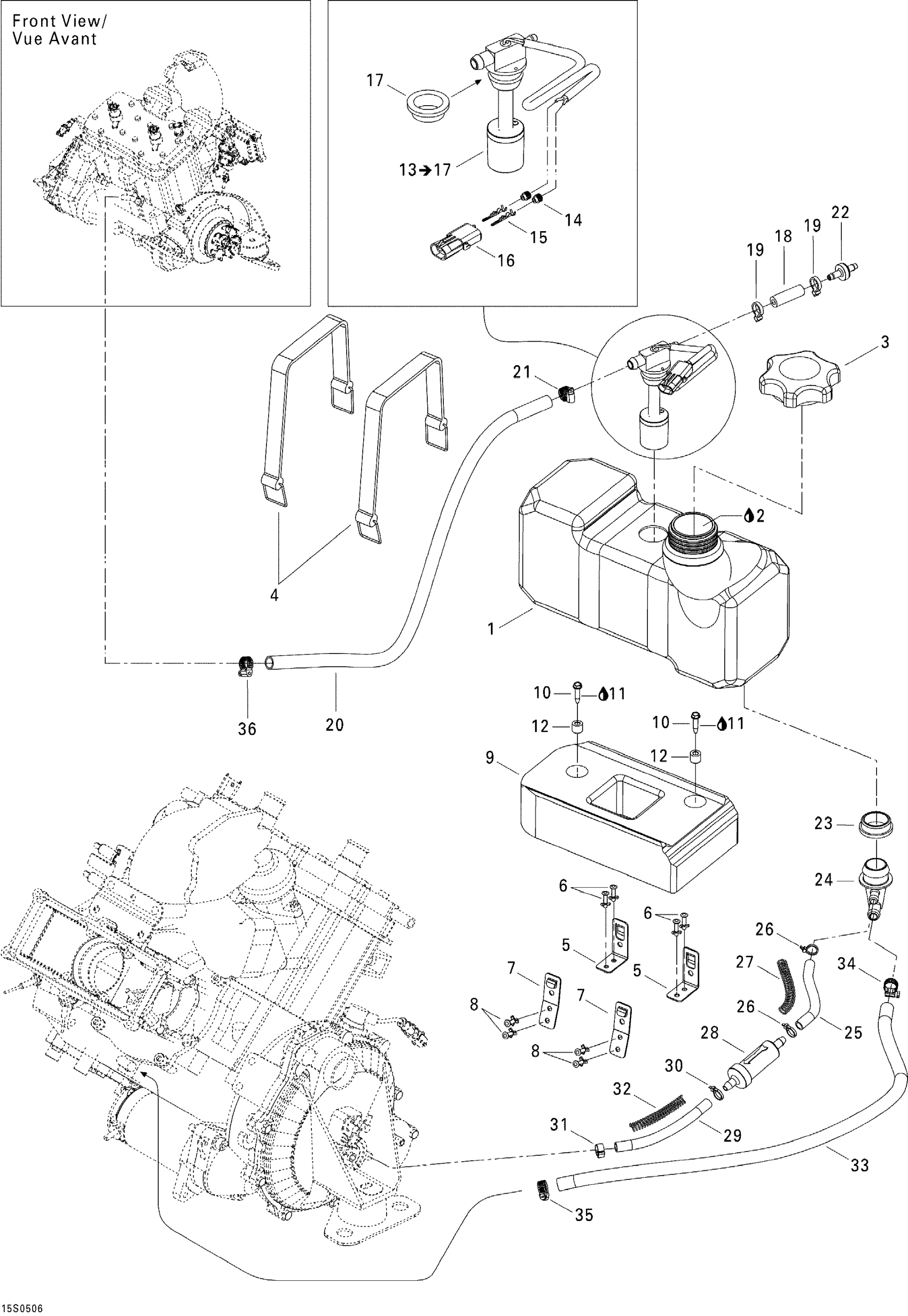

Sea-doo 3D RFI, 2005 Oil Injection System Diagram

#

Description
Price

1

Oil Tank

275000210

Unavailable

2

OIL 2T 12X1 SYNTH - Call your local BRP dealership This part replaces 293600045.

293600132

Unavailable

2

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

2

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

3

Fuel Tank Cap

513033025

$24.49

4

Retainer Strap

293850097

$11.64

5

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

6

Avdel Rivet 3/16"

293150037

$0.56

7

Strap Clip

293850030

$11.12

8

Avdel Rivet 3/16"

293150037

$0.56

9

Foam Pad

275000258

Unavailable

10

Hex. Screw 10-14 X 7/8”

211000023

$3.59

11

Loctite 271, 10 ml

293800005

$26.99

12

Sleeve

292000528

Unavailable

13

OIL LEVER SENSOR ASS'Y - Call your local BRP dealership

278001401

Unavailable

14

Wire Seal

278000218

$4.39

15

Male Terminal | XT Models

278000222

$3.19

16

Female Housing, 2 Circuits

278000217

$9.59

17

Grommet

293720008

$14.75

18

Was 275500549 Hose 1/4"

219704357

$194.99

19

Tie Wrap 142 mm

293750002

$1.25

20

Was 275500008 Hose 12 mm

219704356

$20.49

21

Norma Clamp

293650084

$4.12

22

Check Valve

275500398

$10.99

23

Grommet

293720008

$14.75

24

FITTING ELBOW 90 - Call your local BRP dealership

293710051

Unavailable

25

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

26

Tie Wrap 94 mm | 4X4

293750001

$1.03

27

SPRING - Call your local BRP dealership

275000261

Unavailable

28

OIL FILTER - Call your local BRP dealership

275000262

Unavailable

29

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

30

Tie Wrap 94 mm | 4X4

293750001

$1.03

31

Oetiker Clamp

293650042

$3.09

32

SPRING - Call your local BRP dealership

275000261

Unavailable

33

Was 275500008 Hose 12 mm

219704356

$20.49

34

Norma Clamp

293650084

$4.12

35

Norma Clamp

293650084

$4.12

36

Norma Clamp

293650084

$4.12
