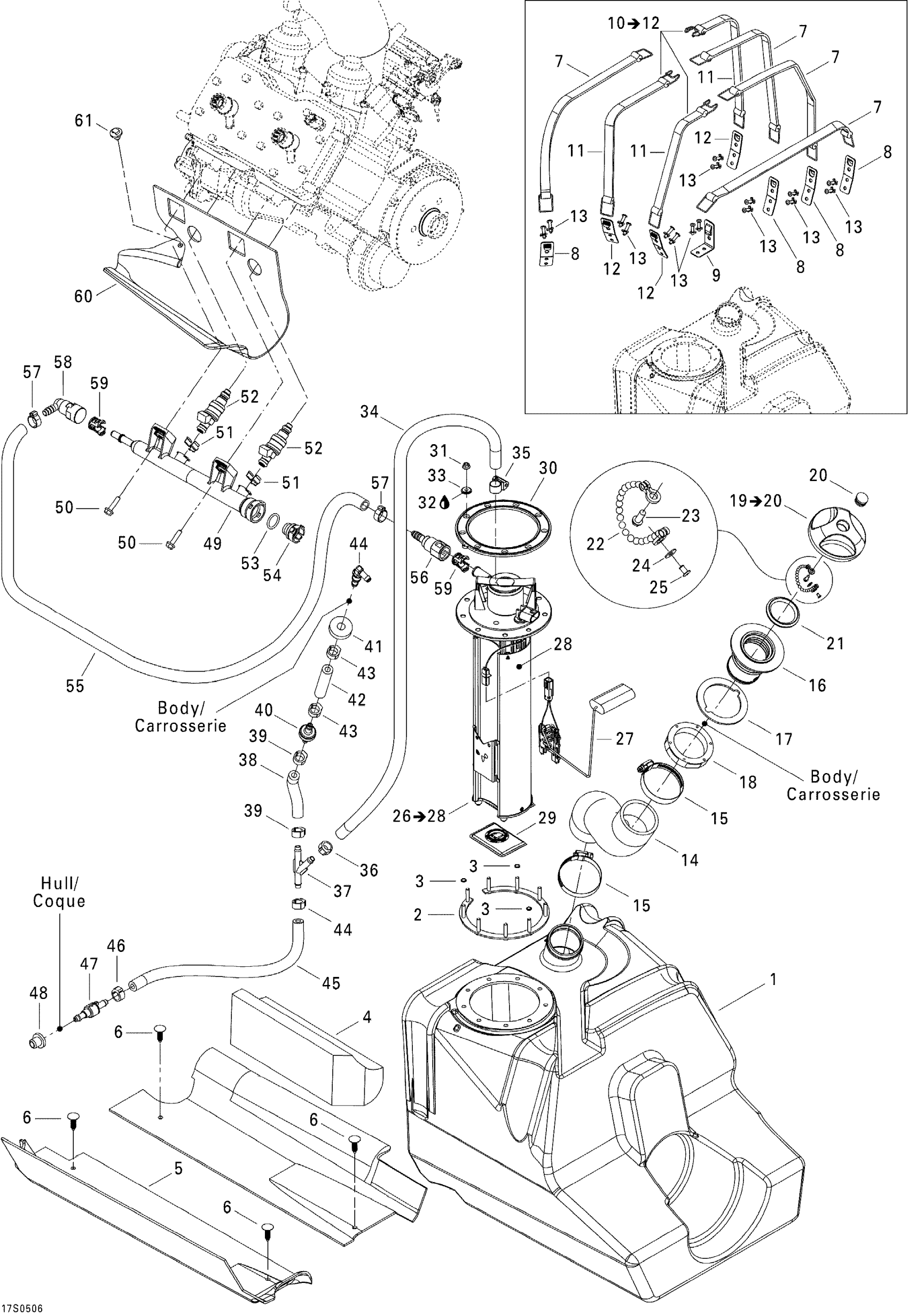

Sea-doo 3D RFI, 2005 Fuel System Diagram

#

Description
Price

1

Fuel Tank

275500653

Unavailable

2

C-Ring, 9 Studs

275500679

$78.99

3

Push Nut

389804300

$1.49

4

FOAM PAD - Call your local BRP dealership

292001065

Unavailable

5

Rubber Pad

293830087

Unavailable

6

Black, Dart

293730006

$1.49

7

Fuel Tank Strap

293850093

$21.99

8

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

9

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

10

FUEL TANK STRAP - Call your local BRP dealership | Includes 10 to 12

293850037

Unavailable

11

Fuel Tank Strap

293850094

$22.49

12

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

13

Avdel Rivet 3/16"

293150037

$1.49

14

Fuel Hose Filler

275500649

Unavailable

15

Tridon Clamp

293650023

$13.99

16

Filler Neck, Fuel

275500231

$14.75

17

Gasket

293250029

$15.49

18

Filler Neck Nut, Fuel

211100012

$14.49

19

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$28.99

20

Black, Snap Cap

293000034

$9.59

21

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

22

Fuel Cap Chain

275500974

$19.99

23

Screw K40 X 10

241140060

$1.49

24

Flat Washer M3, Stainless

234032600

$1.49

25

Pop Rivet 1/8"

390407900

$1.49

26

Fuel Module Ass'y | Includes 26 to 29

275500610

Unavailable

27

SENSOR LEVER - Call your local BRP dealership

270600051

Unavailable

28

Pump Module

275500624

Unavailable

29

Fuel Filter, Bosch

219700368

$39.99

30

Gasket

293250088

$15.49

31

Hex. Flange Nut M5

250100071

$2.19

32

Loctite 243, 10 ml

293800060

$21.49

33

Rubber Washer

291001956

Unavailable

34

Was 275500549 Hose 1/4"

219704357

$199.99

35

Tridon Gear Clamp

293650170

$2.00

36

Oetiker Gear Clamp

293650025

$3.19

37

Y-Fitting

293710059

$9.89

38

Was 275500549 Hose 1/4"

219704357

$199.99

39

Oetiker Gear Clamp

293650025

$3.19

40

Check Valve

275500398

$11.49

41

Grommet

709200285

$9.89

42

Was 275500549 Hose 1/4"

219704357

$199.99

43

Oetiker Gear Clamp

293650025

$3.19

44

Elbow Male Connector

414580600

$4.29

45

Was 275500549 Hose 1/4"

219704357

$199.99

46

Oetiker Gear Clamp

293650025

$3.19

47

Check Valve

275500505

$32.99

48

Grommet

293720029

$1.69

49

FUEL RAIL ASSY - Call your local BRP dealership

270600007

Unavailable

50

Flanged Hex. Screw M6 X 25, Scotch

207562560

$1.49

51

Injector Circlip

270600096

Unavailable

52

Injector

270600095

Unavailable

53

O-RING - Call your local BRP dealership

293300042

Unavailable

54

CAP - Call your local BRP dealership

270600009

Unavailable

55

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

56

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

57

Oetiker Clamp

293650011

$3.19

58

Quick Fitting 90° Ass'y

415128965

$11.49

59

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

60

RAIL PROTECTOR - Call your local BRP dealership

275500441

Unavailable

61

Mount Dart

293730040

$1.49
