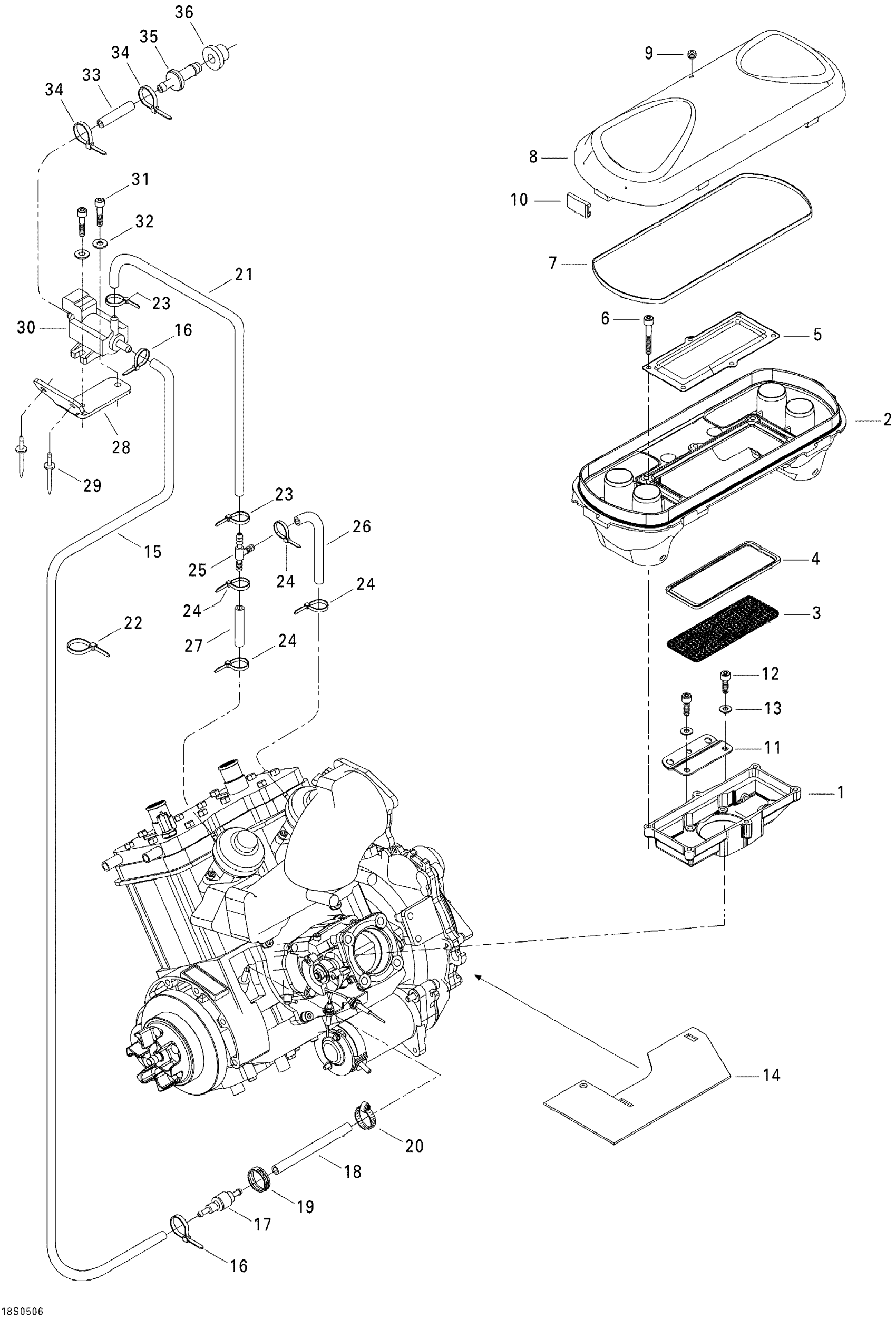

Sea-doo 3D RFI, 2005 Air Intake Diagram

#

Description
Price

1

ARREST HOUSING, BLACK - Call your local BRP dealership

273000229

Unavailable

2

AIR SILENCER BASE - Call your local BRP dealership

273000103

Unavailable

3

Flame Arrester

273000118

Unavailable

4

ISOLATOR - Call your local BRP dealership

273000020

Unavailable

5

HOLDER PLATE - Call your local BRP dealership

273000059

Unavailable

6

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.19

7

GASKET - Call your local BRP dealership

293250023

Unavailable

8

AIR SILENCER COVER - Call your local BRP dealership

273000115

Unavailable

9

Rubber Bumper

293830005

$8.29

10

Retainer Clip

273000006

Unavailable

11

SUPPORT - Call your local BRP dealership

270000565

Unavailable

12

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.59

13

Stainless Flat Washer M6

234061600

$1.49

14

Protector Pad

270000646

Unavailable

15

Was 420660574 Pressure Hose 280 mm

219704352

$229.99

16

Tie Wrap 94 mm | 4X4

293750001

$1.49

17

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

18

Was 275500549 Hose 1/4"

219704357

$199.99

19

Oetiker Gear Clamp

293650025

$3.19

20

Tridon Gear Clamp

293650170

$2.00

21

Was 420660574 Pressure Hose 280 mm

219704352

$229.99

22

Tie-Rap 180 mm

414115200

$1.49

23

Tie Wrap 94 mm | 4X4

293750001

$1.49

24

Tie Wrap 94 mm | 4X4

293750001

$1.49

25

T-Fitting

293710068

$8.49

26

Was 420660574 Pressure Hose 280 mm

219704352

$229.99

27

Was 420660574 Pressure Hose 280 mm

219704352

$229.99

28

Solenoid Valve Support

270000625

Unavailable

29

Pop Rivet 3/16"

293150123

$4.39

30

Solenoid Valve

270600005

$119.99

31

Hex. Screw M5 X 16, Scotch Grip

207351660

$1.49

32

Flat Washer M5, Stainless

234051600

$1.49

33

Was 420660574 Pressure Hose 280 mm

219704352

$229.99

34

Tie Wrap 94 mm | 4X4

293750001

$1.49

35

Fitting

293700031

Unavailable

36

Grommet

293720029

$1.69
