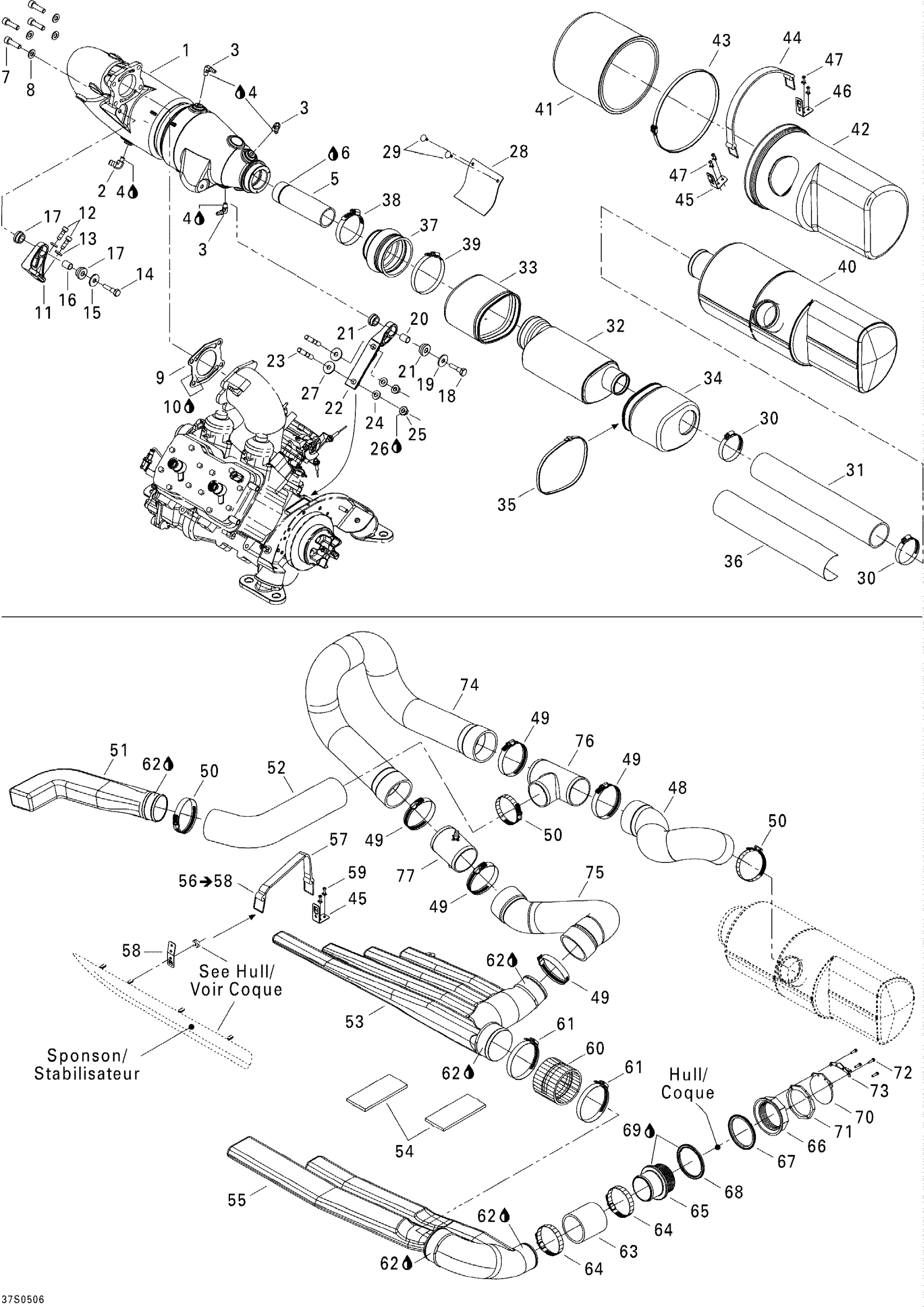

Sea-doo 3D RFI, 2005 Exhaust System Diagram

#

Description
Price

1

Head Pipe, Black

274001189

Unavailable

2

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

3

ELBOW FITTING 90 - Call your local BRP dealership

293700024

Unavailable

4

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

5

Threaded Tube

274001236

Unavailable

6

Sealant Loctite 648

219703000

$45.99

7

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

8

Flat Washer 10 mm, Stainless

234001600

$1.15

9

EXHAUST GASKET - Call your local BRP dealership

420931503

Unavailable

10

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

11

Pipe Support

274001129

Unavailable

12

Socket Head Screw M8 X 25, Scotch Grip

205582560

$2.19

13

Flat Washer M8.5 x 18

293050001

$3.07

14

HEX. SCREW M10 X 40, SCOTCH GRIP - Call your local BRP dealership

245004060

Unavailable

15

Flat Washer 10 mm, Stainless

234002600

$2.22

16

BUSHING - Call your local BRP dealership

274000861

Unavailable

17

RUBBER BUSHING - Call your local BRP dealership

293830065

Unavailable

18

HEX. SCREW M10 X 40, SCOTCH GRIP - Call your local BRP dealership

245004060

Unavailable

19

Flat Washer 10 mm, Stainless

234002600

$2.22

20

BUSHING - Call your local BRP dealership

274000861

Unavailable

21

RUBBER BUSHING - Call your local BRP dealership

293830065

Unavailable

22

Pipe Support

274001131

Unavailable

23

Stud M10 X 60

250300007

Unavailable

24

Flat Washer 10 mm, Stainless

234001600

$1.15

25

Hex. Flange Nut M10

233101600

$5.29

26

Loctite 243, 10 ml

293800060

$21.49

27

Flat Washer 10 mm, Stainless

234002600

$2.22

28

Rubber Pad

293830109

Unavailable

29

Black, Dart

293730011

$0.99

30

Tridon Clamp

293650064

$8.29

31

Exhaust Connecting Hose

274001208

Unavailable

32

MUFFLER - Call your local BRP dealership

274001196

Unavailable

33

Muffler Cover, Front

274001197

Unavailable

34

Muffler Cover, Rear

274001198

Unavailable

35

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

36

Heat Shield

274001225

Unavailable

37

EXHAUST BELLOW - Call your local BRP dealership

274001116

Unavailable

38

TRIDON GEAR CLAMP - Call your local BRP dealership

293650168

Unavailable

39

TRIDON GEAR CLAMP - Call your local BRP dealership

293650169

Unavailable

40

Muffler

274001203

Unavailable

41

Muffler Cover, Front

274001192

Unavailable

42

MUFFLER COVER, REAR - Call your local BRP dealership

274001072

Unavailable

43

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

44

Fuel Tank Strap

293850036

$18.99

45

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

46

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

47

Avdel Rivet 3/16"

293150037

$0.56

48

EXHAUST HOSE - Call your local BRP dealership

274001178

Unavailable

49

Tridon Clamp

293650179

$11.49

50

Tridon Clamp

293650064

$8.29

51

Straight Resonator

274000994

Unavailable

52

HOSE - Call your local BRP dealership

274001179

Unavailable

53

LH UPPER RESONATOR - Call your local BRP dealership

274000700

Unavailable

54

RUBBER PAD - Call your local BRP dealership

274000752

Unavailable

55

RESONATOR EXTENSION - Call your local BRP dealership

274000701

Unavailable

56

Strap Ass`Y | Includes 56 to 58

293850082

Unavailable

57

Fuel Tank Strap

293850036

$18.99

58

Strap Clip

293850030

$11.12

59

Avdel Rivet 3/16"

293150037

$0.56

60

EXHAUST HOSE - Call your local BRP dealership

274000726

Unavailable

61

Tridon Clamp

204000079

$9.99

62

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

63

Exhaust Hose

274000616

Unavailable

64

Tridon Clamp

293650064

$8.29

65

Exhaust Hose, Outlet

274001391

$29.49

66

NUT 72 MM - Call your local BRP dealership

274000835

Unavailable

67

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

68

GASKET - Call your local BRP dealership

293250041

Unavailable

69

Silicone Sealant 51388, 300 ml

296000309

$36.99

70

GASKET - Call your local BRP dealership

293250107

Unavailable

71

SUPPORT NUT - Call your local BRP dealership

274000892

Unavailable

72

Hex. Flange Screw K40 X 16

241141660

$1.48

73

BRACKET - Call your local BRP dealership

274000885

Unavailable

74

Exhaust Hose

274001180

Unavailable

75

Exhaust Hose

274001181

Unavailable

76

T-Fitting

274001080

Unavailable

77

Adapter Hose

274001081

Unavailable
