Partiron

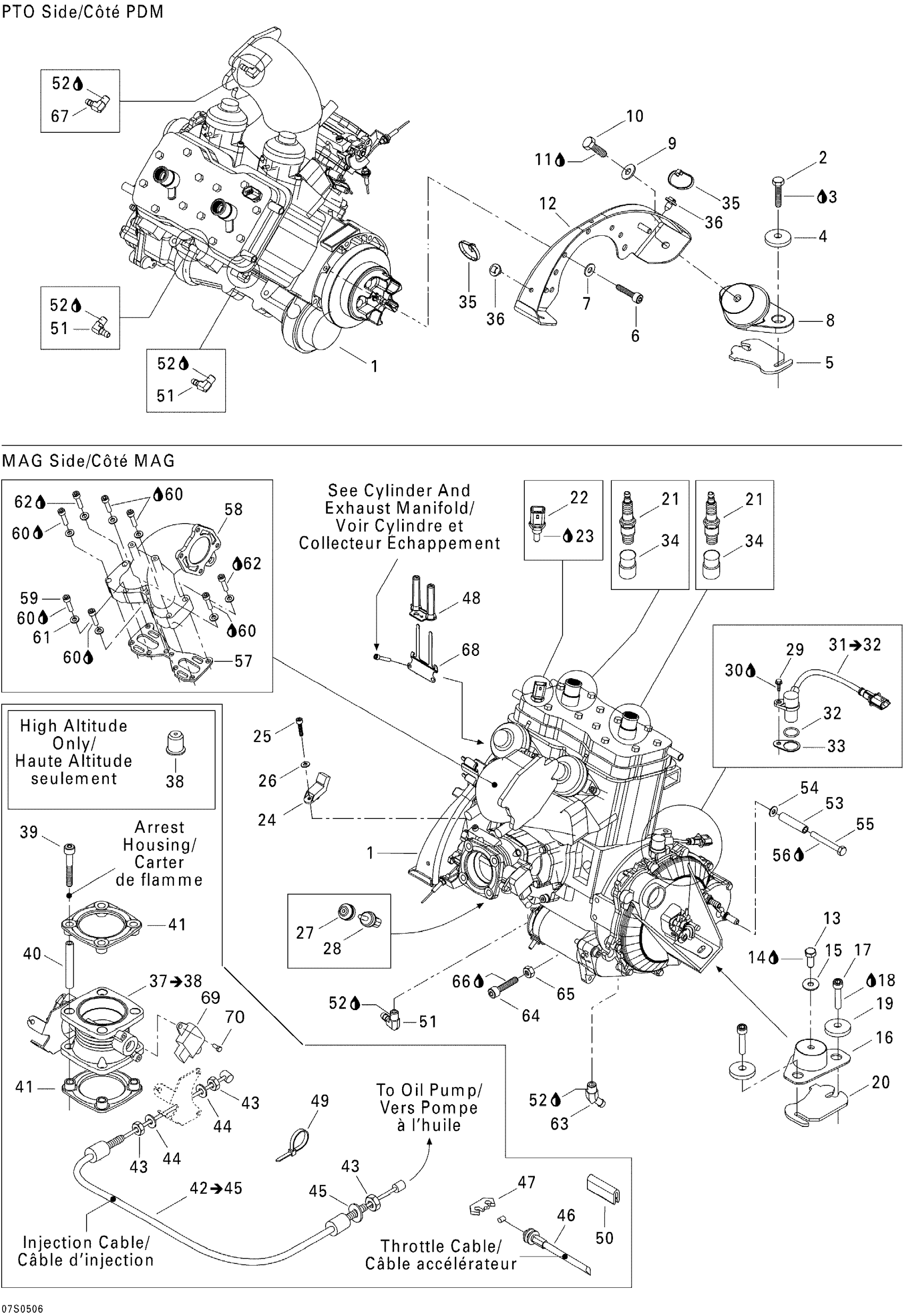

Sea-doo 3D RFI, 2005 Engine Diagram

#

Description
Price

1

Rotax Engine 787 SDI, Black

270000648

Unavailable

2

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

3

Loctite 243, 10 ml

293800060

$21.49

4

Cone Washer

250200018

$5.61

5

Shim 1.3 mm

270000762

$12.99

6

Socket Head Screw M8 X 25, Scotch Grip

205582560

$2.19

7

Stainless, Flat Washer 8 mm

234081600

$0.55

8

RUBBER MOUNT - Call your local BRP dealership

270000631

Unavailable

9

Flat Washer 8 mm, Stainless

234082600

$2.43

10

Hex. Screw M8 X 16

207181660

Unavailable

11

Loctite 243, 10 ml

293800060

$21.49

12

ENGINE SUPPORT - Call your local BRP dealership

270000622

Unavailable

13

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

14

Loctite 243, 10 ml

293800060

$21.49

15

Flat Washer 8 mm, Stainless

234082600

$2.43

16

RUBBER MOUNT - Call your local BRP dealership

270000588

Unavailable

17

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

18

Loctite 243, 10 ml

293800060

$21.49

19

Cone Washer

250200018

$5.61

20

Shim 1.3 mm

270000762

$12.99

21

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

22

Temperature Sensor

278002895

$39.99

23

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

24

Pressure Sensor

270600040

$199.99

25

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.58

26

Stainless Flat Washer M6

234061600

$0.33

27

INSULATOR - Call your local BRP dealership

278001054

Unavailable

28

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

29

Hex. Forming Screw M6 X 16

210361660

Unavailable

30

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

31

Crank Sensor Ass'y | Includes 31 to 32

278001874

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Shim

270000661

Unavailable

34

PROTECTOR CAP - Call your local BRP dealership

278001380

Unavailable

35

Tie-Rap 180 mm

414115200

$0.11

36

Mount Dart

293730040

$1.04

37

THROTTLE BODY ASS'Y - Call your local BRP dealership | Includes 37 to 38

270600092

Unavailable

38

Cap, High Altitude

270600097

Unavailable

39

SOCKET HEAD SCREW M6 X 90, SCOTCH GRIP - Call your local BRP dealership

205569060

Unavailable

40

SPACER TUBE - Call your local BRP dealership

275500352

Unavailable

41

GASKET - Call your local BRP dealership

293250071

Unavailable

42

INJECTION CABLE ASS'Y - Call your local BRP dealership | Includes 42 to 45

270000437

Unavailable

43

Hex. Nut M6

232160600

$1.15

44

Stainless Flat Washer M6

234061600

$0.33

45

Lock Washer Helical M6

234161601

$1.15

46

THROTTLE CABLE - Call your local BRP dealership

277001416

Unavailable

47

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

48

INSULATOR - Call your local BRP dealership

278001512

Unavailable

49

Tie Wrap 142 mm

293750002

$1.25

50

Was 271000110 Protection Trim

219704353

$15.99

51

Elbow Fitting

293700016

Unavailable

52

Was 293800013 Loctite 56765

219704454

$65.99

53

Spacer Tube

275500640

Unavailable

54

Stainless Flat Washer M6

234061600

$0.33

55

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

56

Loctite 243, 10 ml

293800060

$21.49

57

Gasket This part replaces 290931480.

420931481

$19.49

58

Exhaust Manifold, Black

420979483

Unavailable

59

SOCKET HEAD SCREW M10 X 60 - Call your local BRP dealership

205006060

Unavailable

60

Loctite 243, 10 ml

293800060

$21.49

61

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

62

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

63

ELBOW FITTING 90 - Call your local BRP dealership | With Catalyst

204130218

Unavailable

64

Socket Screw M10 X 30

205003060

Unavailable

65

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

66

Loctite 271, 10 ml

293800005

$26.99

67

Elbow Fitting 90°

293710048

Unavailable

68

GROUND PLATE - Call your local BRP dealership

278001662

Unavailable

69

Position Sensor

420866120

$98.99

70

Not Available As Spare Part - Friction Washer

Unavailable
