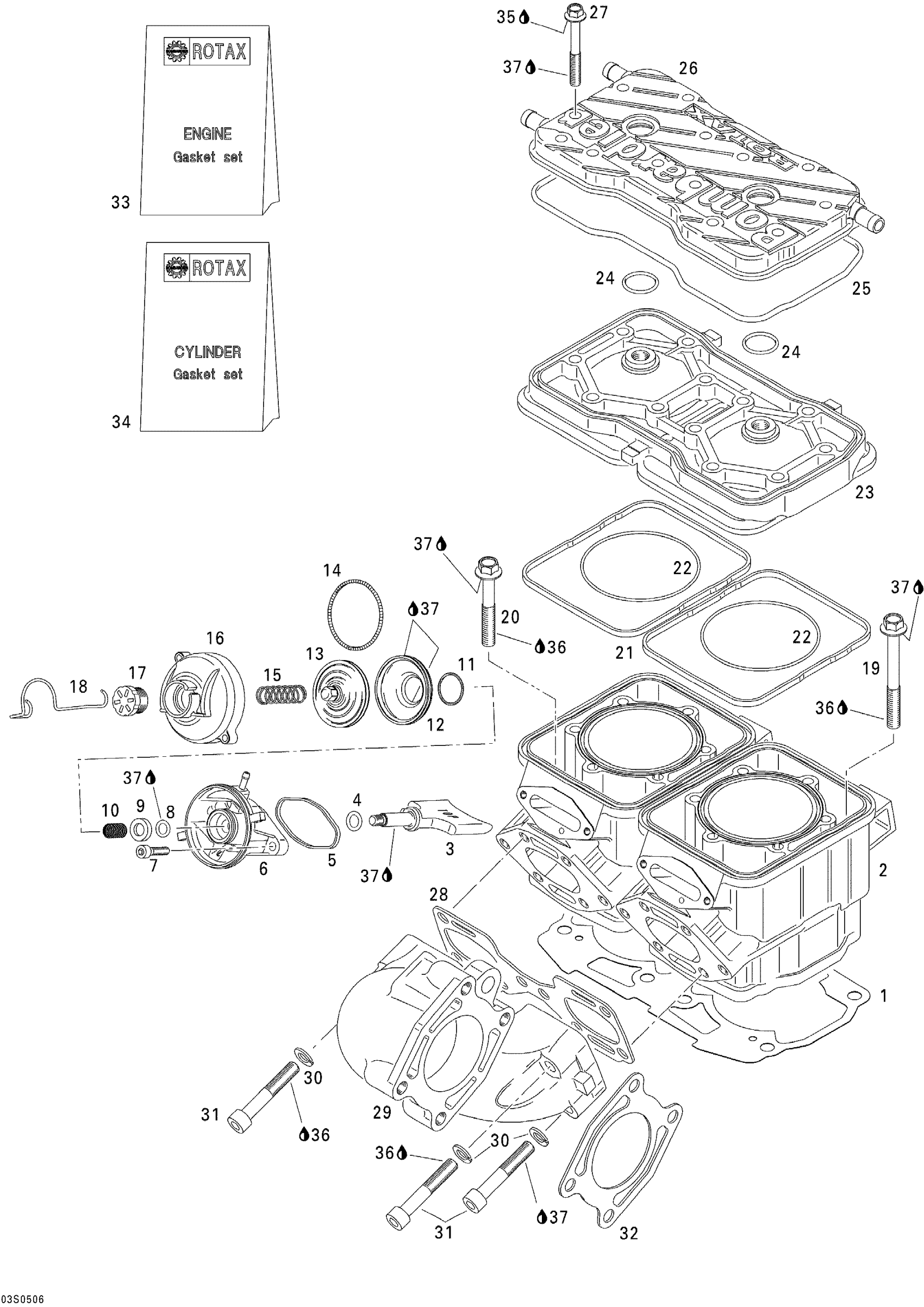

Sea-doo 3D RFI, 2005 01- Cylinder And Exhaust Manifold Diagram

#

Description
Price

1

CYLINDER GASKET 0.3MM - Call your local BRP dealership

420931725

Unavailable

1

CYLINDER GASKET 0.4MM - Call your local BRP dealership

420931726

Unavailable

1

CYLINDER GASKET 0.6MM - Call your local BRP dealership

420931728

Unavailable

2

Cylinder 787 Ass'y, Black

420623086

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership

420854354

Unavailable

4

O-Ring

420931765

$0.98

5

RUBBER GASKET - Call your local BRP dealership

420931670

Unavailable

6

Valve Housing

420854436

Unavailable

7

Socket Head Screw M6 X 25

205062560

$1.69

8

O-Ring

420931765

$0.98

9

SUPPORTING RING - Call your local BRP dealership

420926225

Unavailable

10

COMPRESSION SPRING - Call your local BRP dealership

420838260

Unavailable

11

Hose Spring This part replaces 420838253.

420838255

$7.41

12

Exhaust Bellows

420260723

$42.49

13

EXHAUST VALVE PISTON - Call your local BRP dealership

420854446

Unavailable

14

Hose Spring This part replaces 420239048.

420939281

$7.41

15

COMPRESSION SPRING - Call your local BRP dealership

420939137

Unavailable

16

Valve Cover This part replaces 420911558.

420911559

$29.49

17

Adjuster Screw

420241221

$14.22

18

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

19

Hex. Flange Screw M10 X 105

420941903

Unavailable

20

HEX. FLANGED SCREW M10 X 73.5 - Call your local BRP dealership

420941333

Unavailable

21

RUBBER RING - Call your local BRP dealership

420931420

Unavailable

22

O-Ring | Included in gasket kit

420931410

$3.39

23

HEAD CYLINDER - Call your local BRP dealership This part replaces 290923302.

420923308

Unavailable

24

O-Ring

420430782

$5.39

25

O-RING - Call your local BRP dealership

420831550

Unavailable

26

CYLINDER HEAD COVER - Call your local BRP dealership

420923313

Unavailable

27

FLANGED HEX. SCREW M8 X 60 - Call your local BRP dealership

420240728

Unavailable

28

Gasket This part replaces 290931480.

420931481

$19.49

29

Exhaust Manifold, Black

420979483

Unavailable

30

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

31

SOCKET HEAD SCREW M10 X 60 - Call your local BRP dealership

205006060

Unavailable

32

EXHAUST GASKET - Call your local BRP dealership

420931503

Unavailable

33

ENGINE GASKET SET - Call your local BRP dealership

420886392

Unavailable

34

CYLINDER GASKET SET - Call your local BRP dealership

420886396

Unavailable

35

Loctite 243, 10 ml

293800060

$21.49

36

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

37

Dow Corning 111, 150 g

413707000

$59.99
