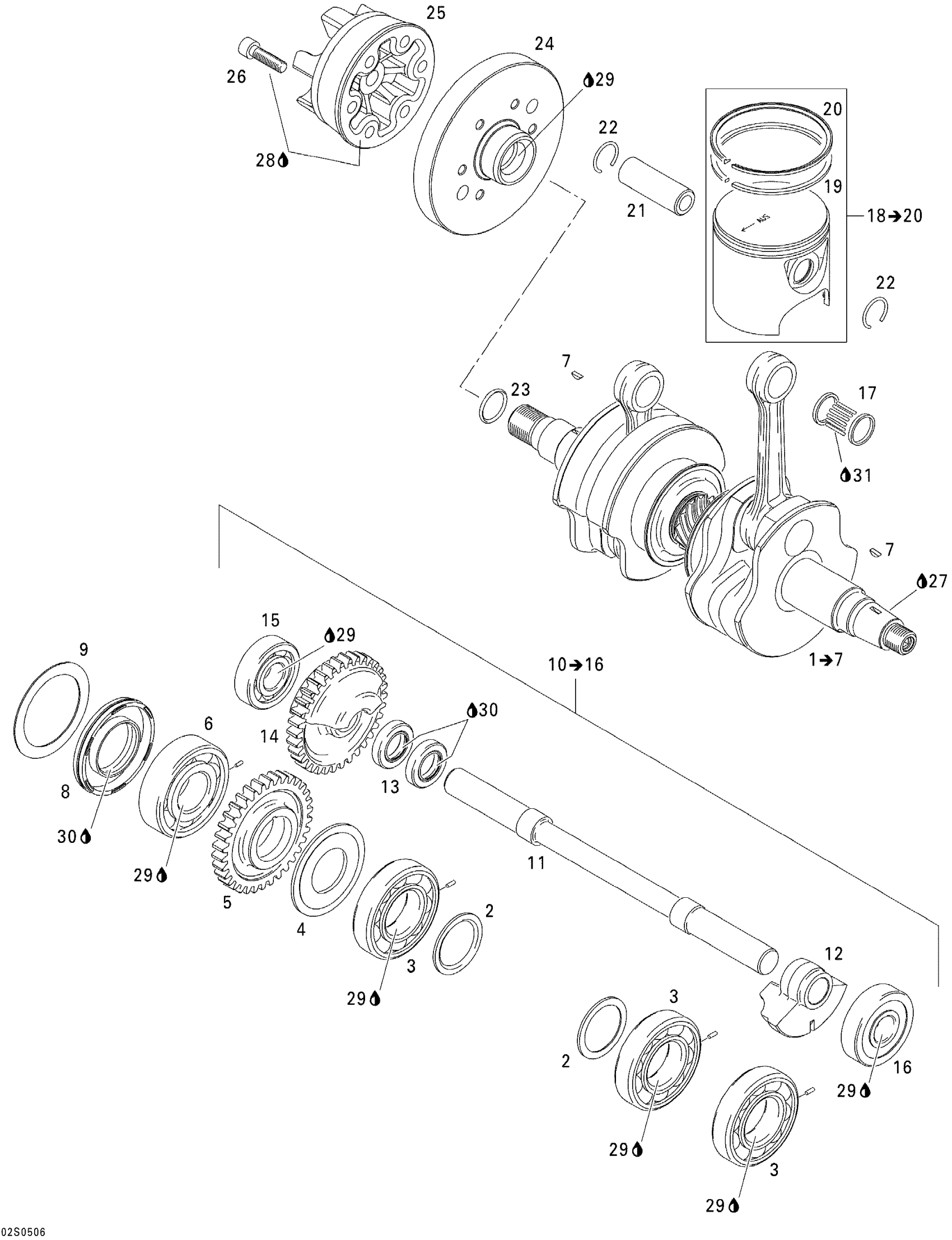

Sea-doo 3D RFI, 2005 01- Crankshaft, Pistons And Balance Shaft Diagram

#

Description
Price

1

REBUILD-CRANKSHAFT 787 RFI 98 - Call your local BRP dealership | Includes 1 to 7 This part replaces 420887891.

421000712

Unavailable

1

REBUILD-CRANKSHAFT 787 RFI 98 - Call your local BRP dealership | Includes 1 to 7 This part replaces 420887891.

421000712

Unavailable

2

DISTANCE RING - Call your local BRP dealership

420827760

Unavailable

3

Ball Bearing

420832573

$44.49

4

Labyrinth Washer

420926140

Unavailable

5

Gear 43 Teeth

420834315

Unavailable

6

BALL BEARING - Call your local BRP dealership

420932579

Unavailable

7

Woodruff Key

420246055

$2.43

8

OIL SEAL - Call your local BRP dealership

420830638

Unavailable

9

RETAINING SHIM - Call your local BRP dealership

420926060

Unavailable

10

Balance Shaft Ass'y | Includes 10 to 16

420837406

Unavailable

11

BALANCED SHAFT 787 - Call your local BRP dealership

420837400

Unavailable

12

Balanced Mass

420818800

Unavailable

13

Oil Seal

420930392

$15.81

14

Balanced Gear, 43 Teeth

420834305

Unavailable

15

Ball Bearing 6304E

420932095

Unavailable

16

Bearing_Ball - Call your local BRP dealership

420932098

Unavailable

17

NEEDLE BEARING - Call your local BRP dealership This part replaces 290832420.

420832421

Unavailable

18

PISTON WITH RINGS, STD, 81.94 MM - Call your local BRP dealership | Includes 18 to 20

420888418

Unavailable

18

PISTON WITH RINGS, 1ST, 82.19 MM - Call your local BRP dealership | Includes 18 to 20

420888419

Unavailable

19

RECTANGULAR RING, STD, 82.00 MM - Call your local BRP dealership

420815080

Unavailable

19

RECTANGULAR RING, 1ST, 82.25 MM - Call your local BRP dealership

420815081

Unavailable

20

SEMI-TRAPEZ RING, STD, 82.00 MM - Call your local BRP dealership

420815100

Unavailable

20

Semi-trapez Ring, 1st, 82.25 mm

420815101

Unavailable

21

Piston Pin This part replaces 290916402.

420916404

$28.49

22

CIRCLIP - Call your local BRP dealership

420845100

Unavailable

23

O-Ring

420430782

$5.39

24

COUPLING ASS'Y, BLACK - Call your local BRP dealership

420958145

Unavailable

25

COUPLING - Call your local BRP dealership

420958137

Unavailable

26

Socket Screw M8 X 30

205083060

$2.96

27

Loctite 243, 10 ml

293800060

$21.49

28

Sealant Loctite 648

219703000

$45.99

29

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

30

Dow Corning 111, 150 g

413707000

$59.99

31

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99
