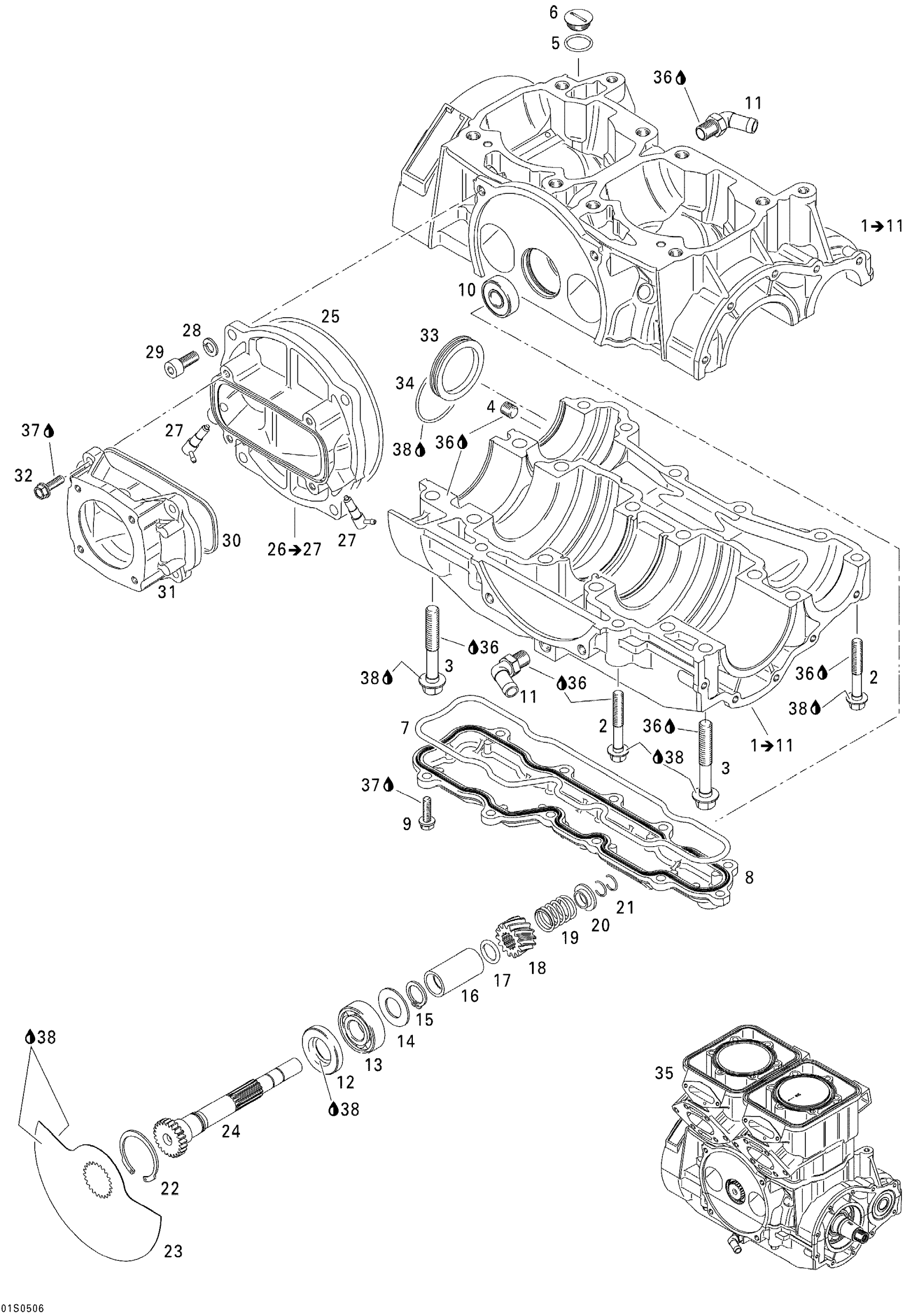

Sea-doo 3D RFI, 2005 Crankcase And Rotary Valve Diagram

#

Description
Price

1

CRANKCASE 787 ASS'Y, SILVER - Call your local BRP dealership | Includes 1 to 11

420891140

Unavailable

2

HEX. FLANGED SCREW M8 X 55 - Call your local BRP dealership

420240328

Unavailable

3

HEX. FLANGED SCREW M10 X 73.5 - Call your local BRP dealership

420941333

Unavailable

4

DRAIN PLUG 1/8 - Call your local BRP dealership

420240483

Unavailable

5

O-Ring

420250890

$3.06

6

Drain Plug

420241801

$7.41

7

O-RING - Call your local BRP dealership This part replaces 290950360.

420950360

Unavailable

8

WATERCHANNEL COVER 787, BLACK - Call your local BRP dealership

420811237

Unavailable

9

TAPPING SCREW M6 X 20 - Call your local BRP dealership

420941253

Unavailable

10

Ball Bearing

420932797

$19.99

11

Angular Tube, 90°

420922247

Unavailable

12

ROTARY VALVE SHAFT - Call your local BRP dealership

420837352

Unavailable

13

OIL SEAL - Call your local BRP dealership

420930580

Unavailable

14

BALL BEARING - Call your local BRP dealership

293350051

Unavailable

15

SHIM - Call your local BRP dealership

420227439

Unavailable

16

SNAP RING - Call your local BRP dealership

420845450

Unavailable

17

DISTANCE SLEEVE - Call your local BRP dealership

420847287

Unavailable

18

O-Ring

293300024

$8.57

19

Sprocket 14Th This part replaces 420935735.

420935736

$88.99

20

SPRING - Call your local BRP dealership

420938810

Unavailable

21

SPRING SEAT - Call your local BRP dealership

420827430

Unavailable

22

CIRCLIP - Call your local BRP dealership

420845160

Unavailable

23

Lock Ring

420945880

$4.44

24

ROTARY VALVE, 159 - Call your local BRP dealership This part replaces 290924502.

420924502

Unavailable

25

O-RING - Call your local BRP dealership

420831767

Unavailable

26

ROTARY VALVE COVER - Call your local BRP dealership | Includes 26 to 27

420811037

$359.99

27

Check Valve

420956511

$35.99

28

Lock Spring Washer 8 mm, Stainless

234180602

$1.16

29

SOCKET SCREW M8 X 20 - Call your local BRP dealership

205082060

Unavailable

30

RUBBER RING - Call your local BRP dealership

420850520

Unavailable

31

Intake Manifold

420867822

Unavailable

32

TAPTITE SCREW M6 X 25 - Call your local BRP dealership

420841543

Unavailable

33

BEARING COVER - Call your local BRP dealership This part replaces 290810745.

420810745

Unavailable

34

O-RING - Call your local BRP dealership

420230300

Unavailable

35

Short Block 787, Black

420078707

Unavailable

36

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

37

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

38

Dow Corning 111, 150 g

413707000

$59.99
