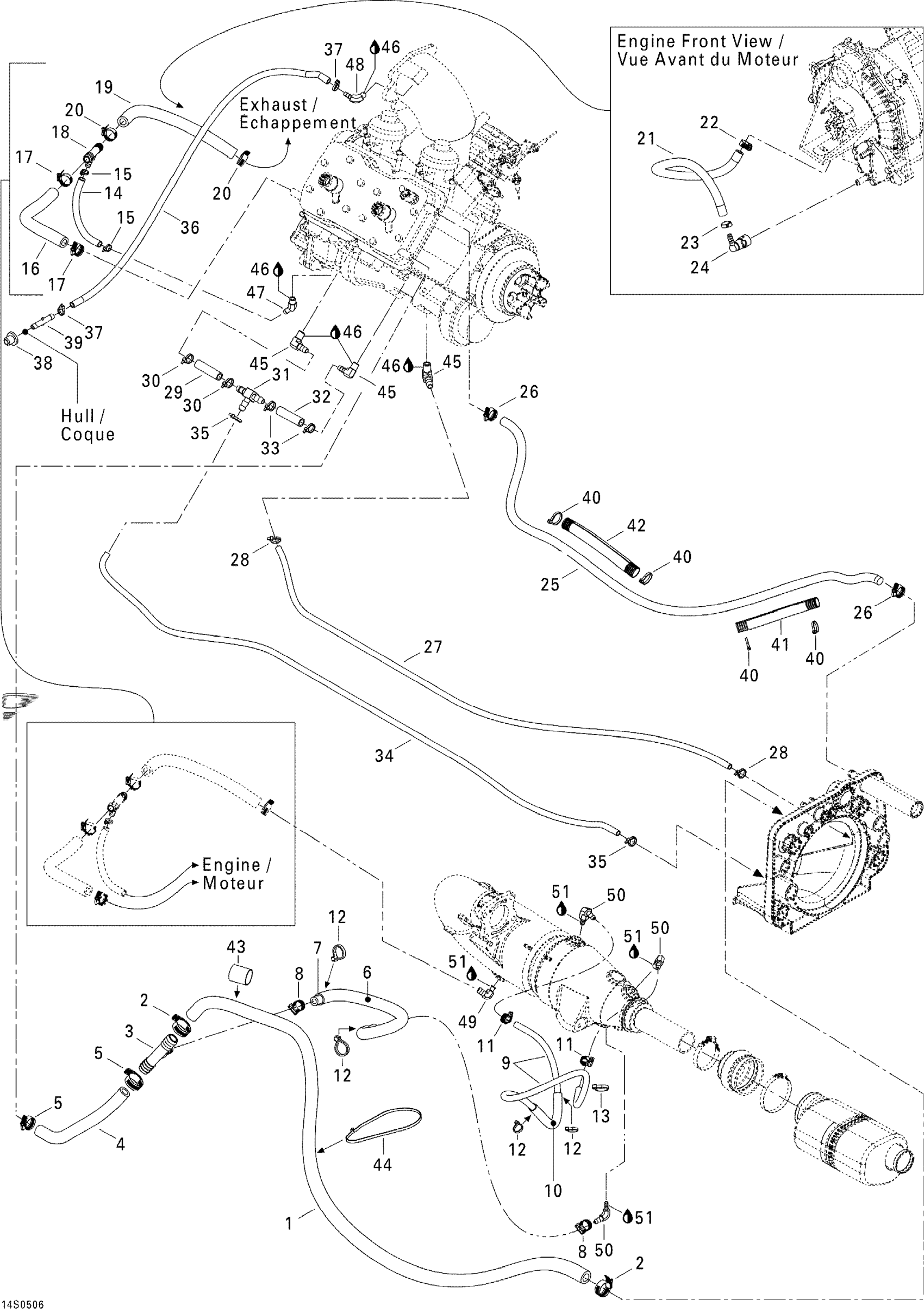

Sea-doo 3D RFI, 2005 Cooling System Diagram

#

Description
Price

1

Was 276000001 Hose 12.5 mm

219704394

$51.99

2

Tridon Gear Clamp

293650172

$3.09

3

T-Fitting

293710116

$17.62

4

Lower Formed Hose

276000104

Unavailable

5

Tridon Gear Clamp

293650172

$3.09

6

Tubing 16 Mm 1000Mm Long

219704408

$7.49

7

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

8

Tridon Gear Clamp

293650170

$1.99

9

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

10

Tubing 16 Mm 1000Mm Long

219704408

$7.49

11

Tridon Gear Clamp

293650170

$1.99

12

Tie Wrap 142 mm

293750002

$1.25

13

Tie Wrap 368 mm

293750008

$1.04

14

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

15

Tie Wrap 94 mm | 4X4

293750001

$1.03

16

Was 276000001 Hose 12.5 mm

219704394

$51.99

17

Tridon Gear Clamp

293650172

$3.09

18

T-Fitting

293710116

$17.62

19

Was 276000001 Hose 12.5 mm

219704394

$51.99

20

Tridon Gear Clamp

293650172

$3.09

21

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

22

Tridon Gear Clamp

293650170

$1.99

23

Crimp Clamp, 15.3-706R

293650047

$3.29

24

Quick Fitting 90° Ass'y

415128965

$10.99

25

Was 276000001 Hose 12.5 mm

219704394

$51.99

26

Tridon Gear Clamp

293650172

$3.09

27

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

28

Tie Wrap 94 mm | 4X4

293750001

$1.03

29

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

30

Tie Wrap 94 mm | 4X4

293750001

$1.03

31

T-FITTING - Call your local BRP dealership

293710061

Unavailable

32

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

33

Tie Wrap 94 mm | 4X4

293750001

$1.03

34

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

35

Tie Wrap 94 mm | 4X4

293750001

$1.03

36

Hose 6 Mm 15000Mm Long

219704360

$132.49

37

Tie Wrap 94 mm | 4X4

293750001

$1.03

38

Grommet

293720029

$1.59

39

Straight Fitting

293710039

$7.59

40

Tie Wrap 142 mm

293750002

$1.25

41

Tubing 25 MM 1000MM Long

219704402

$15.99

42

Tubing 25 MM 1000MM Long

219704402

$15.99

43

Shrink Tubing

276000132

Unavailable

44

Tie Wrap 368 mm

293750008

$1.04

45

Elbow Fitting

293700016

Unavailable

46

Was 293800013 Loctite 56765

219704454

$65.99

47

ELBOW FITTING 90 - Call your local BRP dealership | With Catalyst

204130218

Unavailable

48

Elbow Fitting 90°

293710048

Unavailable

49

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

50

ELBOW FITTING 90 - Call your local BRP dealership

293700024

Unavailable

51

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99
