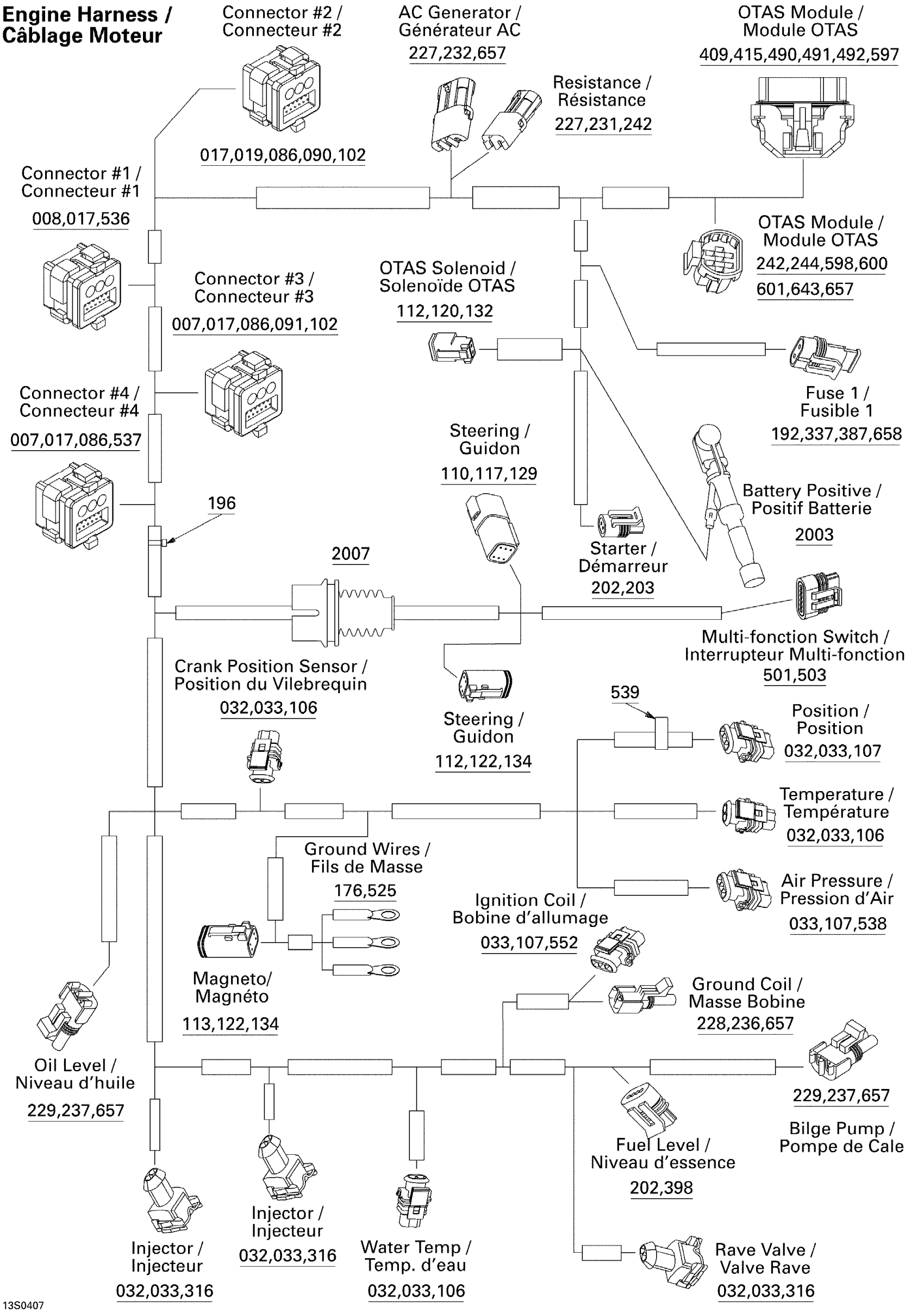

Sea-doo 3D RFI, 2004 Electrical Harness Diagram

#

Description
Price

007

Engine Harness Ass'y | Includes 007 to 2007

278001900

Unavailable

007

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable

008

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

017

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

019

SEAL - Call your local BRP dealership

409013900

Unavailable

032

Female Terminal

278000998

$4.39

033

Wire Seal

278000999

$3.19

086

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

090

Male Terminal Housing, 26 Circuits

278001062

Unavailable

091

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

102

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

106

Male Housing, 2 Circuits

278001005

$19.49

107

Male Housing, 3 Circuits

278000997

$19.49

110

Male Terminal

278000631

$4.39

112

Female Terminal

278000632

$2.09

113

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

117

Male Terminal Housing, 6 Circuits

710001539

$19.99

120

Female Connector, 2 Circuits

409207300

$9.85

122

Male Connector, 4 Circuits | CE

278000739

$19.49

129

Female Lock, 6 Circuits

278000735

$3.19

132

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

134

Male Lock, 4 Circuits | CE

278000738

$3.09

176

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

192

Fuse, 20 Amperes

409003900

$3.28

196

Tie Wrap 142 mm

293750002

$1.25

202

Female Terminal

278001114

$3.19

203

Male Connector, 2 Circuits

278001113

$16.86

226

Male Terminal | XT Models

278000222

$3.19

227

Male Terminal

409004300

$5.61

228

Female Terminal

409007300

$0.45

229

Female Terminal

278000223

$3.19

231

Female Housing, 2 Circuits

278000217

$9.59

232

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

236

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

237

Male Connector, 2 Circuits

278000220

$15.49

242

Wire Seal

278000218

$4.39

244

Wire Seal

278000216

$3.19

316

Male Connector, 2 Circuits

278001003

$46.49

337

Female Terminal

710000113

$6.99

387

Synthetic Grease, 400 G

293550010

Unavailable

398

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

401

WIRE SEAL - Call your local BRP dealership

278001505

Unavailable

409

Plug

515175812

$2.19

415

Female Terminal

515175806

$0.99

459

Female Terminal

710000357

$7.69

490

SEAL WIRE - Call your local BRP dealership

710000394

Unavailable

491

FEMALE HOUSING - Call your local BRP dealership

710000395

Unavailable

492

Female Housing 32 Pins

710000396

Unavailable

501

FEMALE TERMINAL - Call your local BRP dealership

710000412

Unavailable

503

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710000414

Unavailable

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

536

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

537

MALE CONNECTOR, 26 CIRCUITS - Call your local BRP dealership

278001211

Unavailable

538

FEMALE TERMINAL - Call your local BRP dealership

278001210

Unavailable

552

Female Terminal

278001310

Unavailable

597

Terminal Retainer

515176055

Unavailable

598

Female Housing

515176051

Unavailable

600

FEMALE TERMINAL - Call your local BRP dealership

515176053

Unavailable

601

Latch

515176056

Unavailable

643

Female Terminal

278001977

Unavailable

657

Wire Seal

278001065

$7.69

658

Fuse Holder

278001987

$15.49

2003

Not Available As Spare Part - Friction Washer

Unavailable

2007

GROMMET - Call your local BRP dealership

293720042

Unavailable
