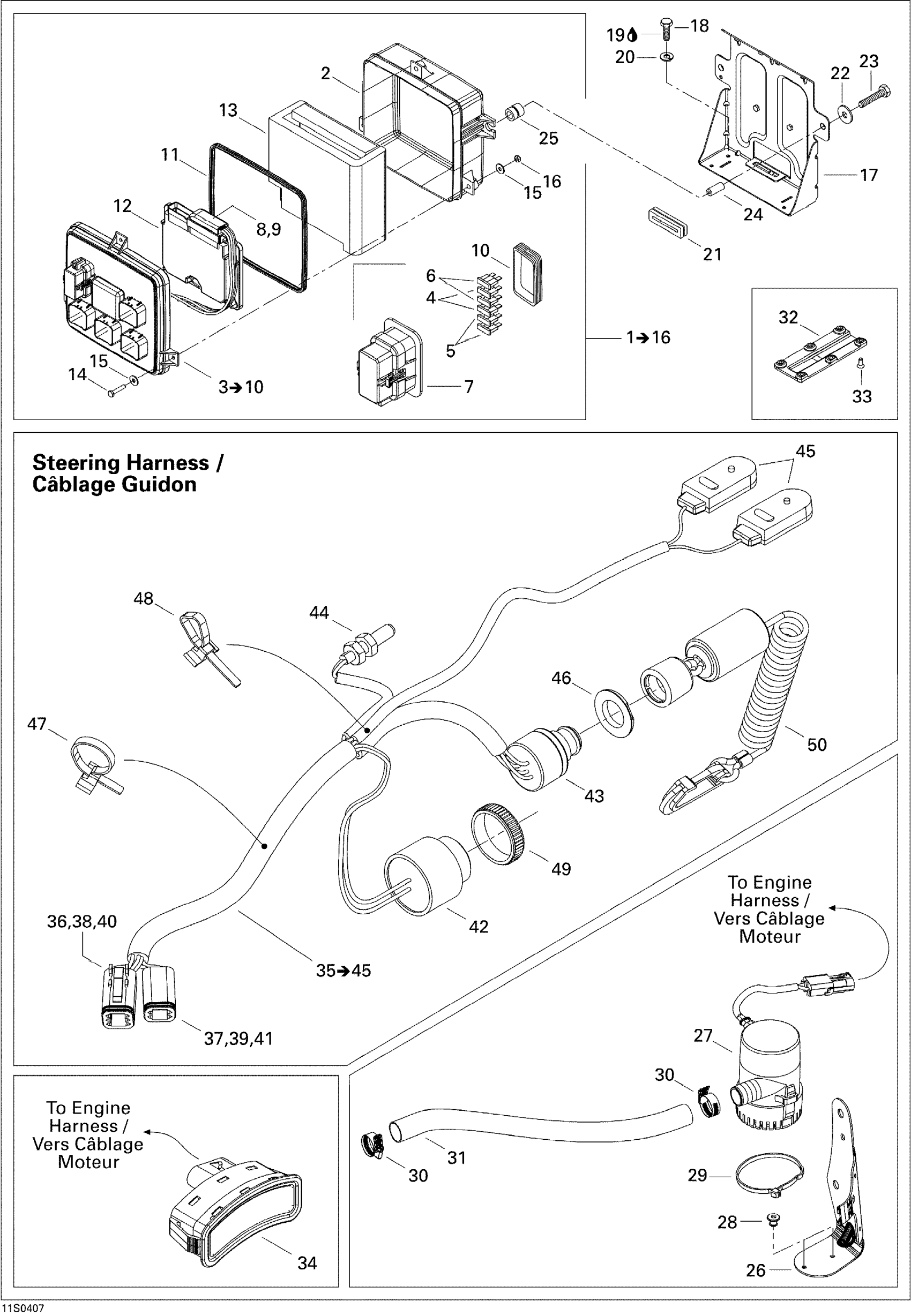

Sea-doo 3D RFI, 2004 10- Electrical Accessories Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Electronic Box Base

278000938

Unavailable

3

ELECTRONIC MODULE - Call your local BRP dealership | Includes 3 to 10

278001981

Unavailable

4

Fuse, 5 Amperes | CE

278000344

$3.28

5

Fuse, 10 Amperes | North America

278001197

$2.21

6

Fuse, 15 Amperes

278000343

$3.28

7

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

8

Female Terminal

278000998

$4.39

9

Wire Seal

278000999

$3.19

10

Cover Seal

278001070

Unavailable

11

Gasket

293250063

Unavailable

12

ELECTRONIC MODULE - Call your local BRP dealership

278001924

Unavailable

13

Foam

278001974

Unavailable

14

Hex. Screw M6 X 30

207063060

$1.89

15

Flat Washer M6, Stainless

234062600

$0.77

16

Hex. Elastic Stop Nut M6

232561600

$1.15

17

Box Support Ass'y

278001949

Unavailable

18

Hex. Screw 10-14 X 7/8”

211000023

$3.59

19

Loctite 271, 10 ml

293800005

$26.99

20

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

21

Insulator

278001259

Unavailable

22

Flat Washer M6, Stainless

234062600

$0.77

23

Hex. Screw M6 X 30, Scotch Grip

207363060

Unavailable

24

SPACER - Call your local BRP dealership

272000074

Unavailable

25

UPPER INSULATOR - Call your local BRP dealership

278001260

Unavailable

26

BILGE SUPPORT - Call your local BRP dealership

271000897

Unavailable

27

Bilge Pump This part replaces 204470220.

278002020

$99.49

28

Pop-Rivet 5/32

293150059

$0.57

29

Tie Wrap 368 mm

293750008

$1.04

30

Tridon Gear Clamp

293650172

$3.09

31

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

32

Shoe Ride Cap

291002035

Unavailable

33

Phillips Screw M5 x 12

250000319

$1.39

34

Multi-fonction Indicator

278001903

Unavailable

35

Steering Harness Ass'y | Includes 35 to 45

278001901

Unavailable

36

Male Terminal

278000631

$4.39

37

Female Terminal

278000632

$2.09

38

Female Housing, 4 Circuits

278000635

$16.49

39

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

40

Female Wedge, 4 Circuits

278000636

$4.39

41

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

42

BUZZER - Call your local BRP dealership

278001586

Unavailable

43

SAFETY SWITCH - Call your local BRP dealership

278001944

Unavailable

44

DESS Post

278002029

Unavailable

45

SWITCH START / STOP ASS'Y - Call your local BRP dealership

278001933

Unavailable

46

Safety Nut (DESS Switch)

278002963

$3.28

47

Tie-Rap 173 mm

293750009

$1.04

48

Tie-Rap 173 mm

293750009

$1.04

49

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

50

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99
