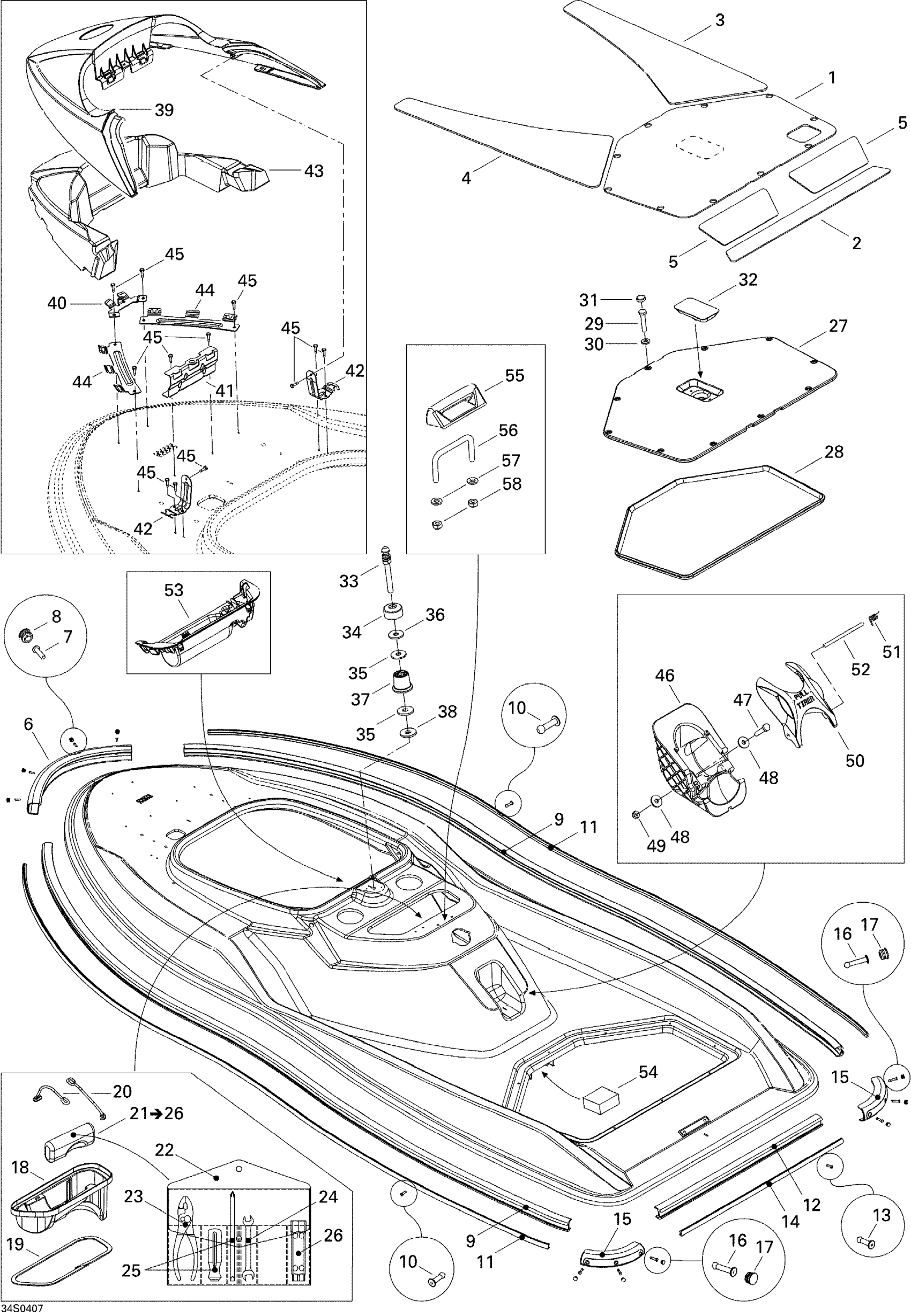

Sea-doo 3D RFI, 2004 Body Diagram

#

Description
Price

1

Rear Door Carpet

291001949

Unavailable

2

Rear Carpet

291002032

Unavailable

3

RH Center Carpet

291001950

Unavailable

4

LH Center Carpet

291001951

Unavailable

5

Rear Lateral Carpet

291002113

Unavailable

6

BUMPER NOSE - Call your local BRP dealership

291000801

Unavailable

7

Pop Rivet 3/16"

293150014

$1.09

8

Bumper Plug, Black

291000339

$2.99

9

Black, Side Bumper

204050270

$179.99

10

Pop Rivet 3/16"

293150005

$0.52

11

Lateral Bumper Trim, Yellow | Yellow B-244

291002019

Unavailable

12

REAR BUMPER, BLACK - Call your local BRP dealership

291002242

Unavailable

13

Pop Rivet 3/16"

293150005

$0.52

14

Bumper Trim, yellow | Yellow B-244

291002020

Unavailable

15

Bumper Corner

291002244

$48.99

16

Pop Rivet 3/16"

293150013

$1.37

17

Bumper Plug, Black

291000339

$2.99

18

Central Luggage Tray | Includes 24 to 25

269501251

Unavailable

19

Gasket, Neoprene 2000Mm Long

219704476

$15.36

20

Strap

269501299

$19.49

21

Tool Kit | Includes 27 to 32

294000687

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

FORK WRENCH - Call your local BRP dealership

529017300

Unavailable

25

DRIVER SCREW - Call your local BRP dealership

529019200

Unavailable

26

Socket Wrench 10/13 mm

529014900

$0.94

27

Rear Cover Ass'y

269501298

Unavailable

28

Was 293200017 Neoprene Seal

219704365

$149.99

29

Hex. Screw M6 X 30

207063060

$1.89

30

Stainless Flat Washer M6

234061600

$0.33

31

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

32

Foam Latch | CDN/USA

291002045

Unavailable

33

LATCH STUD - Call your local BRP dealership

291002040

Unavailable

34

Rubber Pad

293830025

Unavailable

35

Flat Washer 10 mm, Stainless

234002600

$2.22

36

Flat Washer 10 mm, Stainless

234001600

$1.15

37

Spacer Ring

291001089

Unavailable

38

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

39

Front Cover | Yellow B-244

277001238

Unavailable

40

Deflector Support

291002021

Unavailable

41

Central Deflector Support

291002037

Unavailable

42

Rear Deflector Support

291002038

Unavailable

43

Deflector Foam

291002039

Unavailable

44

Lateral Deflector Support

291002041

Unavailable

45

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

46

BASE - Call your local BRP dealership

269001019

Unavailable

47

Hex. Screw M6 X 30

207063060

$1.89

48

Flat Washer M6, Stainless

234062600

$0.77

49

Hex. Elastic Stop Nut M6

232561600

$1.15

50

BASE DOOR - Call your local BRP dealership

269001129

Unavailable

51

DOOR SPRING - Call your local BRP dealership

269001130

Unavailable

52

DOOR SHAFT - Call your local BRP dealership

269001131

Unavailable

53

EXTINGUISHER TRAY - Call your local BRP dealership

269501290

Unavailable

54

Deck Foam

291002031

Unavailable

55

Pole Hook

269001138

Unavailable

56

U BOLT - Call your local BRP dealership

269001142

Unavailable

57

Stainless Flat Washer M6

234061600

$0.33

58

Hex. Elastic Stop Nut M6

232561600

$1.15
