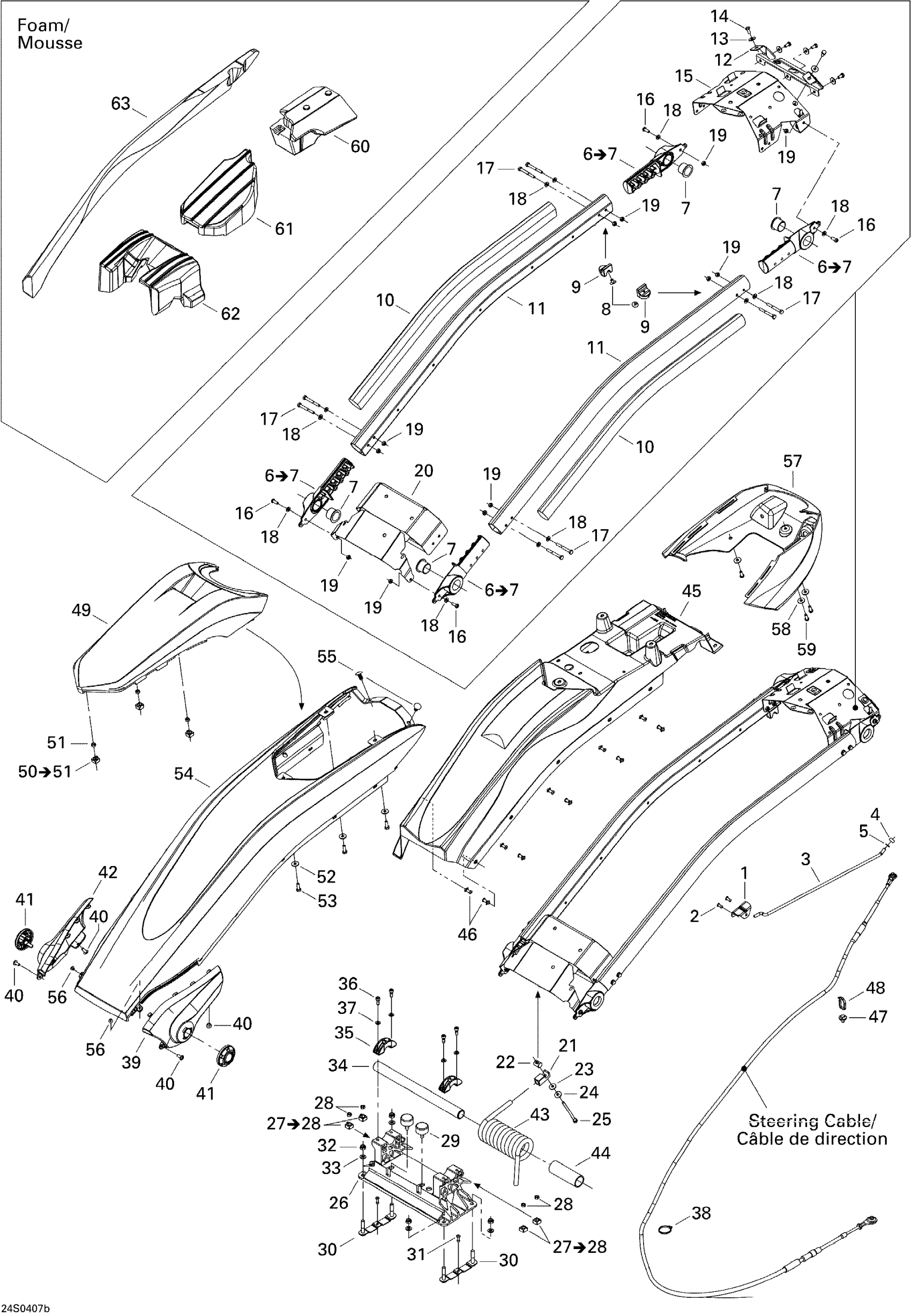

Sea-doo 3D RFI, 2004 Steering System 2 Diagram

#

Description
Price

1

Prop Rod Hold

277001311

Unavailable

2

Pop Rivet 3/16"

293150043

$2.09

3

PROP ROD - Call your local BRP dealership

277001310

Unavailable

4

Shock Washer

293720075

Unavailable

5

Stainless Flat Washer M6

234061600

$0.33

6

END ASS'Y - Call your local BRP dealership | Includes 6 to 7

277001312

Unavailable

7

BUSHING - Call your local BRP dealership

293900055

Unavailable

8

Pop Rivet 3/16”

293150092

$3.09

9

RUBBER BUMPER - Call your local BRP dealership

277001294

Unavailable

10

Pole Float

277001348

Unavailable

11

Beam

277001226

Unavailable

12

BUMPER SUPPORT - Call your local BRP dealership

277001349

Unavailable

13

Flat Washer M6, Stainless

234062600

$0.77

14

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.58

15

Support

277001340

Unavailable

16

Socket Screw M6 X 16

205461660

$7.48

17

Hex. Screw M6 X 50

207065060

$2.22

18

Stainless Flat Washer M6

234061600

$0.33

19

Hex. Elastic Stop Nut M6

232561600

$1.15

20

STIFFENER - Call your local BRP dealership

277001228

Unavailable

21

Spring Hook

277001341

Unavailable

22

Cylindrical Nut

277001342

Unavailable

23

Flat Washer 6 mm

234062100

$1.26

24

Flat Washer M6, Stainless

234062600

$0.77

25

Hex. Screw M6 X 90

207169060

$4.34

26

MOUNT BRIGE - Call your local BRP dealership

277001230

Unavailable

27

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

28

Hex. Nut M6

232061600

$1.15

29

Rubber Stopper

708000758

$12.99

30

Retainer Plate

277001231

Unavailable

31

Pop Rivet 3/16"

293150008

$0.50

32

Hex. Elastic Nut M8

232581600

$1.48

33

Stainless, Flat Washer 8 mm

234081600

$0.55

34

Tube

277001232

Unavailable

35

RETAINER CLAMP ANODIZED - Call your local BRP dealership

277001233

Unavailable

36

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

37

Stainless Flat Washer M6

234061600

$0.33

38

Tie-Rap 180 mm

414115200

$0.11

39

LH END CAP - Call your local BRP dealership

277001234

Unavailable

40

Socket Screw Button Head M6 X 10 | DS 650

250000436

$2.11

41

AXLE CAP - Call your local BRP dealership

277001274

Unavailable

42

RH END CAP - Call your local BRP dealership

277001235

Unavailable

43

Spring

277001315

Unavailable

44

Spring Guide

277001237

Unavailable

45

Inner Cover

277001229

Unavailable

46

Rivet | Model-T3

293150067

$2.89

47

Mount Dart

293730040

$1.04

48

Tie-Rap 180 mm

414115200

$0.11

49

Upper Steering Cover

277001221

Unavailable

50

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

51

Elastic Stop Nut M6, Brass

232561200

$4.23

52

Flat Washer M6, Stainless

234062600

$0.77

53

Hex. Forming Screw M6 X 20

207162060

$1.29

54

Cover Pole | Yellow B-244

277001224

Unavailable

55

Black Dart

293730010

$0.99

56

Pop Rivet 3/16"

204000081

$1.49

57

LOWER STEERING COLUMN TRIM - Call your local BRP dealership

277001268

Unavailable

58

Flat Washer M6, Stainless

234062600

$0.77

59

SOCKET HEAD SCREW M6, SCOTCH GRIP - Call your local BRP dealership

205961660

Unavailable

60

Lower Pole Foam

277001304

Unavailable

61

Middle Pole Foam

277001317

Unavailable

62

Upper Pole Foam

277001314

Unavailable

63

RH Pole Foam

277001350

Unavailable
