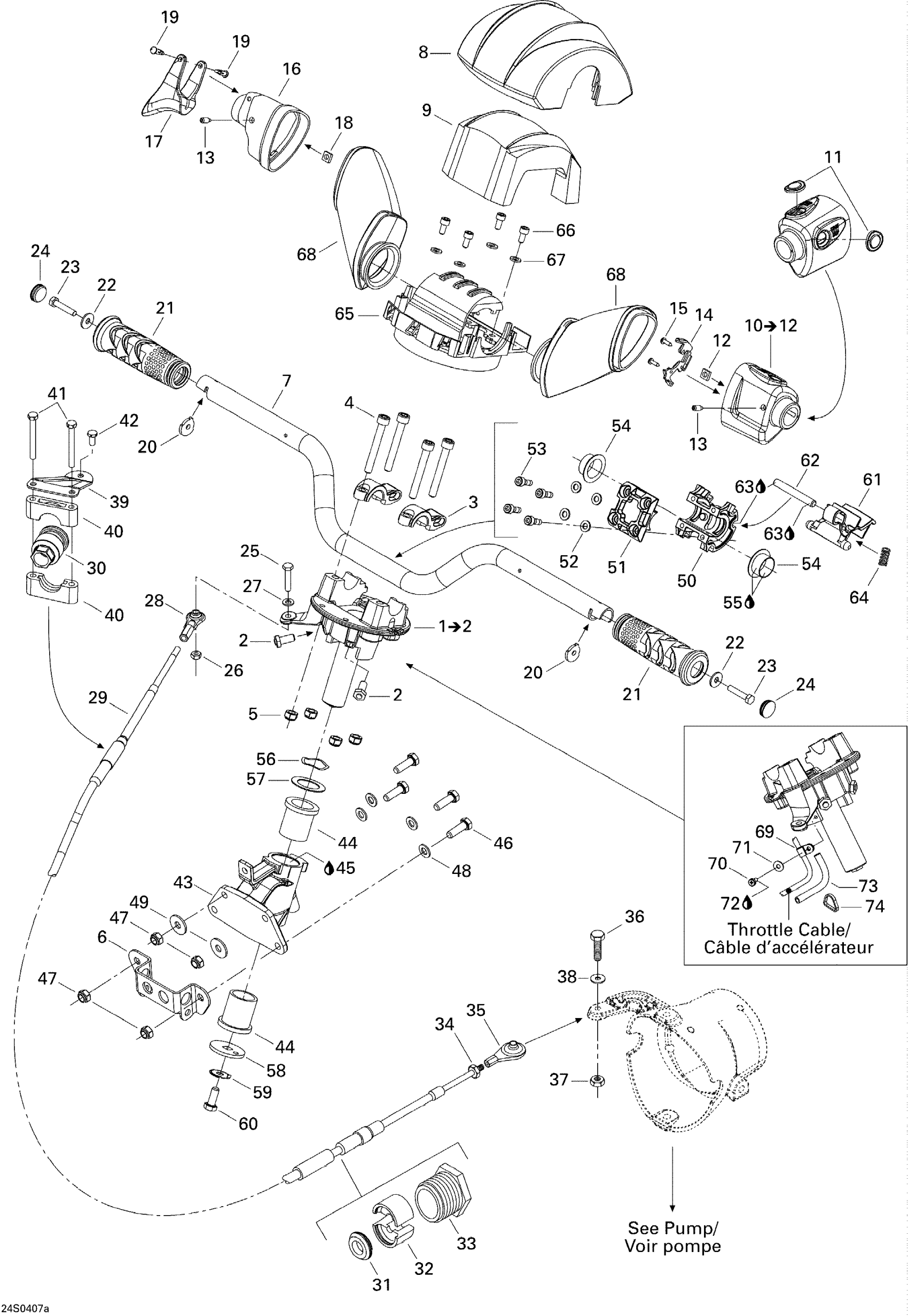

Sea-doo 3D RFI, 2004 Steering System 1 Diagram

#

Description
Price

1

Rod Ass'y | Includes 1 to 2

277001211

Unavailable

2

LOW SPEED CONTROL ACTUATOR - Call your local BRP dealership

278002030

Unavailable

3

STEERING CLAMP - Call your local BRP dealership

277001253

Unavailable

4

Socket Head Screw M8 X 60

205086060

Unavailable

5

Hex. Elastic Nut M8

232581600

Unavailable

6

LATCH SUPPORT - Call your local BRP dealership

269001135

Unavailable

7

Handlebar

277001210

Unavailable

8

STEERING PAD - Call your local BRP dealership

277001212

Unavailable

9

PAD FOAM - Call your local BRP dealership

277001343

Unavailable

10

HOUSING ASS'Y - Call your local BRP dealership | Includes 19 to 21

277001257

Unavailable

11

Switch Knob

277000306

Unavailable

12

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

13

Socket Head Screw M6 X 16

250000036

Unavailable

14

Retainer Plate

277001213

Unavailable

15

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

16

THROTTLE HOUSING ASS'Y - Call your local BRP dealership

277000872

Unavailable

17

THROTTLE HANDLE - Call your local BRP dealership

277001261

Unavailable

18

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

19

PIN - Call your local BRP dealership

277000381

Unavailable

20

Insert Grip Handle

277001863

Unavailable

21

Handle Grip | Premium, Yellow B-244

277001316

Unavailable

22

Flat Washer M6, Stainless

234062600

Unavailable

23

Hex. Screw M6 X 30, Scotch Grip

250000002

Unavailable

24

Black, Cap

277000203

Unavailable

25

Hex. Screw M6 X 30

207063060

Unavailable

26

Hex. Elastic Stop Nut M6

232561600

Unavailable

27

Stainless Flat Washer M6

234061600

Unavailable

28

Ball Joint

277000775

Unavailable

29

Steering Cable

277001339

Unavailable

30

Ajustment Knob

277000782

Unavailable

31

Rubber Washer

293830063

Unavailable

32

Half Ring

277001527

Unavailable

33

Steering Cable Lock This part replaces 277000784.

277001729

Unavailable

34

Hex. Nut 1/4"-28

211100056

Unavailable

35

Ball Joint

277000775

Unavailable

36

Hex. Screw M6 X 35

207063560

Unavailable

37

Hex. Elastic Stop Nut M6

232561600

Unavailable

38

Stainless Flat Washer M6

234061600

Unavailable

39

Cable Support

277000738

Unavailable

40

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

41

Hex. Screw M6 X 55, Scotch Grip | Except Europe

207265560

Unavailable

42

Hex. Screw M6 X 12, Scotch Grip

207361260

Unavailable

43

Pillow Block Ass'y | Includes OTAS Sensor

296000243

Unavailable

44

BUSHING - Call your local BRP dealership

293900062

Unavailable

45

Synthetic Grease, 400 G

293550010

Unavailable

46

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

47

Hex. Elastic Nut M8

232581600

Unavailable

48

Stainless, Flat Washer 8 mm

234081600

Unavailable

49

Flat Washer 8 mm, Stainless

234082600

Unavailable

50

Block Indexing

277001264

Unavailable

51

Block Fixing Anodized

277001298

Unavailable

52

Stainless Flat Washer M6

234061600

Unavailable

53

Socket Head Screw M6 X 16, Scotch Grip

205561660

Unavailable

54

FLANGE BUSHING - Call your local BRP dealership

277001214

Unavailable

55

Synthetic Grease, 400 G

293550010

Unavailable

56

Spring Washer

211200008

Unavailable

57

SHIM - Call your local BRP dealership

293350006

Unavailable

58

RETAINER WASHER - Call your local BRP dealership

277001262

Unavailable

59

WASHER - Call your local BRP dealership

277001263

Unavailable

60

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

61

Ajustment Lever

277001217

Unavailable

62

ROD LOCK - Call your local BRP dealership

277001266

Unavailable

63

Synthetic Grease, 400 G

293550010

Unavailable

64

Compression Spring

277001267

Unavailable

65

PAD SUPPORT HANDLE - Call your local BRP dealership

277001254

Unavailable

66

Socket Head Screw M6 X 12, Scotch Grip

205561260

Unavailable

67

Stainless Flat Washer M6

234061600

Unavailable

68

COVER HANDLE - Call your local BRP dealership

277001313

Unavailable

69

OPEN CLAMP - Call your local BRP dealership

293850083

Unavailable

70

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

71

Flat Washer 4 mm, Stainless

234042600

Unavailable

72

Loctite 243, 10 ml

293800060

Unavailable

73

Tubing 6 Mm 3000Mm Long

219704425

Unavailable

74

Tie Wrap 142 mm

293750002

Unavailable
