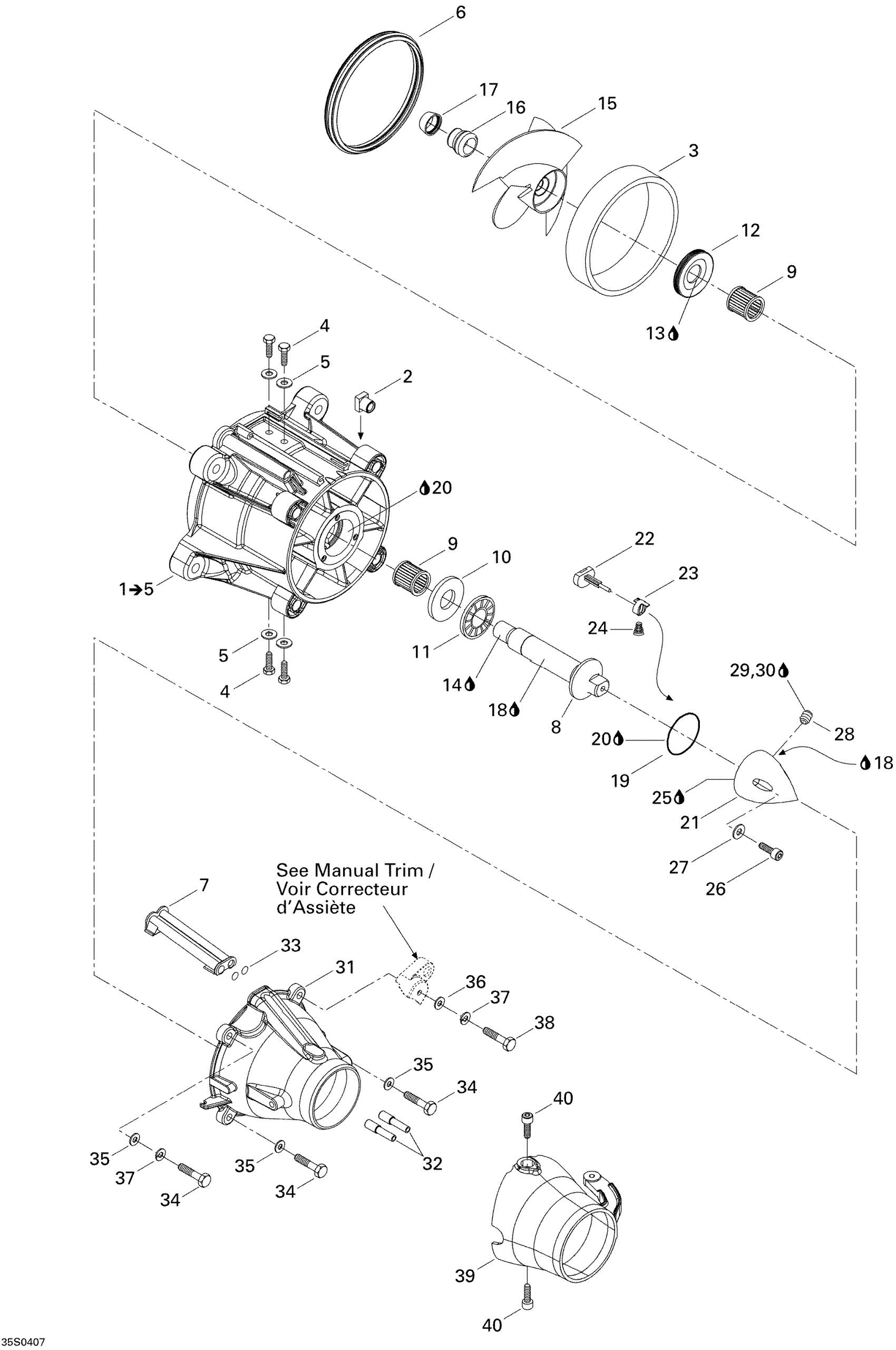

Sea-doo 3D RFI, 2004 Pump Diagram
#
1
HOUSING ASSY - Call your local BRP dealership | Includes 1 to 5
271001381
Unavailable
2
Square Nut M8
211100033
Unavailable
3
Wear Ring
271000653
Unavailable
4
Hex. Plastite Screw #10 X 3/8"
250000040
Unavailable
5
Flat Washer M5, Stainless
234051600
Unavailable
6
Neoprene Seal
293200087
Unavailable
7
Water Outlet
271000785
Unavailable
8
Impeller Shaft
271000965
Unavailable
9
Needle Bearing
293350017
Unavailable
10
THRUST WASHER - Call your local BRP dealership
293350020
Unavailable
11
Thrust-Bearing
293350022
Unavailable
12
Oil Seal
267000094
Unavailable
13
Était/Was 293800038 Loctite 518, 50 ml
219704456
Unavailable
14
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
15
Stainless Steel Impeller Ass'Y
267000209
Unavailable
16
Impeller Boot
271000516
Unavailable
17
Impeller Ring
271000517
Unavailable
18
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4
779221
Unavailable
19
O-Ring
293300011
Unavailable
20
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
21
IMPELLER COVER - Call your local BRP dealership
271001250
Unavailable
22
PUSHER ASS?Y - Call your local BRP dealership
271001124
Unavailable
23
SLIDER - Call your local BRP dealership
271001107
Unavailable
24
SPRING - Call your local BRP dealership
271001108
Unavailable
25
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
26
Socket Head Screw M6 X 25, Scotch Grip
205562560
Unavailable
27
Stainless Flat Washer M6
234061600
Unavailable
28
Pipe Plug Socket Head 1/8-27 Npt
211500001
Unavailable
29
Was 293800013 Loctite 56765
219704454
Unavailable
30
Was 293800041 Loctite Primer 7649
219704458
Unavailable
31
Venturi, Black
267000072
Unavailable
32
Siphon Tube
271001133
Unavailable
33
O-Ring
293300013
Unavailable
34
Hex. Screw M8 X 50, Scotch Grip
207285060
Unavailable
35
Stainless, Flat Washer 8 mm
234081600
Unavailable
36
Flat Washer 8 mm, Stainless
234082600
Unavailable
37
Lock Washer 8 mm, Stainless
234181601
Unavailable
38
HEX. SCREW M8 X 65, SCOTCH GRIP - Call your local BRP dealership
207286560
Unavailable
39
STEERING NOZZLE, BLACK - Call your local BRP dealership
267000081
Unavailable
40
Socket Head Screw M8 X 10, Scotch Grip
211000127
Unavailable
