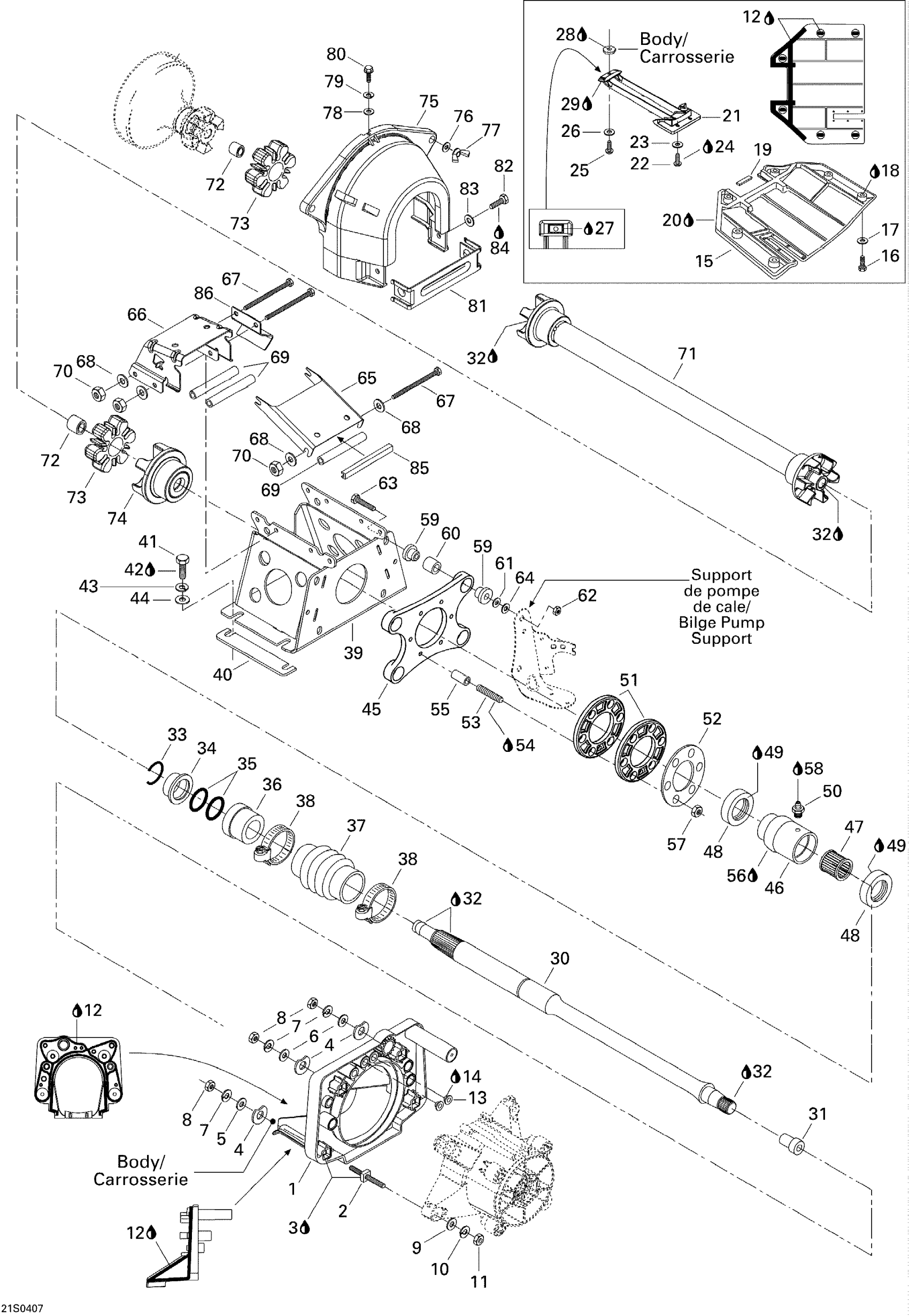

Sea-doo 3D RFI, 2004 Propulsion Diagram

#

Description
Price

1

Pump Support

271001439

Unavailable

2

Square Stud

250300022

$20.99

3

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

4

Shim 0.3 mm

272000053

$11.49

5

Flat Washer 10 mm, Stainless

234002600

$2.22

6

Flat Washer 10 mm, Stainless

234002600

$2.22

7

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

8

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

9

Flat Washer 10 mm, Stainless

234002600

$2.22

10

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

11

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

12

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

13

Watertight Seal

293250084

$7.49

14

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

15

RIDING PLATE, BLACK - Call your local BRP dealership

271001453

Unavailable

16

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

17

Stainless, Flat Washer 8 mm

234081600

$0.55

18

Silicone Sealant 51388, 300 ml

296000309

$36.99

19

Neoprene Seal (1PAC=3M)

219704364

$27.49

20

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

21

Pump Grate, Black

271001455

Unavailable

22

Hex. Screw M6 X 16

207161660

$1.59

23

Stainless Flat Washer M6

234061600

$0.33

24

Loctite 271, 10 ml

293800005

$26.99

25

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

26

Stainless, Flat Washer 8 mm

234081600

$0.55

27

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

28

Silicone Sealant 51388, 300 ml

296000309

$36.99

29

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

30

Drive Shaft

272000150

Unavailable

31

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

32

Synthetic Grease, 400 G

293550010

Unavailable

33

C-CLIP - Call your local BRP dealership

272000135

Unavailable

34

Support Ring

272000064

$66.49

35

O-Ring

293300032

$6.03

36

Carbon Ring

272000770

$45.99

37

BELLOWS - Call your local BRP dealership

272000184

$27.99

38

Norma Clamp

293650075

$11.06

39

SHAFT SUPPORT - Call your local BRP dealership

271001457

Unavailable

40

Shim

272000166

Unavailable

41

Hex. Screw M8 X 30

207183060

$1.58

42

Loctite 243, 10 ml

293800060

$21.49

43

Lock Washer 8 mm, Stainless

234181601

$0.55

44

Stainless, Flat Washer 8 mm

234081600

$0.55

45

Not Available As Spare Part - Friction Washer

Unavailable

46

JOINT SUPPORT - Call your local BRP dealership

272000012400

Unavailable

47

NEEDLE BEARING SCE1416-L271/STD#E - Call your local BRP dealership

293350007

Unavailable

48

DOUBLE LIP SEAL - Call your local BRP dealership

293200012

Unavailable

49

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

50

GREASE FITTING - Call your local BRP dealership

293550008

Unavailable

51

ALIGNMENT WASHER - Call your local BRP dealership

272000049400

Unavailable

52

Fixation Washer

272000051

Unavailable

53

STUD M6 X 30 - Call your local BRP dealership

211300016

Unavailable

54

Loctite 271, 10 ml

293800005

$26.99

55

SPACER - Call your local BRP dealership

271001319

Unavailable

56

Synthetic Grease, 400 G

293550010

Unavailable

57

Hex. Elastic Stop Nut M6

232561600

$1.15

58

Synthetic Grease, 400 G

293550010

Unavailable

59

Rubber Bushing

293830031

Unavailable

60

Bushing

274000114

$8.85

61

Stainless, Flat Washer 8 mm

234081600

$0.55

62

Hex. Elastic Nut M8

232581600

$1.48

63

Hex. Screw M8 X 45

207084560

$3.38

64

Flat Washer 8 mm, Stainless

234082600

$2.43

65

Shaft Guard

271001458

Unavailable

66

Deck Support

291002030

Unavailable

67

HEX. SCREW M6 X 120 - Call your local BRP dealership

230062060

Unavailable

68

Flat Washer M6, Stainless

234062600

$0.77

69

SPACER - Call your local BRP dealership

291000757

Unavailable

70

Elastic Stop Nut M6, Brass

232561200

$4.23

71

TRANSMISSION SHAFT ASSY - Call your local BRP dealership

272000154

Unavailable

72

SNAP BUSHING - Call your local BRP dealership

293900016

Unavailable

73

RUBBER ADAPTOR - Call your local BRP dealership

293830067

Unavailable

74

COUPLER ASSY - Call your local BRP dealership

272000158

Unavailable

75

Flywheel Guard

271001440

Unavailable

76

Flat Washer 8 mm, Stainless

234082600

$2.43

77

Wing Nut M8

232681100

$2.19

78

Flat Washer M5, Stainless

234051600

$0.77

79

Helical Lock Washer M5

234151601

$1.15

80

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

81

FRONT LOWER GUARD - Call your local BRP dealership

291001228

Unavailable

82

Hex. Screw M6 X 16

207161660

$1.59

83

Flat Washer M6, Stainless

234062600

$0.77

84

Loctite 243, 10 ml

293800060

$21.49

85

TRIM 30000MM LONG - Call your local BRP dealership

219704405

$99.99

86

Deck Support

291002146

Unavailable
