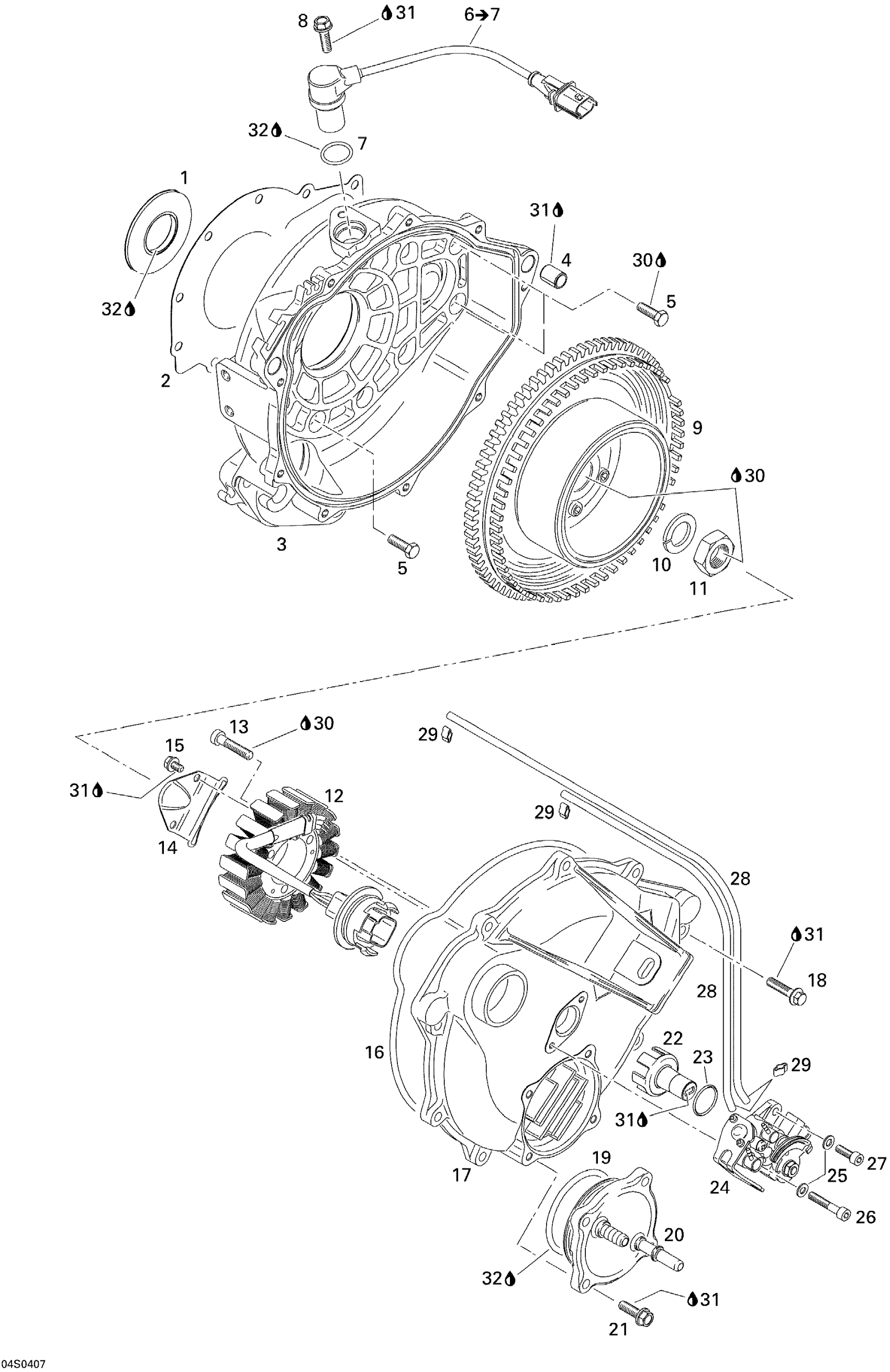

Sea-doo 3D RFI, 2004 03- Magneto And Oil Pump Diagram

#

Description
Price

1

Oil Seal This part replaces 290830749.

420830749

$18.54

2

GASKET - Call your local BRP dealership

420931470

Unavailable

3

IGNITION HOUSING, BLACK - Call your local BRP dealership

420811012

Unavailable

4

Dowel Tube

420229153

Unavailable

5

Hex. Screw M6 X 25

420240034

$1.90

6

Crank Sensor Ass'y | Includes 31 to 32

278001874

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Hex. Forming Screw M6 X 16

210361660

Unavailable

9

FLYWHEEL ASS'Y - Call your local BRP dealership

420966564

Unavailable

10

LOCK WASHER 18 MM - Call your local BRP dealership

420945757

Unavailable

11

HEX. NUT M18 - Call your local BRP dealership

420942220

Unavailable

12

STATOR PLATE ASS'Y - Call your local BRP dealership

420887951

Unavailable

13

Socket Head Screw M6 X 35 This part replaces 420640051.

420640052

$5.61

14

Holding Strip

420851400

Unavailable

15

HEX. SCREW M5 X 8 - Call your local BRP dealership

207150844

Unavailable

16

O-RING - Call your local BRP dealership This part replaces 290950360.

420950360

Unavailable

17

Ignition Cover, black

420811023

Unavailable

18

HEX. FLANGED SCREW M6 X 25 - Call your local BRP dealership

420240033

Unavailable

19

O-RING - Call your local BRP dealership

420850390

Unavailable

20

WATERCHANNEL COVER - Call your local BRP dealership

420811220

Unavailable

21

TAPPING SCREW M6 X 20 - Call your local BRP dealership

420941253

Unavailable

22

OIL PUMP SHAFT - Call your local BRP dealership

420837392

Unavailable

23

O-RING - Call your local BRP dealership

293300018

Unavailable

24

OIL PUMP ASS?Y - Call your local BRP dealership

420887338

Unavailable

25

LOCK WASHER 5 MM - Call your local BRP dealership

420845389

Unavailable

26

Socket Head Screw M5 X 30

420940883

Unavailable

27

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205051660

Unavailable

28

Oil Hose 1500Mm Long

219704404

$17.26

29

Clamp

420256408

Unavailable

30

Loctite 243, 10 ml

293800060

$21.49

31

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

32

Dow Corning 111, 150 g

413707000

$59.99
