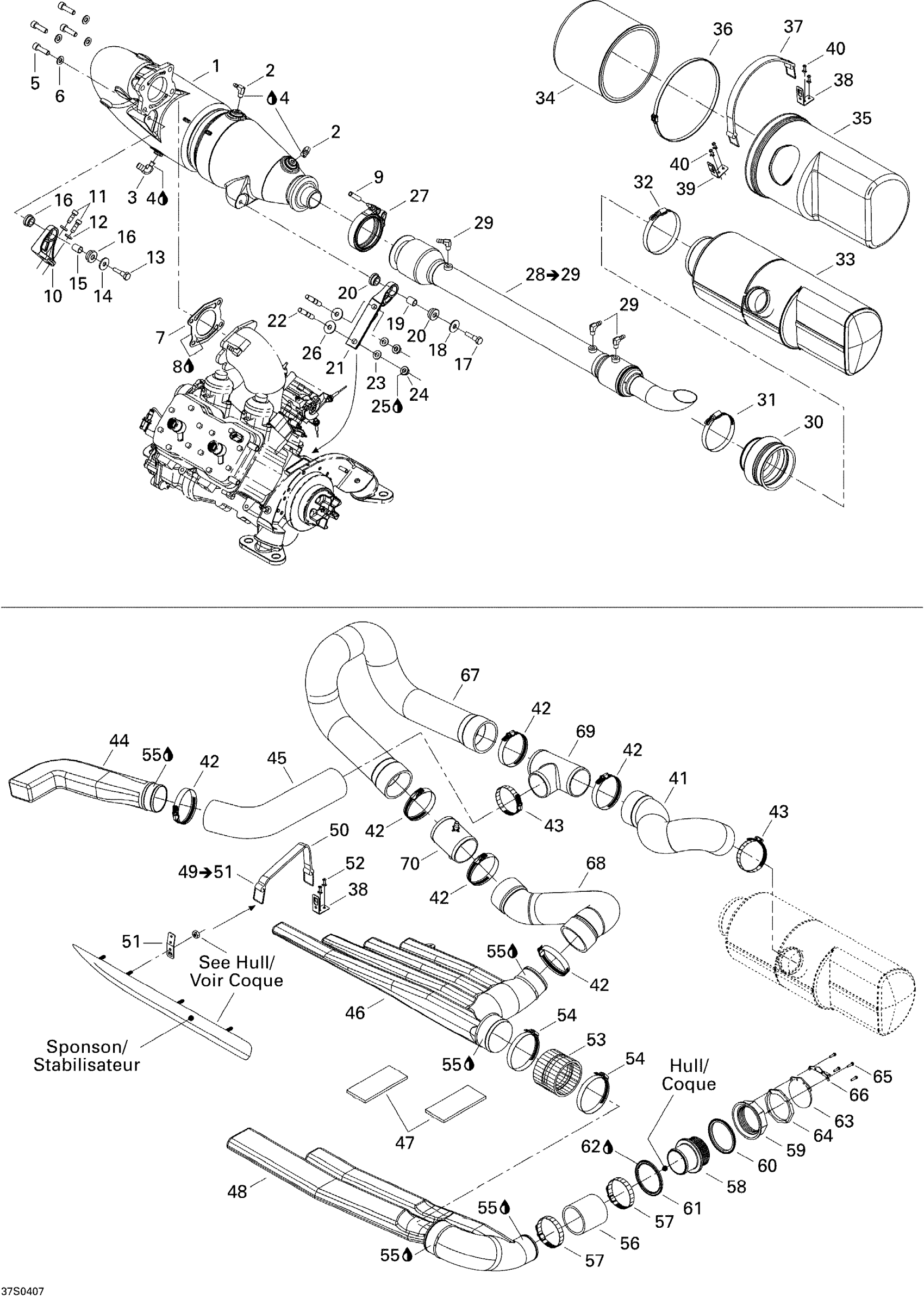

Sea-doo 3D RFI, 2004 Exhaust System Diagram

#

Description
Price

1

Pipe Head, Black

274001124

Unavailable

2

Elbow Fitting

293700016

Unavailable

3

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

4

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

5

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

6

Flat Washer 10 mm, Stainless

234001600

$1.15

7

EXHAUST GASKET - Call your local BRP dealership

420931503

Unavailable

8

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

9

Polyurethane Hose 10000Mm Long

219704410

$56.99

10

Pipe Support

274001129

Unavailable

11

Socket Head Screw M8 X 25, Scotch Grip

205582560

$2.19

12

Flat Washer M8.5 x 18

293050001

$3.07

13

HEX. SCREW M10 X 40, SCOTCH GRIP - Call your local BRP dealership

245004060

Unavailable

14

Flat Washer 10 mm, Stainless

234002600

$2.22

15

BUSHING - Call your local BRP dealership

274000861

Unavailable

16

RUBBER BUSHING - Call your local BRP dealership

293830065

Unavailable

17

HEX. SCREW M10 X 40, SCOTCH GRIP - Call your local BRP dealership

245004060

Unavailable

18

Flat Washer 10 mm, Stainless

234002600

$2.22

19

BUSHING - Call your local BRP dealership

274000861

Unavailable

20

RUBBER BUSHING - Call your local BRP dealership

293830065

Unavailable

21

Pipe Support

274001131

Unavailable

22

Stud M10 X 60

250300007

Unavailable

23

Flat Washer 10 mm, Stainless

234001600

$1.15

24

Hex. Flange Nut M10

233101600

$5.29

25

Loctite 243, 10 ml

293800060

$21.49

26

Flat Washer 10 mm, Stainless

234002600

$2.22

27

Exhaust Clamp

274001132

Unavailable

28

Extension Tube | Includes 28 to 29

274001174

Unavailable

29

Elbow Fitting

293700016

Unavailable

30

EXHAUST BELLOW - Call your local BRP dealership

274001116

Unavailable

31

TRIDON GEAR CLAMP - Call your local BRP dealership

293650168

Unavailable

32

TRIDON GEAR CLAMP - Call your local BRP dealership

293650169

Unavailable

33

Muffler

274001070

Unavailable

34

Front Muffler Cover

274001071

Unavailable

35

MUFFLER COVER, REAR - Call your local BRP dealership

274001072

Unavailable

36

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

37

Fuel Tank Strap

293850036

$18.99

38

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

39

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

40

Avdel Rivet 3/16"

293150037

$0.56

41

EXHAUST HOSE - Call your local BRP dealership

274001083

Unavailable

42

Tridon Clamp

293650179

$11.49

43

Tridon Clamp

293650064

$8.29

44

Straight Resonator

274000994

Unavailable

45

Exhaust Hose

274001077

Unavailable

46

LH UPPER RESONATOR - Call your local BRP dealership

274000700

Unavailable

47

RUBBER PAD - Call your local BRP dealership

274000752

Unavailable

48

RESONATOR EXTENSION - Call your local BRP dealership

274000701

Unavailable

49

Strap Ass`Y | Includes 56 to 58

293850082

Unavailable

50

Fuel Tank Strap

293850036

$18.99

51

Strap Clip

293850030

$11.12

52

Avdel Rivet 3/16"

293150037

$0.56

53

EXHAUST HOSE - Call your local BRP dealership

274000726

Unavailable

54

Tridon Clamp

204000079

$9.99

55

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

56

Exhaust Hose

274000616

Unavailable

57

Tridon Clamp

293650064

$8.29

58

Exhaust Hose, Outlet

274001391

$29.49

59

NUT 72 MM - Call your local BRP dealership

274000835

Unavailable

60

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

61

GASKET - Call your local BRP dealership

293250041

Unavailable

62

Silicone Sealant 51388, 300 ml

296000309

$36.99

63

GASKET - Call your local BRP dealership

293250107

Unavailable

64

SUPPORT NUT - Call your local BRP dealership

274000892

Unavailable

65

Hex. Flange Screw K40 X 16

241141660

$1.48

66

BRACKET - Call your local BRP dealership

274000885

Unavailable

67

Exhaust Hose

274001114

Unavailable

68

Exhaust Hose

274001115

Unavailable

69

T-Fitting

274001080

Unavailable

70

Adapter Hose

274001081

Unavailable
