01- Crankcase And Rotary Valve

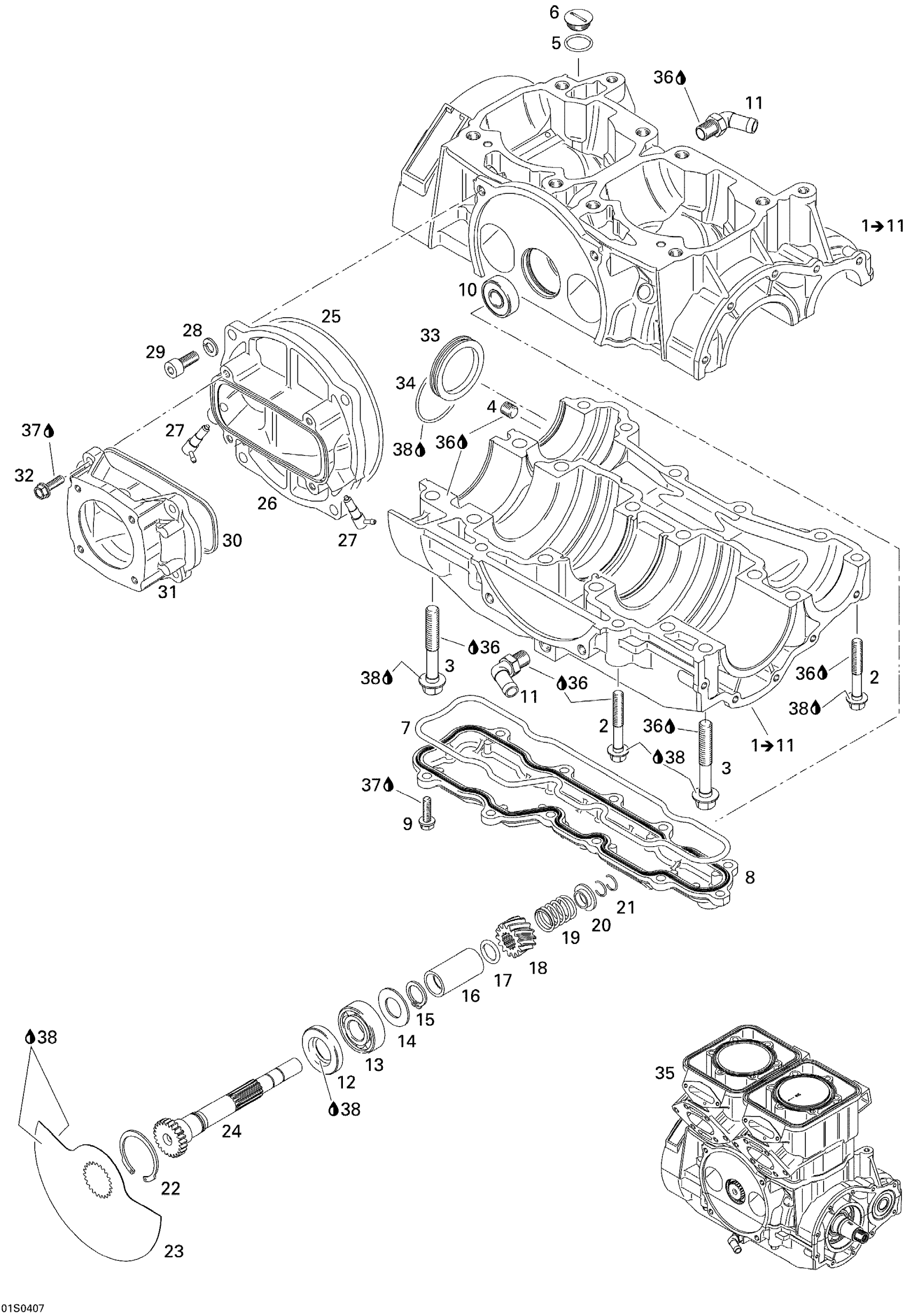

Sea-doo 3D RFI, 2004 01- Crankcase And Rotary Valve Diagram
#
1
Crankcase 787 Ass‘y | Includes 1 to 11
420888227
Unavailable
2
HEX. FLANGED SCREW M8 X 55 - Call your local BRP dealership
420240328
Unavailable
3
HEX. FLANGED SCREW M10 X 73.5 - Call your local BRP dealership
420941333
Unavailable
4
DRAIN PLUG 1/8 - Call your local BRP dealership
420240483
Unavailable
5
O-Ring
420250890
$3.06
6
Drain Plug
420241801
$7.41
7
O-RING - Call your local BRP dealership This part replaces 290950360.
420950360
Unavailable
8
WATERCHANNEL COVER 787, BLACK - Call your local BRP dealership
420811237
Unavailable
9
TAPPING SCREW M6 X 20 - Call your local BRP dealership
420941253
Unavailable
10
Ball Bearing
420932797
$19.99
11
Angular Tube, 90°
420922247
Unavailable
12
OIL SEAL - Call your local BRP dealership
420930580
Unavailable
13
BALL BEARING - Call your local BRP dealership
293350051
Unavailable
14
SHIM - Call your local BRP dealership
420227439
Unavailable
15
SNAP RING - Call your local BRP dealership
420845450
Unavailable
16
DISTANCE SLEEVE - Call your local BRP dealership
420847287
Unavailable
17
O-Ring
293300024
$8.57
18
Sprocket 14Th This part replaces 420935735.
420935736
$88.99
19
SPRING - Call your local BRP dealership
420938810
Unavailable
20
SPRING SEAT - Call your local BRP dealership
420827430
Unavailable
21
CIRCLIP - Call your local BRP dealership
420845160
Unavailable
22
Lock Ring
420945880
$4.44
23
ROTARY VALVE, 159 - Call your local BRP dealership This part replaces 290924502.
420924502
Unavailable
24
ROTARY VALVE SHAFT - Call your local BRP dealership
420837352
Unavailable
25
O-RING - Call your local BRP dealership
420831767
Unavailable
26
ROTARY VALVE COVER - Call your local BRP dealership | Includes 26 to 27
420811037
$359.99
27
Check Valve
420956511
$35.99
28
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
29
SOCKET SCREW M8 X 20 - Call your local BRP dealership
205082060
Unavailable
30
RUBBER RING - Call your local BRP dealership
420850520
Unavailable
31
Intake Manifold
420867822
Unavailable
32
TAPTITE SCREW M6 X 25 - Call your local BRP dealership
420841543
Unavailable
33
BEARING COVER - Call your local BRP dealership This part replaces 290810745.
420810745
Unavailable
34
O-RING - Call your local BRP dealership
420230300
Unavailable
35
Short Block 787, Black
420078707
Unavailable
36
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
37
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
38
Dow Corning 111, 150 g
413707000
$59.99
