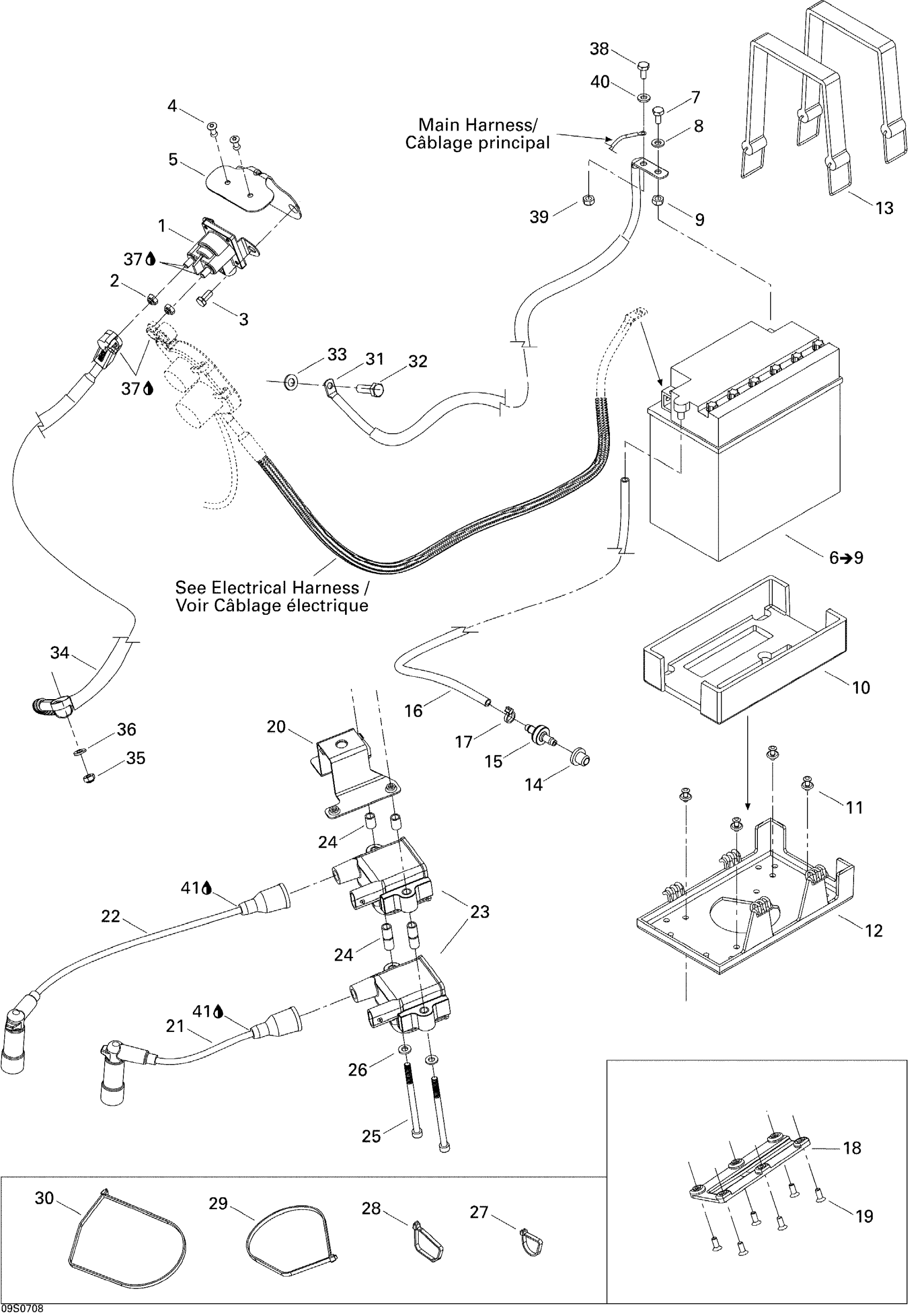

Sea-doo 3D 947 DI, 2007 10- Electrical System Diagram

#

Description
Price

1

Starter Relay

278003012

$42.49

2

Hex. Elastic Stop Nut M6

232561600

$1.15

3

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

4

Pop Rivet 3/16"

293150043

$2.09

5

Relay Support

278002096

Unavailable

6

Battery 19A | Includes 5 to 8

278001756

$153.36

7

Hex. Screw M6 X 16

207161644

$0.74

8

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

9

Hex. Nut M6

232061414

$0.53

10

LOWER BATTERY PAD - Call your local BRP dealership

278001976

Unavailable

11

Avdel Rivet 3/16"

293150037

$0.56

12

BATTERY SUPPORT - Call your local BRP dealership

278001972

Unavailable

13

Retainer Strap

293850097

$11.64

14

Grommet

293720029

$1.59

15

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

16

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

17

Tie Wrap 94 mm | 4X4

293750001

$1.03

18

Shoe Ride Cap

291002035

Unavailable

19

Phillips Screw M5 x 12

250000319

$1.39

20

IGNITION COIL SUPPORT - Call your local BRP dealership

278002108

Unavailable

21

IGNITION WIRE - Call your local BRP dealership

278002100

Unavailable

22

Ignition Wire

278002099

Unavailable

23

IGNITION COIL - Call your local BRP dealership

278001451

Unavailable

24

Spacer

278000644

Unavailable

25

SOCKET HEAD SCREW M6 X 90, SCOTCH GRIP - Call your local BRP dealership

205569060

Unavailable

26

Stainless Flat Washer M6

234061600

$0.33

27

Tie Wrap 94 mm | 4X4

293750001

$1.03

28

Tie Wrap 142 mm

293750002

$1.25

29

Tie-Rap 180 mm

414115200

$0.11

30

Tie Wrap 368 mm

293750008

$1.04

31

BATTERY GROUND CABLE ASS'Y - Call your local BRP dealership

278001592

Unavailable

32

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

33

Stainless Flat Washer M6

234061600

$0.33

34

STARTER CABLE - Call your local BRP dealership

278002138

Unavailable

35

Elastic Stop Nut M6, Brass

232561200

$4.23

36

Stainless Flat Washer M6

234061600

$0.33

37

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

38

Hex. Cap Screw M6 X 12

207161260

$1.26

39

Elastic Stop Nut M6, Brass

232561200

$4.23

40

Stainless Flat Washer M6

234061600

$0.33

41

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99
