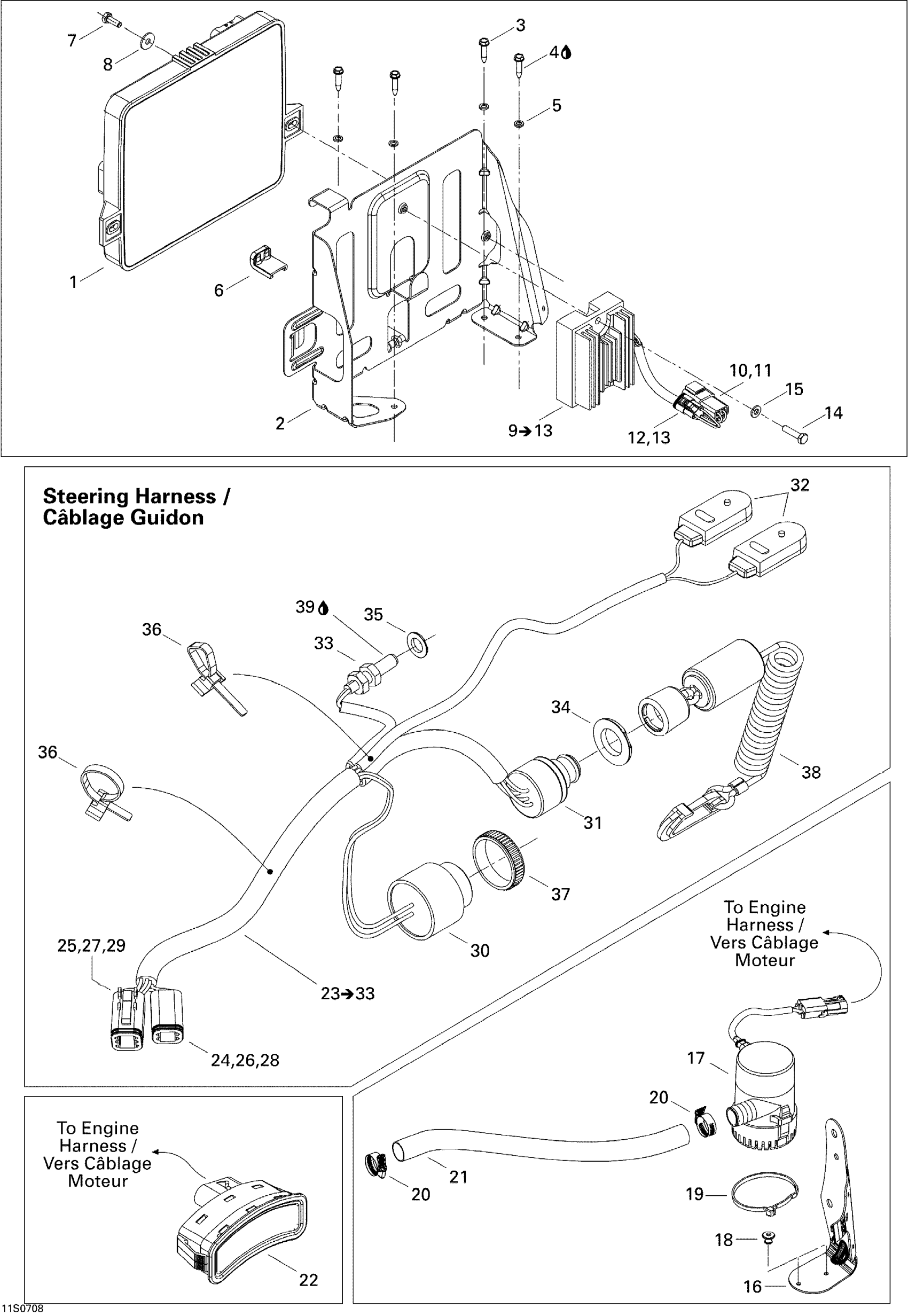

Sea-doo 3D 947 DI, 2007 10- Electrical Accessories Diagram

#

Description
Price

1

ELECTRONIC MODULE - Call your local BRP dealership

278002090

Unavailable

2

Module Support

278002095

Unavailable

3

Hex. Screw 10-14 X 7/8”

211000023

$3.59

4

Loctite 271, 10 ml

293800005

$26.99

5

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

6

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

7

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

8

Flat Washer M6, Stainless

234062600

$0.77

9

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

$174.99

10

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

11

Male Terminal

278000631

$4.39

12

Male Housing, 2 Circuits

409206900

$9.59

13

Male Terminal

515175568

$9.12

14

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.47

15

Stainless Flat Washer M6

234061600

$0.33

16

BILGE SUPPORT - Call your local BRP dealership

271000897

Unavailable

17

Bilge Pump This part replaces 204470220.

278002020

$99.49

18

Pop-Rivet 5/32

293150059

$0.57

19

Tie Wrap 368 mm

293750008

$1.04

20

Tridon Gear Clamp

293650172

$3.09

21

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

22

Multi-fonction Indicator

278001903

Unavailable

23

STEERING HARNESS - Call your local BRP dealership | Includes 23 to 33

278002113

Unavailable

24

Male Terminal

278000631

$4.39

25

Female Terminal

278000632

$2.09

26

Female Housing, 4 Circuits

278000635

$16.49

27

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

28

Female Wedge, 4 Circuits

278000636

$4.39

29

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

30

BUZZER - Call your local BRP dealership

278001586

Unavailable

31

SAFETY SWITCH - Call your local BRP dealership

278001944

Unavailable

32

SWITCH START / STOP ASS'Y - Call your local BRP dealership

278001933

Unavailable

33

OTAS SENSOR - Call your local BRP dealership

278002068

Unavailable

34

Safety Nut (DESS Switch)

278002963

$3.28

35

Flat Washer 10 mm, Stainless

234000600

$1.46

36

Tie-Rap 173 mm

293750009

$1.04

37

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

38

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

38

Safety Lanyard, Learning Key

278002203

$56.99

39

Loctite 243, 10 ml

293800060

$21.49
