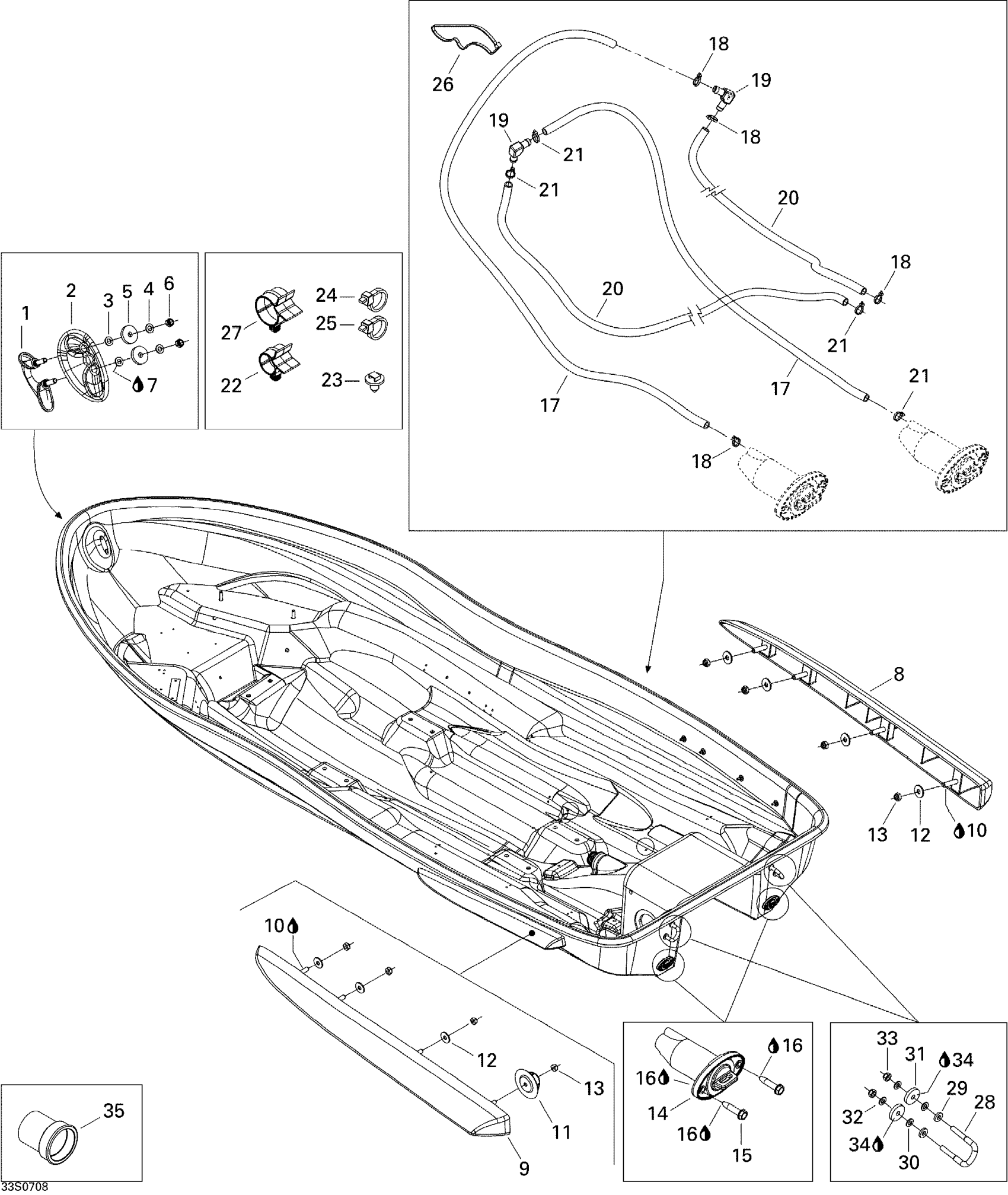

Sea-doo 3D 947 DI, 2007 09- Hull Diagram
#
Description
Price
1
Eye-Bow (Black) This part replaces 292000708.
292000452
$42.99
2
Black Shell
292001837
$20.99
3
Stainless, Flat Washer 8 mm
234081600
$0.55
4
Flat Washer 8 mm, Stainless
250200175
$3.06
5
Rubber Washer
293830037
$2.68
6
Hex. Elastic Nut M8
232581600
$1.48
7
Silicone Sealant 51388, 300 ml
296000309
$36.99
8
RH SPONSON - Call your local BRP dealership
292000411
Unavailable
9
LH SPONSON - Call your local BRP dealership
292000412
Unavailable
10
Silicone Sealant 51388, 300 ml
296000309
$36.99
11
Insulator
292000992
Unavailable
12
Flat Washer M6, Stainless
234062600
$0.77
13
Hex. Elastic Stop Nut M6
232561600
$1.15
14
Drain Plug
292001252
$36.99
15
Hex. Screw 10-14 X 7/8”
211000023
$3.59
16
Silicone Sealant 51388, 300 ml
296000309
$36.99
17
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
18
Tie Wrap 94 mm | 4X4
293750001
$1.03
19
ELBOW FITTING 90 - Call your local BRP dealership
293710057
Unavailable
20
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
21
Tie Wrap 94 mm | 4X4
293750001
$1.03
22
Cable Retainer
275500527
$2.68
23
Mount Dart
293730040
$1.04
24
Tie-Rap 180 mm
414115200
$0.11
25
Tie Wrap 368 mm
293750008
$1.04
26
Tie Wrap 368 mm
293750008
$1.04
27
Retainer
275500590
$9.69
28
U-Clamp
292000933
$59.49
29
Flat Washer M8.5 x 18
293050001
$3.07
30
Flat Washer 8 mm, Nylon
234081100
$1.39
31
Rubber Washer
293830037
$2.68
32
Flat Washer 8 mm, Stainless
250200175
$3.06
33
Hex. Elastic Nut M8
232581600
$1.48
34
Silicone Sealant 51388, 300 ml
296000309
$36.99
35
HULL INSERT, 33 MM - Call your local BRP dealership
292000075
Unavailable
