Description

Price

1

UPPER ENGINE COVER, VIPER RED - Call your local BRP dealership

269700095

Unavailable

2

Lower Engine Cover

269700084

Unavailable

3

FRONT VENTILATION BAFFLE - Call your local BRP dealership

269700093

Unavailable

4

REAR VENTILATION BAFFLE - Call your local BRP dealership

269700094

Unavailable

5

LH BOLT COVER, VIPER RED - Call your local BRP dealership

269700096

Unavailable

6

RH Bolt Cover, Viper Red

269700097

Unavailable

7

Was 293200017 Neoprene Seal

219704365

$149.99

8

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

9

Latch Ass'y

269700109

$24.99

10

Latch Ass'y

269700109

$24.99

11

Latch Ass'y

269700109

$24.99

12

Latch Spring

269700017

$9.19

13

RIVET 1/4 X 5/8 - Call your local BRP dealership

293150074

Unavailable

14

Stainless Flat Washer M6

234061600

$0.33

15

Pop Rivet 3/16”

293150092

$3.09

16

SOCKET SCREW M5 X 25 - Call your local BRP dealership

205452560

Unavailable

17

Flat Washer 5 mm, Stainless

234052600

$0.77

18

Hex. Elastic Nut M5 | X

232551600

$1.15

19

Socket Head Screw M6 X 25, Scotch Grip

250000076

$1.69

20

Flat Washer M6, Stainless

234062600

$0.77

21

Hex. Flange Nut M6

233161600

$1.15

22

Tie-Rap 180 mm

414115200

$0.11

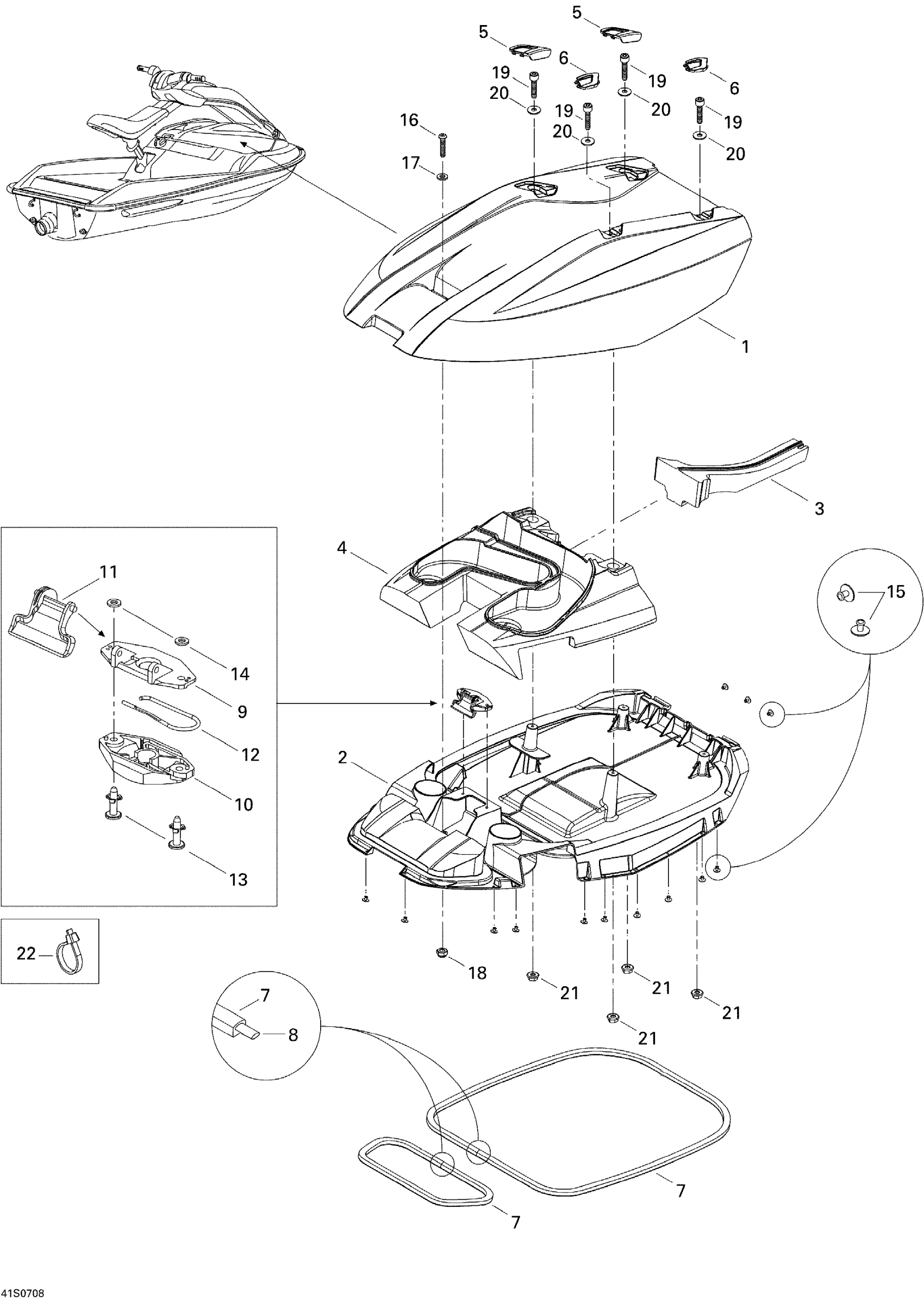

Sea-doo 3D 947 DI, 2007 09- Engine Cover Diagram

UPPER ENGINE COVER, VIPER RED - Call your local BRP dealership

Lower Engine Cover

FRONT VENTILATION BAFFLE - Call your local BRP dealership

REAR VENTILATION BAFFLE - Call your local BRP dealership

LH BOLT COVER, VIPER RED - Call your local BRP dealership

RH Bolt Cover, Viper Red

Was 293200017 Neoprene Seal

Vinyl Tubing, Low Temp 3000Mm Long

Latch Ass'y

Latch Ass'y

Latch Ass'y

Latch Spring

RIVET 1/4 X 5/8 - Call your local BRP dealership

Stainless Flat Washer M6

Pop Rivet 3/16”

SOCKET SCREW M5 X 25 - Call your local BRP dealership

Flat Washer 5 mm, Stainless

Hex. Elastic Nut M5 | X

Socket Head Screw M6 X 25, Scotch Grip

Flat Washer M6, Stainless

Hex. Flange Nut M6

Tie-Rap 180 mm
